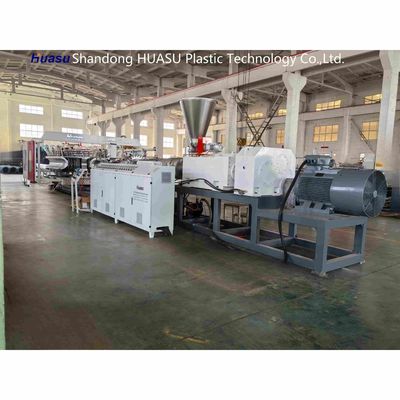

Customizable Double Wall Corrugated Pipe Extrusion Machine PVC Pipe Extrusion Line
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Power | 200-1000kw | Min.pipe Diameter | 32-800mm |
|---|---|---|---|
| Max.pipe Diameter | 180-1600mm | Terms Of Payment | LC, T/T |
| Main Extruder | Conical Double Screw Extruder | Usage Of Pipe | Sewage,Drainage,water Disposal,electrical Wire Pipe |
| International Commercial Terms(Incoterms) | EXW, FOB, CFR, CIF | Output | 500-2000Kg/H |
| Highlight | Customizable PVC Pipe Extrusion Line,double Wall PVC Pipe Extrusion Line,Corrugated PVC plastic pipe extrusion line |
||
Product Description
Customizable double Wall Corrugated Pipe Extrusion Machine ,PVC Pipe Extrusion Line
Product Description:
The corrugated pipe line is the 3rd generation of improved product of Shandong HUASU. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.
Online belling can be achieved to ensure the performance of the formed corrugated pipe products. Adopts Siemens PLC system.
Features:

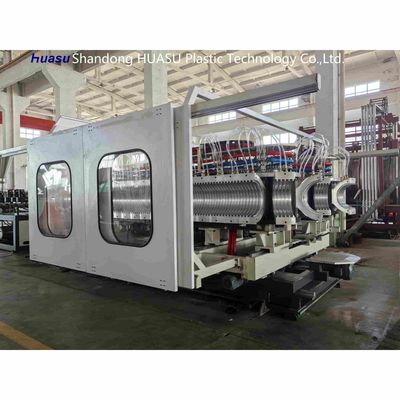

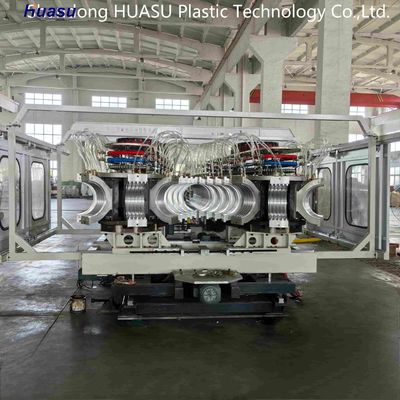

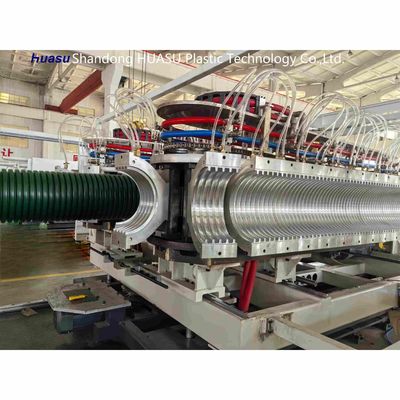

The newly designed closed molding machine adopts a special high-efficiency cooling system for forming aluminum modules, which greatly improves the cooling efficiency in the production of corrugated pipe products.
High-speed, high-output single-screw extrusion machine supporting a professional design of the corrugated pipe extrusion mould to achieve large-scale stable extrusion.
Good interchangeability of the module; the aluminum forming module uses LY12 high-quality alloy aviation aluminum material with copper content ≥ 5%, precision pressure casting process, high density material, no light pores, long-term use is not easily deformed. Can customize various module waveform schemes according to the user’s requirements.
Supporting automatic DWC cutter, computer control, accurate cutting position, stable running, and easy to operate.
Technical Parameters:
| Attribute | Value |
|---|---|
| Usage Of Pipe | Sewage, Drainage, Water Disposal, Electrical Wire Pipe |
| Terms of Payment | LC, T/T |
| Output | 500-2000Kg/H |
| Main Extruder | Conical Double Screw Extruder |
| Min. Pipe Diameter | 32-800mm |
| Total Power | 200-1000kw |
| International Commercial Terms(Incoterms) | EXW, FOB, CFR, CIF |
| Max. Pipe Diameter | 180-1600mm |
Applications:
When considering the application occasions and scenarios for the HUASU SBG PVC Pipe Extrusion Line, it is important to note its wide range of capabilities and attributes. This high-speed PVC corrugated pipe extruder is suitable for various industries and projects that require efficient and reliable pipe production.
The HUASU SBG PVC Pipe Extrusion Line, originating from China, is designed to meet international standards with certifications such as CE, ISO, UL, QS, and GMP. This ensures that the product is of high quality and adheres to strict manufacturing guidelines.
