High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production

High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production

Production PVC Pipe Extrusion Line

Smooth PVC Pipe Extrusion Line

Smooth Manufacturing pvc pipe production line

Brand Name:

HUASU

Certification:

CE,ISO,UL,QS,GMP

Model Number:

SBG

Contact Us
Request A Quote
High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production
High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production
Product Details
Finished Product:
Drainage Pipe,municipal Engineering,underground Sewage Pipe,electric Cable Conduit
Production Line Feature:
High Productivity,competitive Price,Energy Saving,Automatic
Capacity:
60-2000kg/h
Product Type:
PVC/PE Corrugated Pipe Extrusion Machine
Processing Procedure:
Raw Material Feeding In Screw Extruder, Shaping In Forming Machine ,Water Cooling Tank Cooling,online Cut By Cutting Machine
Cooling Way:
Air Or Water
Pipe Diameter:
32-1600mm
Plastic Raw Material Processed:
PVC /PE /MPP/PA/HDPE
Highlight:

Production PVC Pipe Extrusion Line

,

Smooth PVC Pipe Extrusion Line

,

Smooth Manufacturing pvc pipe production line

Payment & Shipping Terms
Minimum Order Quantity
1 Line
Price
USD10k-1000k
Packaging Details
STANDARD Package
Delivery Time
90day
Payment Terms
TT,LC
Supply Ability
100 Line
RELATED PRODUCTS
Good price Customizable PVC Corrugated Pipe Manufacturing Line with 60-2000kg/h Capacity and 32-1600mm Pipe Diameter for Online Belling online Video

Customizable PVC Corrugated Pipe Manufacturing Line with 60-2000kg/h Capacity and 32-1600mm Pipe Diameter for Online Belling

Get Best Price
Good price 32-1600mm Automatic PVC Pipe Extrusion Line with Siemens PLC System for Double Wall Corrugated Pipe Production online Video

32-1600mm Automatic PVC Pipe Extrusion Line with Siemens PLC System for Double Wall Corrugated Pipe Production

Get Best Price
Good price 60-2000kg/h Capacity 32-1600mm Pipe Diameter PVC Corrugated Pipe Extrusion Machine With Online Cutting Procedure online Video

60-2000kg/h Capacity 32-1600mm Pipe Diameter PVC Corrugated Pipe Extrusion Machine With Online Cutting Procedure

Get Best Price
Good price High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production online Video

High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production

Get Best Price
CONTACT US
Contact Now
Product Description
Upgrade Production PVC Pipe Extrusion Line For Smooth Manufacturing
Enhanced PVC Pipe Extrusion Line
Our double wall corrugated pipe line represents the 3rd generation of improved products from Shandong HUASU, delivering significant performance enhancements with 20-40% increased extruder output and production speed compared to previous models.
Features integrated online belling capability to ensure optimal performance of formed corrugated pipe products, supported by Siemens PLC system for reliable automation.
Key Features

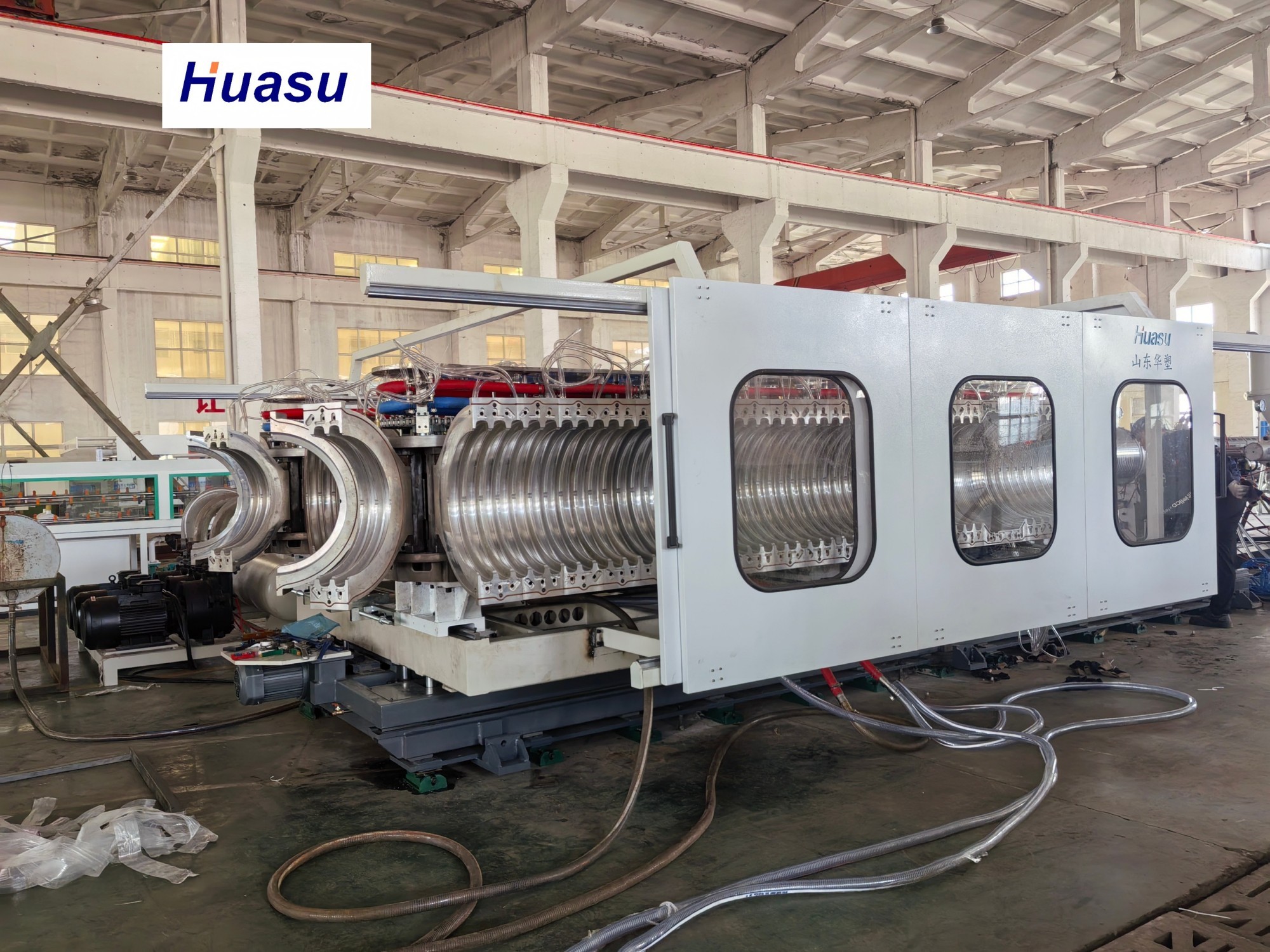

  • Advanced Cooling System: Newly designed closed molding machine with special high-efficiency cooling for aluminum modules, significantly improving cooling efficiency in corrugated pipe production
  • High-Performance Extrusion: High-speed, high-output single-screw extrusion machine with professional corrugated pipe extrusion mould design for large-scale stable extrusion
  • Premium Module Construction: Aluminum forming modules utilize LY12 high-quality alloy aviation aluminum with ≥5% copper content, precision pressure casting process, high-density material free from light pores, ensuring long-term deformation resistance
  • Customizable Solutions: Ability to customize various module waveform schemes according to user requirements

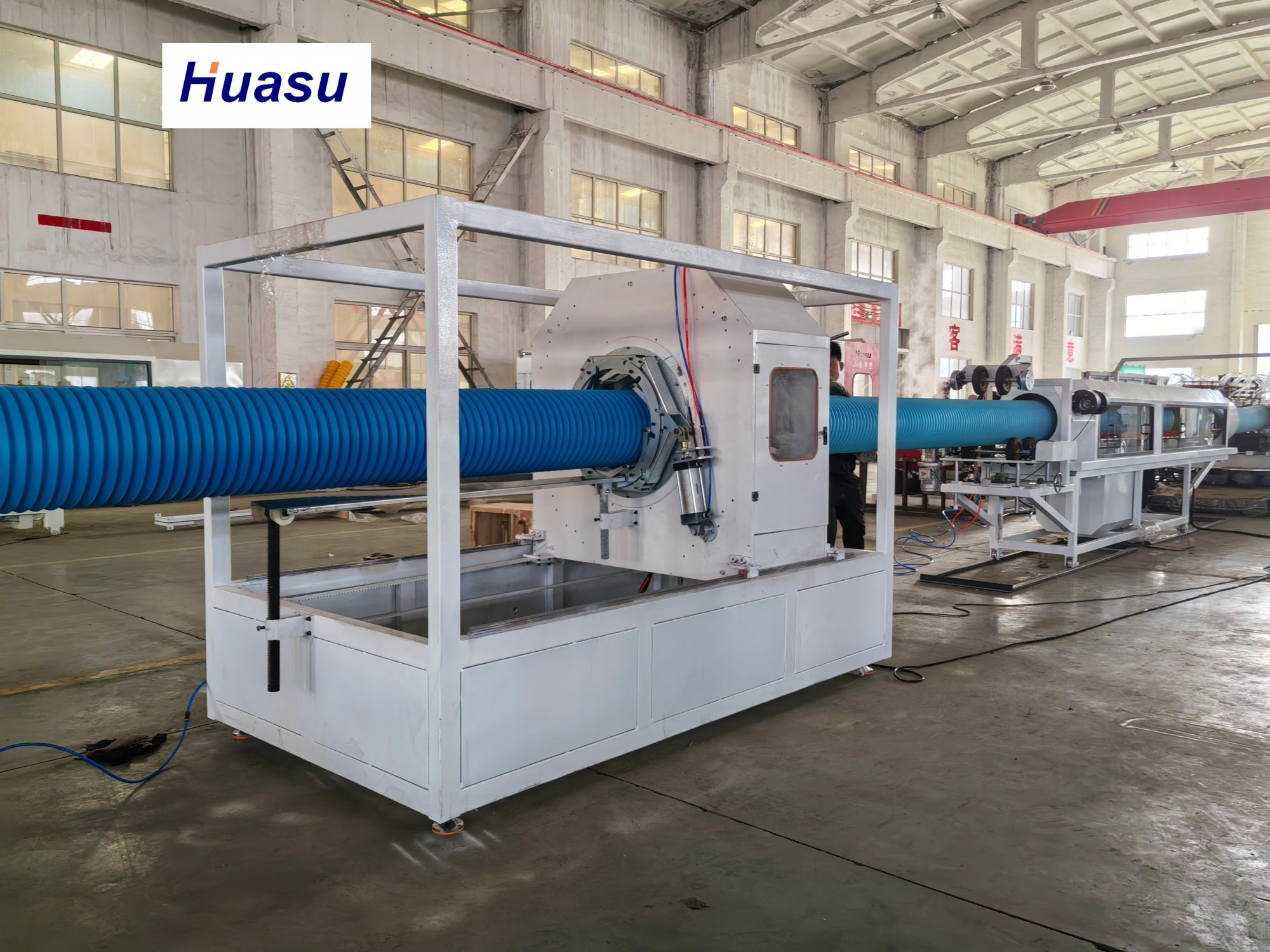

  • Precision Cutting: Supporting automatic DWC cutter with computer control for accurate cutting position, stable operation, and easy operation
Technical Specifications
Parameter Specification
Capacity 60-2000kg/h
Pipe Diameter 32-1600mm
Production Line Features High Productivity, Competitive Price, Energy Saving, Automatic
Finished Products Drainage Pipe, Municipal Engineering, Underground Sewage Pipe, Electric Cable Conduit
Cooling Method Air or Water
Plastic Raw Materials PVC/PE/MPP/PA/HDPE
Product Type PVC/PE Corrugated Pipe Extrusion Machine
Processing Procedure Raw Material Feeding In Screw Extruder, Shaping In Forming Machine, Water Cooling Tank Cooling, Online Cut By Cutting Machine
Applications
Our Plastic Pipe Making Machine is engineered for manufacturing plastic pipes used in water supply systems, water drainage applications, and electric cable conduits. This versatile and efficient equipment is essential for producing high-quality plastic pipes required in plumbing systems, construction projects, and infrastructure development.
