800mm Extrusion Line for Double Wall Corrugated Pipe Drainage / Sewege / Cable Duct / Electric Conduit / Fresh Air Ventilation Pipe
| Brand Name | HUASU |
|---|---|
| Certification | CE,ISO |
| Model Number | SBG- |
| Minimum Order Quantity | 1 SET |
| Price | 10K-1M |
| Packaging Details | Container Standard Packaging |
| Delivery Time | 60-90days |
| Payment Terms | T/T |
| Supply Ability | 100SET/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Productivity,competitive Price,Energy Saving,Automatic | Control System | PLC Control System And Touch Screen |
|---|---|---|---|
| Plastic Raw Material Processed | PVC /PE /MPP/PA/HDPE | Electric Element | Siemens Brand |
| Application | Drainage/Sewege/Cable Duct/Electric Conduit/Fresh Air Ventilation Pipe | Rocessing Procedure | Raw Material Feeding In Screw Extruder, Shaping In Forming Machine ,Water Cooling Tank Cooling,online Cut By Cutting Machine |
| Product Type | Double Wall Corrugated Pipe Extrusion Line | Pipe Diameter | 32-1600mm |
Product Description

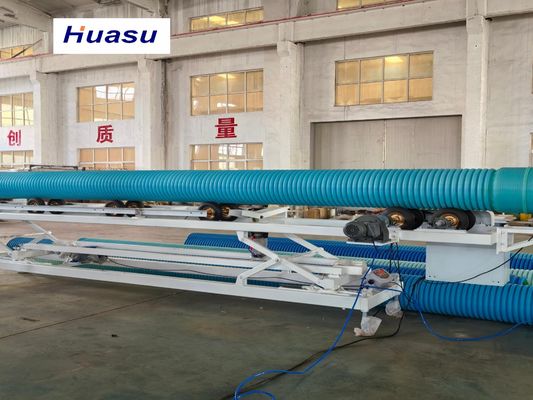

800mm Extrusion Line for Double Wall Corrugated Pipe Drainage / Sewege / Cable Duct / Electric Conduit / Fresh Air Ventilation Pipe
Product Description:
The double wall corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.
Online belling can be achieved to ensure the performance of the formed corrugated pipe products. The production line adopts Siemens PLC system for efficient control and management.
Features:
Pressure water-cooling for mould blocks greatly increases the production speed.
Low energy consumption helps to cut production cost.
Efficient vacuum system is utilized for forming perfect pipes.
Mould block temperature control system aids in optimizing the pipe quality, both externally and internally.
Easy and quick changeover between different sizes of moulds is facilitated, with toolings (moulds) compatible with various production lines.
The complete extrusion line operates fully automatically.
Corrugators and extruders are synchronously controlled.
The screw and barrels are treated for hardness to extend their lifespan and improve durability.
Remote Service is available.
Technical Parameters:
| Application | Drainage/Sewege/Cable Duct/Electric Conduit/Fresh Air Ventilation Pipe |
|---|---|
| Control System | PLC Control System And Touch Screen |
| Features | High Productivity,competitive Price,Energy Saving,Automatic |
| Finished Product | Drainage Pipe,municipal Engineering,underground Sewage Pipe,electric Cable Conduit |
| Pipe diameter | 32-1600mm |
| Processing procedure | Raw Material Feeding In Screw Extruder, Shaping In Forming Machine, Water Cooling Tank Cooling, online Cut By Cutting Machine |
| Product Type | Double Wall Corrugated Pipe Extrusion Line |
| Capacity | 60-2000kg/h |
| Electric Element | Siemens Brand |
| Plastic Raw Material processed | PVC /PE /MPP/PA/HDPE |
Applications:
Our Plastic Pipe Making Machine is built for the production of plastic pipes used in water supply, drainage systems, and electric cable conduits. It is meticulously designed to manufacture top-notch plastic pipes that comply with the standards for a range of purposes, including water transportation, drainage facilitation, and electrical cable protection.
