Exturding Machine DWC Pipe Extrusion Line with Energy Saving Features
| Brand Name | HUASU |
|---|---|
| Certification | CE,ISO |
| Model Number | SBG- |
| Minimum Order Quantity | 1 SET |
| Price | 10K-1M |
| Packaging Details | Container Standard Packaging |
| Delivery Time | 60-90days |
| Payment Terms | T/T |
| Supply Ability | 100SET/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Productivity,competitive Price,Energy Saving,Automatic | Processing Type | Exturding Machine |
|---|---|---|---|
| Power | 380 V X 50 Hz X 3 Phase | Corrugator Type | Horizontal |
| Applicable Industries | Manufacturing Plant | Application | Drainage/Sewege/Cable Duct/Electric Conduit/Fresh Air Ventilation Pipe |
| Procedure | Raw Material Feeding In Screw Extruder, Shaping In Forming Machine ,Water Cooling Tank Cooling,online Cut By Cutting Machine | Plastic Machine | Double Wall Corrugated Pipe Extrusion Line |
Product Description
Product Description:

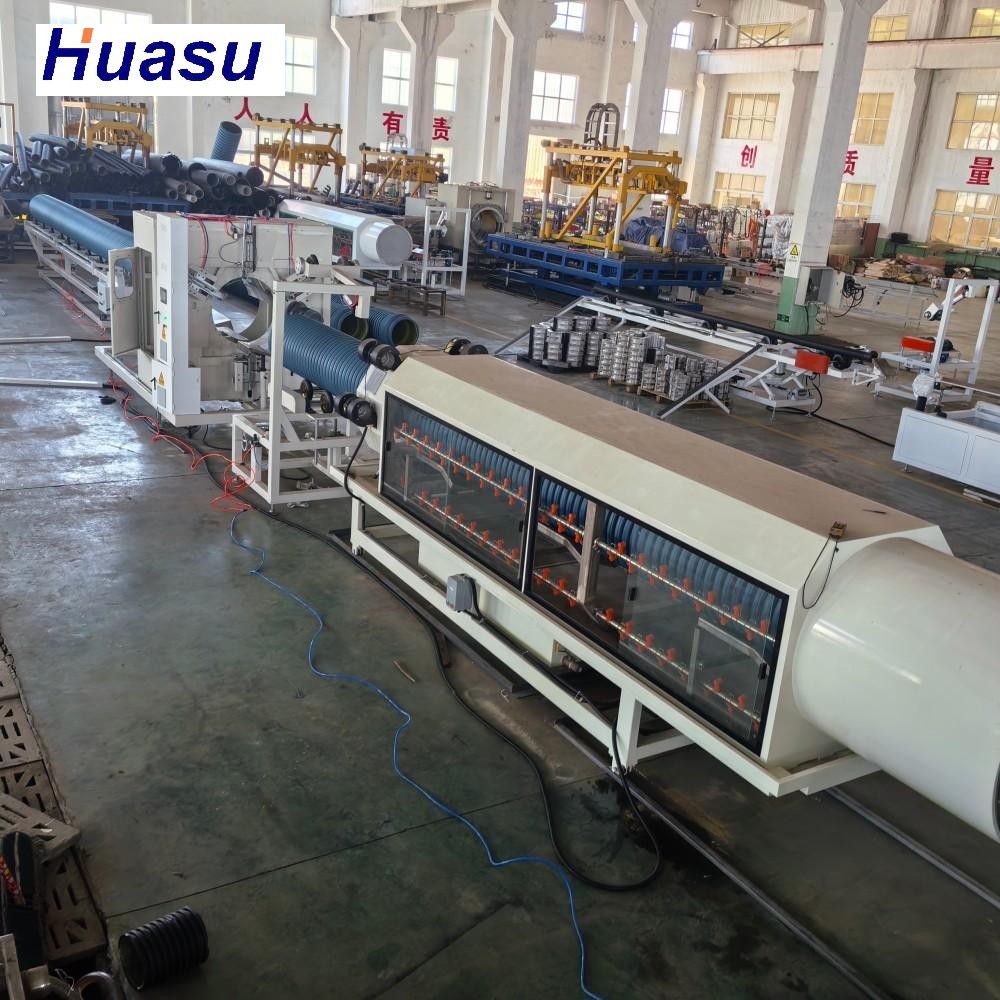

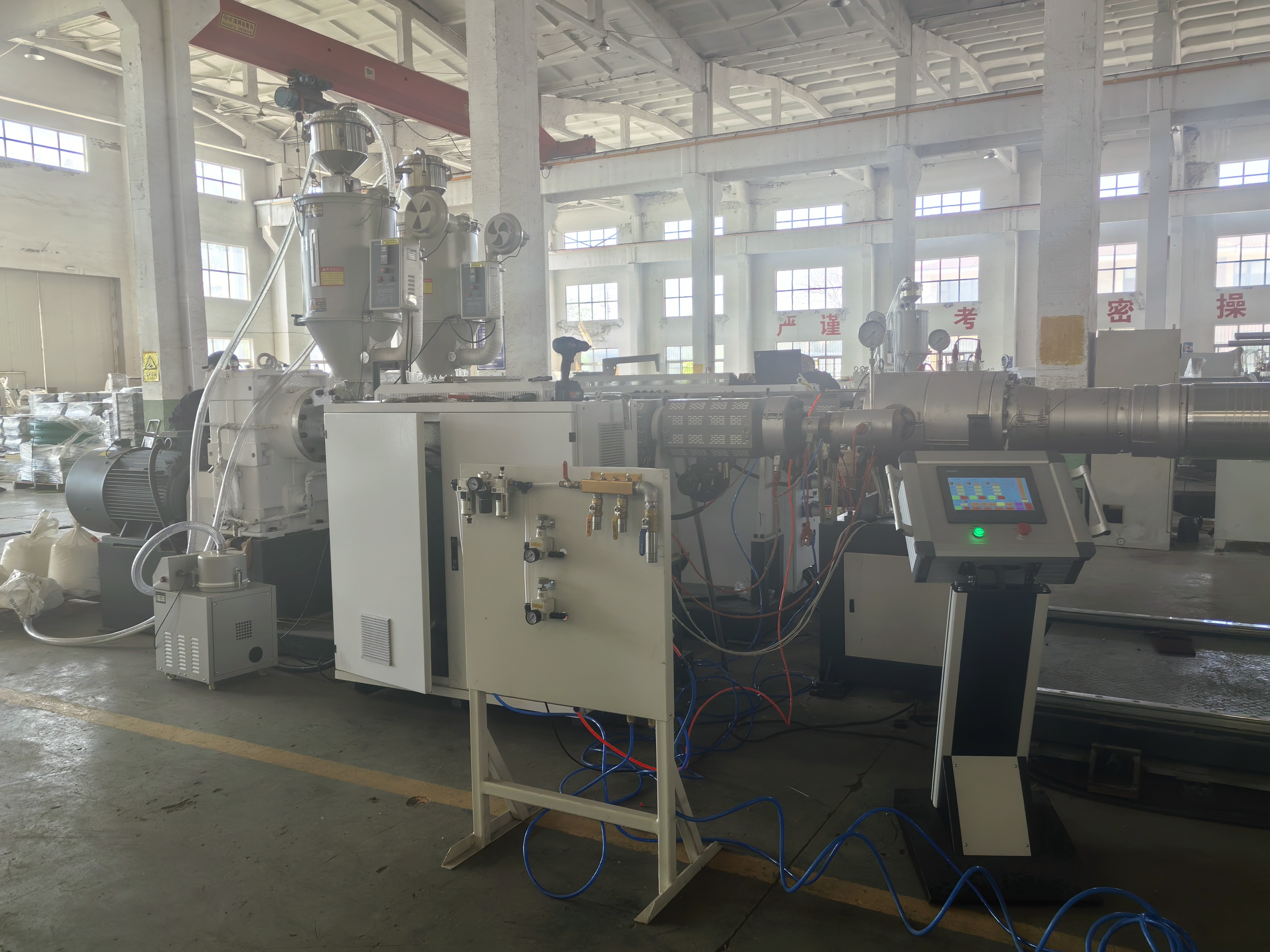

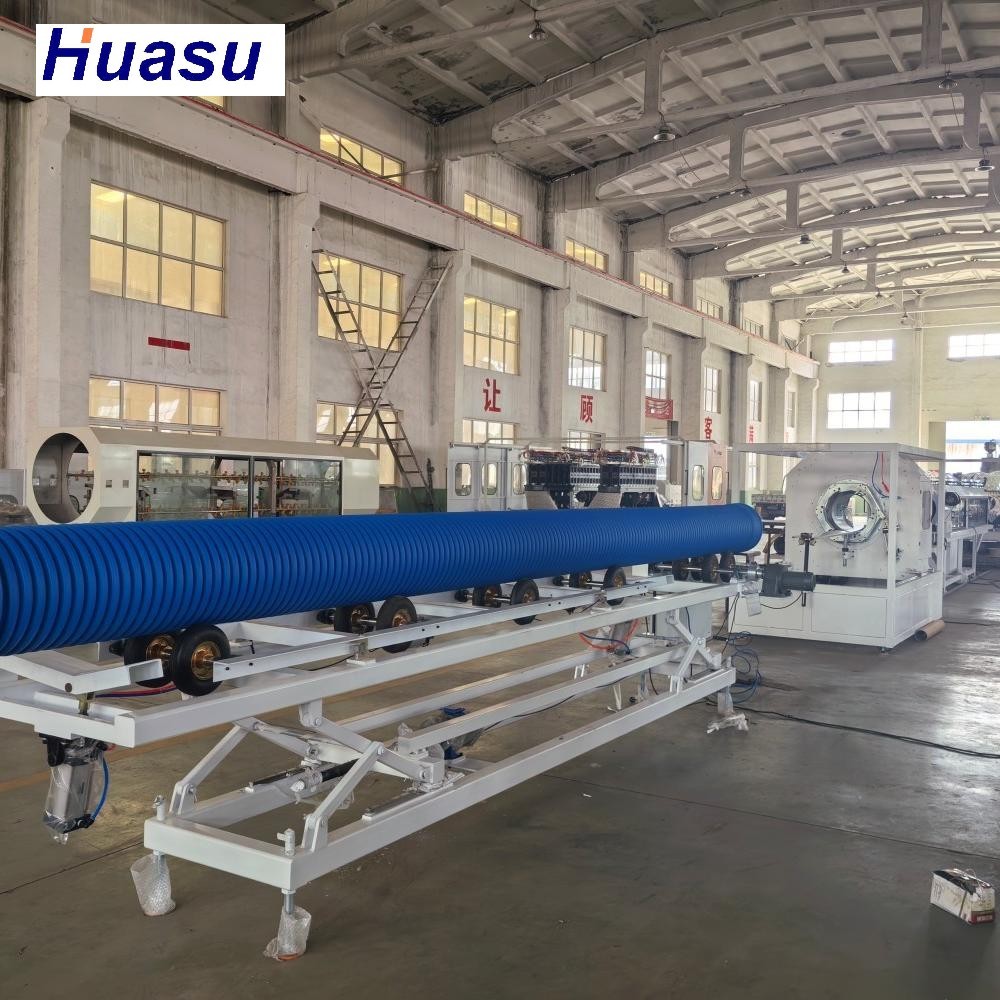

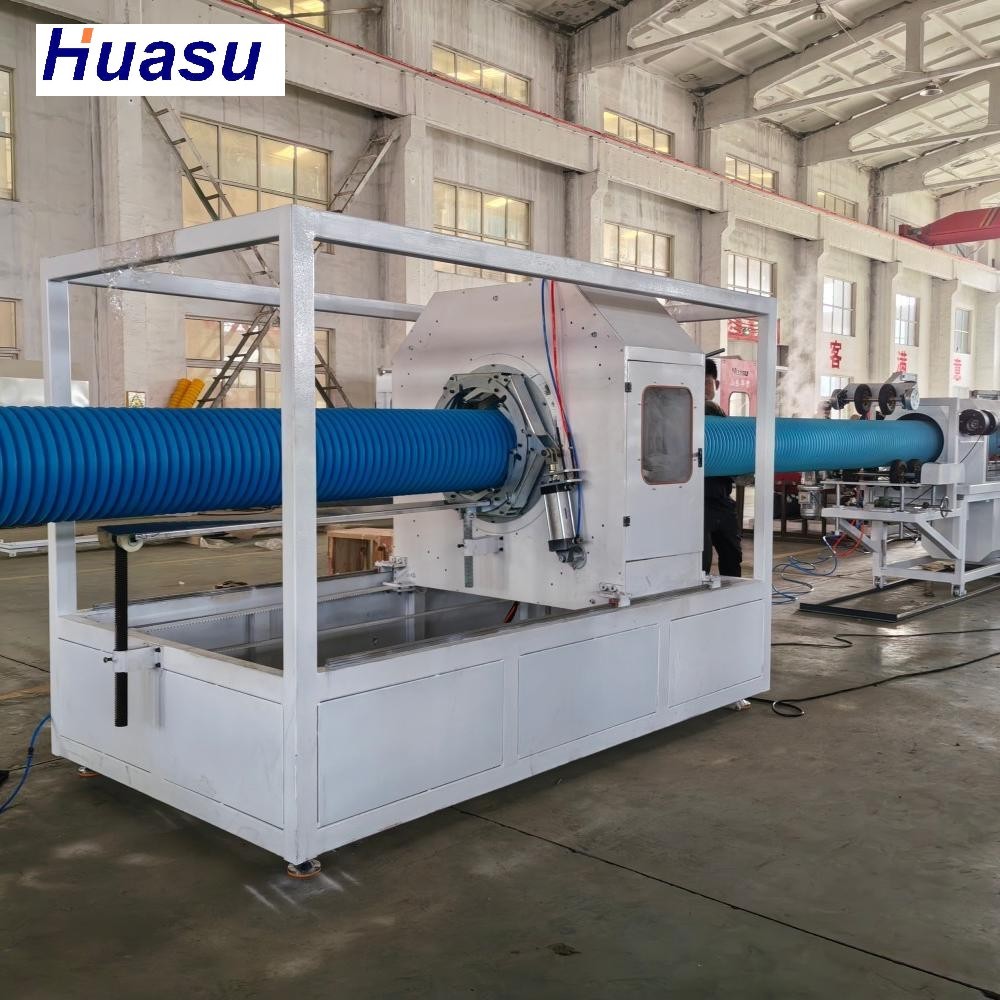

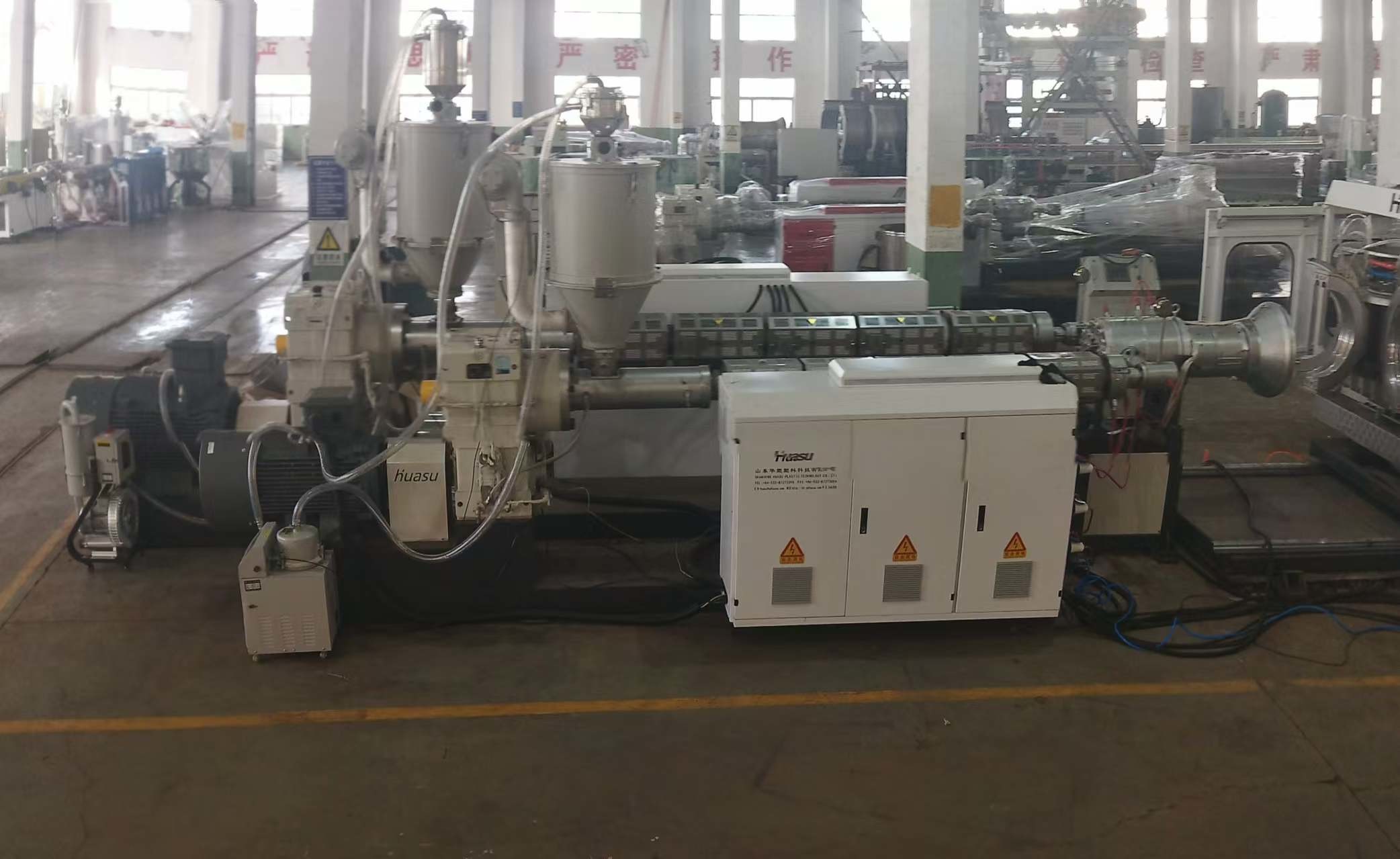

The double wall corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU.
The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.
Online belling can be achieved to ensure the performance of the formed corrugated pipe products.
The production line adopts Siemens PLC system for efficient control and management.
Features:
Enhanced Pipe Production Line Features
Pressure water-cooling is employed to effectively chill the mould blocks, significantly boosting production speed.
Efficient energy utilization results in low energy consumption, aiding in the reduction of production costs.
An efficient vacuum system ensures the formation of flawless pipes.
The temperature control system for mould blocks contributes to the optimization of pipe quality, both in appearance and internal composition.
Facilitates quick and easy transition between different mould sizes, with toolings compatible across various production lines.
The entire extrusion line operates fully automatically, enhancing workflow efficiency.
The corrugator and extruders are synchronized for seamless control and production coordination.
Screws and barrels are treated with hardening for extended longevity and durability.
Remote service accessibility is provided for easy troubleshooting and maintenance support.
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Applicable Industries | Manufacturing Plant |
| Pipe Material | PVC / PE / MPP / PA / HDPE |
| Finished Products | Drainage Pipe, municipal Engineering, underground Sewage Pipe, electric Cable Conduit |
| Processing Type | Extruding Machine |
| Procedure | Raw Material Feeding In Screw Extruder, Shaping In Forming Machine, Water Cooling Tank Cooling, online Cut By Cutting Machine |
| Features | High Productivity, competitive Price, Energy Saving, Automatic |
| Corrugator Type | Horizontal |
| Application | Drainage / Sewage / Cable Duct / Electric Conduit / Fresh Air Ventilation Pipe |
| Electric Element | Siemens Brand |
| Extruder Output | 60-2000kg/h |
Applications:
Our Plastic Pipe Making Machine is specially designed to produce plastic pipes used in water supply, drainage, and electric cable conduits.
The machine is precision-engineered to produce high-quality plastic pipes that meet standards for various purposes, such as water transportation, facilitating drainage systems, and protecting electric cables.
