Company Profile:
Qingdao HUASU Machinery Fabricate Co., Ltd is located in Jiaozhou Bay Industrial Zone of Jiaozhou in Qingdao City, and it is only 30 kilometers away from Qingdao Airport.The company covers an area of 30,000 square meters, with current building area of 18,000 square meters. It has very strong technical support and innovating ability. With advanced technology, new material and mature technological process, the company can produce various kinds of plastic extrusion lines. The machines have been exported to European Countries, Russia, South America, Middle East, Southeast Asia, Oceania and Africa countries, etc.
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years. In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.
Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
Qingdao HUASU machinery fabricate Co., Ltd owns advanced processing and manufacturing capabilities and brings in more than 50 sets of machining center from America, Japan, Korea, etc, which assure the product accuracy. With a concept of "Win By Technology", HUASU is willing to supply great quality and fine finished corrugated pipe machines and other plastic pipe extruder to both domestic and foreign customers. We struggle for helping our customers to win maximum profit with high technology and amusing efficiency products.
HUASU company is willing to develop and cooperate with customers from all over the world hand in hand for the bright future
Qingdao HUASU Machinery Fabricate Co., Ltd is located in Jiaozhou Bay Industrial Zone of Jiaozhou in Qingdao City, and it is only 30 kilometers away from Qingdao Airport.The company covers an area of 30,000 square meters, with current building area of 18,000 square meters. It has very strong technical support and innovating ability. With advanced technology, new material and mature technological process, the company can produce various kinds of plastic extrusion lines. The machines have been exported to European Countries, Russia, South America, Middle East, Southeast Asia, Oceania and Africa countries, etc.
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years. In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.
Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
Qingdao HUASU machinery fabricate Co., Ltd owns advanced processing and manufacturing capabilities and brings in more than 50 sets of machining center from America, Japan, Korea, etc, which assure the product accuracy. With a concept of "Win By Technology", HUASU is willing to supply great quality and fine finished corrugated pipe machines and other plastic pipe extruder to both domestic and foreign customers. We struggle for helping our customers to win maximum profit with high technology and amusing efficiency products.
HUASU company is willing to develop and cooperate with customers from all over the world hand in hand for the bright future
Details:
Plastic Flexable single wall corrugated pipes produced have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc. This pipe has large market.
Flexable Single wall corrugated pipe extrusion line:
Designed and developed by Qingdao HUASU Machinery Fabricate Co., Ltd adopt newest design concept, using well known brand electrical components, enhanced line stability which can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously, as well as PA corrugated pipes. This pipe extrusion machine adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.

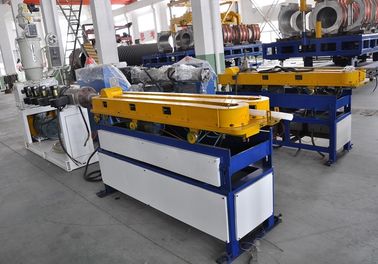

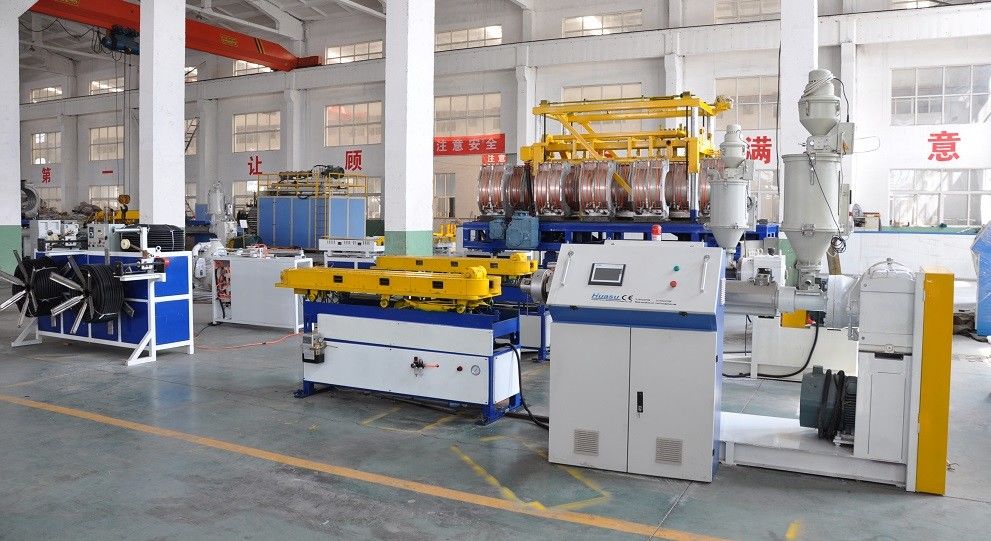

This Flexable corrugated pipe extrusion line mainly contains extruder, corrugated forming machine, mold blocks, cooling equipment, counting machine and winding machine. It can continuously produce many kinds of diameter single wall corrugated pipe.
Extruder:
It has high speed high efficiency screw, hard gear surface, FUJI invertor.This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.
Corrugator:

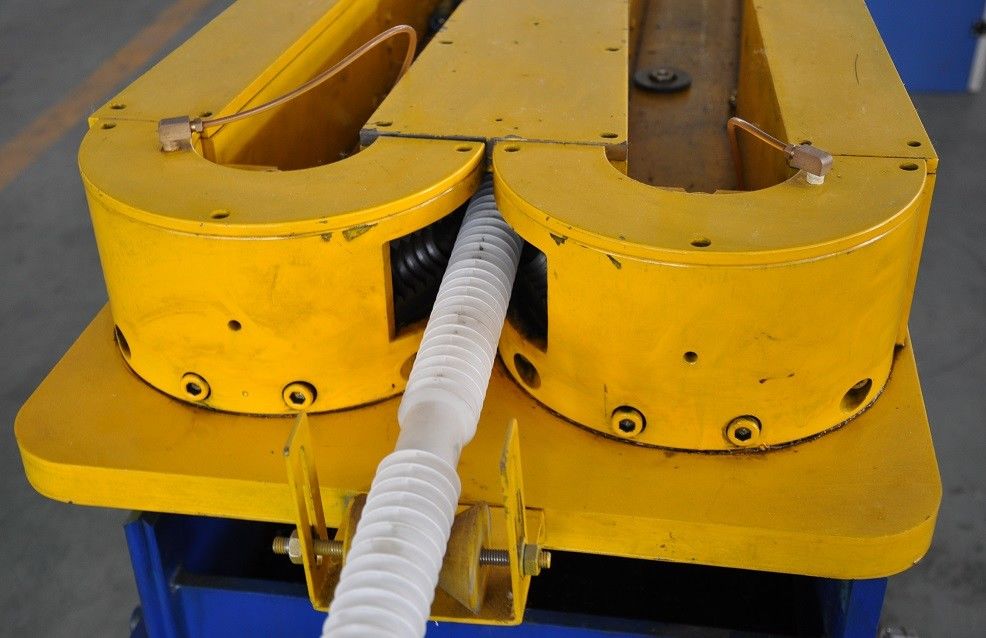

Close structure. Mold blocks through the gear transmission. Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures high speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.
Mold block:
The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable.
Main technical parameter:
| Diameter Scope |
OD 16-50 mm |
| Main Extruder |
SJ-55 |
| L/D |
30:1 |
| Output kg/h (kg/h) |
80 |
| Main Motor (KW) |
22 |
| Corrugator Power (KW) |
2.2 |
| Mould Block Pairs |
70 |
| Cooling Type |
Water and Air Cooling |
| Line Speed (m/min) |
0-25 |
| Counting Type |
Sensing counting |
| Winding Type |
Automatic/Manual |
