|Place of Origin:||QINGDAO, CHINA|
|Minimum Order Quantity:||1 Line|
|Price:||USD 300-200000 PER SET|
|Packaging Details:||THE PACKING IS SUITABLE FOR OCEAN TRANSPORT|
|Delivery Time:||2-4 SETS PER MONTH|
|Supply Ability:||40-60 WORKING DAYS|
|Plastic Processed:||PE||Screw Design:||Single-screw|
|Automatic Grade:||Automatic||Place Of Origin:||Shandong, China (Mainland)|
|Weight:||According To The Model|
spiral pipe making machine,
plastic pipe extrusion line
Automatic HDPE Spiral Tube Plastic Pipe Extrusion Line With Single Screw Design
PE spiral CORRUGATED pipe
Has characteristics of light weight, high strength, corrosion resistance, anti-bend, and non-leaking, bypassing the obstacles and so on. This kind of pipe can substitutes iron pipe, rubber pipe and PE pipe (PE strengthen screw soft pipe, PE double wall corrugation pipe). These pipes are mainly applied in the field of agricultural irrigation protection of cable and ventilation and so on.
PE spiral CORRUGATED pipe extrusion line
Produced by Qingdao HUASU Machinery Fabricate Co., Ltd adapted to the development trend. This pipe line has many advantages such as high production speed, high degree automation, stable working performance, large output and high efficiency and so on. It mainly applied in the field of protection of cable and ventilation and so on.
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder →→ CORRUGATOR(foaming machine)→ haul-off machine → cutting machine → winder.
PE CORRUGATED spiral pipe production line mainly includes single screw extruder, die, mold block, CORRUGATOR(foaming machine) , haul-off machine, cuttingmachine and winding machine.
Single Screw Extruder:
Single screw extruder is especially used for polyethylene material which possesses effective plasticizing and high speed extrusion.
Standard designed spiral die head and reasonable channel are applicable to produce pipes with smooth inside and outside surface. The helix apportionment style shunt body and big flow space assure the melting material having enough staying time. Best design of low melting temperature caused in little internal pipe stress, smoothing inner and outer pipe surface.

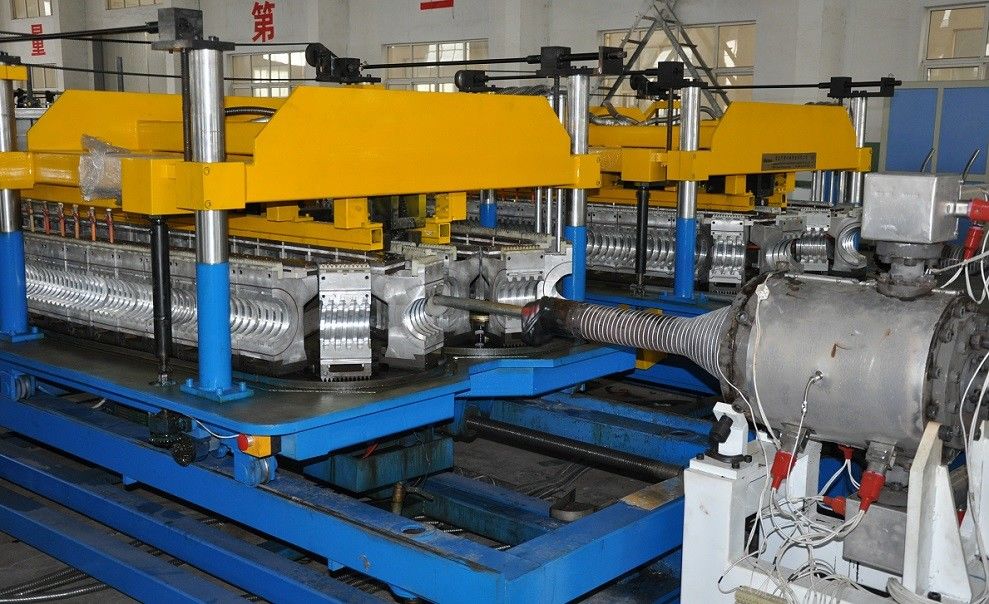

Corrugator is adopted horizontal structure with chain type transmission,equipped with open water cooling system and vacuum forming system. It greatly increases the production speed. The belling on line function decreases investment cost and improves production efficiency. Mold moving adopts synchronous upper and lower mechanical drive system and advanced self-lubrication system. It assures moving accuracy and corrugated pipe quality stability.
Frequency convertor, pneumatic clamping, and simultaneous running with the whole production line.
High accuracy, low noise and fixed length cutting.
Torque motor and gear reducer
PE Spiral CORRUGATED Pipe Extrusion Line Technical Parameter:
