Automatic Single Wall Corrugated Pipe Extrusion Machine , Single Screw Extruding Machine

Automatic Single Wall Corrugated Pipe Extrusion Machine , Single Screw Extruding Machine

  • Automatic Single Wall Corrugated Pipe Extrusion Machine , Single Screw Extruding Machine
  • Automatic Single Wall Corrugated Pipe Extrusion Machine , Single Screw Extruding Machine
Automatic Single Wall Corrugated Pipe Extrusion Machine , Single Screw Extruding Machine
Product Details:
Place of Origin: CHINA, HUASU
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SBG63
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USB 100-20000 PER SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 30-100 WORKING DAYS
Supply Ability: 2-4 SETS PER MONTH
Contact Now
Detailed Product Description
Power(W): 380V/3P/50HZ Name: Single Screw Extruder
Screw Design: Single-screw Extruding Machine Model Number: SJ
Inverter: ABB Automatic Grade: Automatic
High Light:

single wall corrugated pipe machine

,

corrugated pipe making machine

Details:



Plastic Flexable single wall corrugated pipes produced have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc. This pipe has large market.


Flexable Single wall corrugated pipe extrusion line:



Designed and developed by Qingdao HUASU Machinery Fabricate Co., Ltd adopt newest design concept, using well known brand electrical components, enhanced line stability which can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously, as well as PA corrugated pipes. This pipe extrusion machine adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.


This Flexable corrugated pipe extrusion line:

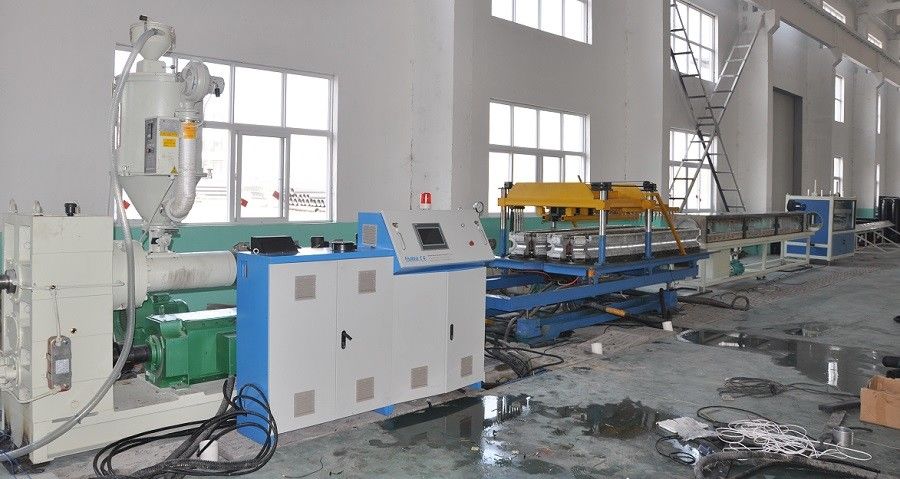

mainly contains extruder, corrugated forming machine, mold blocks, cooling equipment, counting machine and winding machine. It can continuously produce many kinds of diameter single wall corrugated pipe.


Extruder:



It has high speed high efficiency screw, hard gear surface, FUJI invertor.This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.

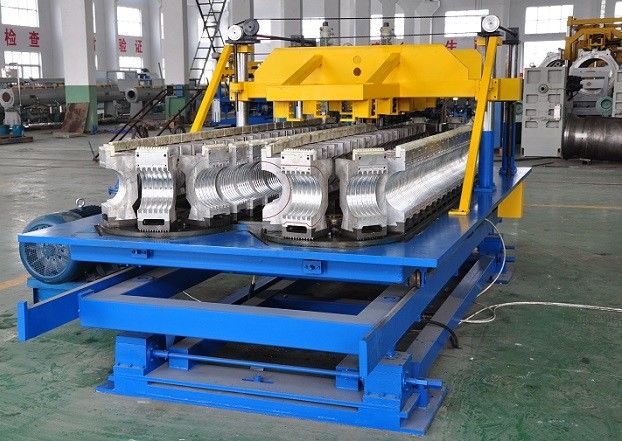

Corrugator:



Close structure. Mold blocks through the gear transmission. Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures high speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.


Mold block:



The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable.


Winder/Pipe Pressing Machine:



Moment motor, single/double station winder.





Main technical parameter:



Diameter Scope OD 16-50 mm
Main Extruder SJ-55
L/D 30:1
Output kg/h (kg/h) 80
Main Motor (KW) 22
Corrugator Power (KW) 2.2
Mould Block Pairs 70
Cooling Type Water and Air Cooling
Line Speed (m/min) 0-25
Counting Type Sensing counting
Winding Type Automatic/Manual
