Place of Origin: | QINGDAO CHINA |
Brand Name: | QINGDAO HUASU |
Certification: | CE IOS9001 |
Model Number: | SBG-250 |
Minimum Order Quantity: | 1SET |
---|---|
Price: | USD 19700.00-20000.00/set |
Packaging Details: | NORMAL PACKAGE |
Delivery Time: | 1-3 MONTHS |
Payment Terms: | L/C |
Supply Ability: | 150 SETS |
Name: | Corrugated Pipe Equipment | Product Type: | Single Wall Corrugated Pipe Extrusion Line |
---|---|---|---|
Product Name: | Corrugated Pipe Making Machinery | Temperature Controller: | Temperature Sensor |
Plastic Machine: | Corrugated Pipe Equipment | ||
High Light: | single wall corrugated pipe machine,corrugated pipe making machine |
Large Output High Speed PE Corrugated Pipe Extrusion Production Line
Description of Single Wall Corrugated Pipe Extrusion Line:
Diameter scope: (ID) Φ90-Φ250mm
Features of plastic single wall corrugated pipe:
Plastic single wall corrugated pipes produced have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc. This pipe has large market.
Single wall corrugated pipe extrusion line designed and developed by Qingdao HUASU Machinery Fabricate Co., Ltd adopt newest design concept, using well known brand electrical components, enhanced line stability which can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously, as well as PA corrugated pipes. This pipe extrusion machine adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.

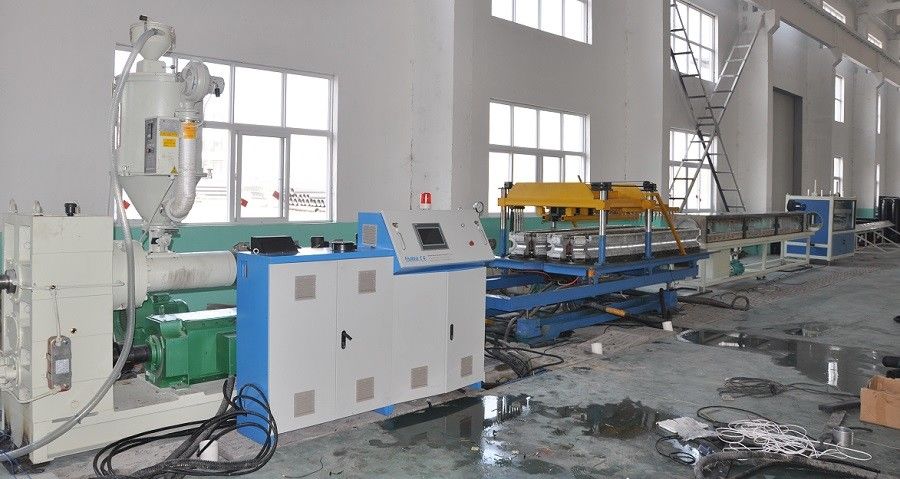

This corrugated pipe extrusion line mainly contains extruder, corrugated forming machine, mold blocks, cooling equipment, counting machine and winding machine. It can continuously produce many kinds of diameter single wall corrugated pipe.
Extruder: It has high speed high efficiency screw, hard gear surface, FUJI invertor.This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.

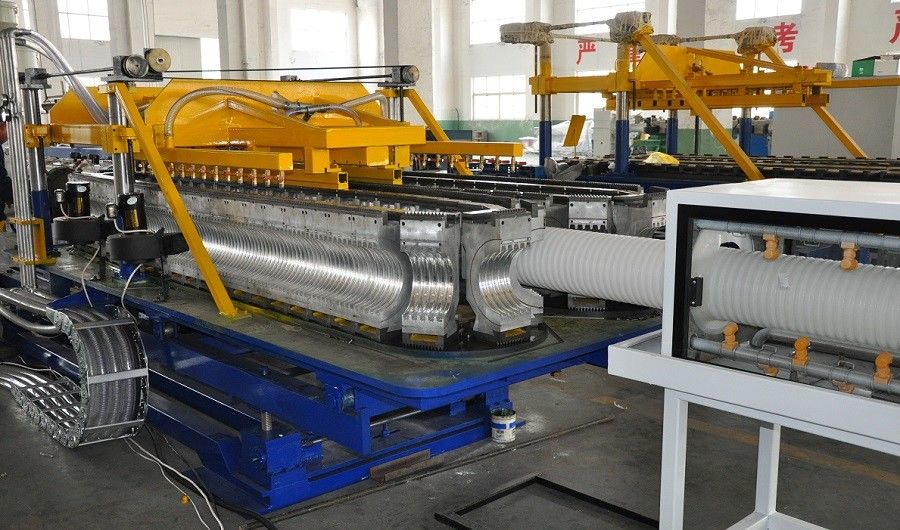

Corrugator: Close structure. Mold blocks through the gear transmission. Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures high speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.

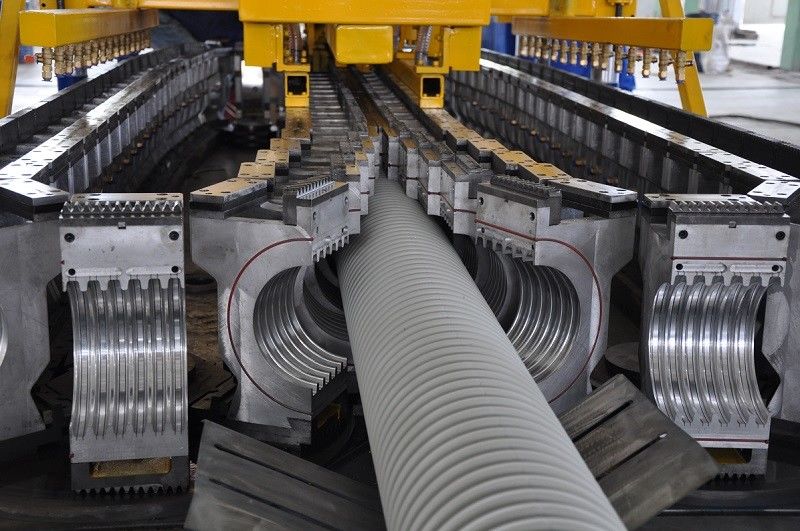

Mold block: The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable.

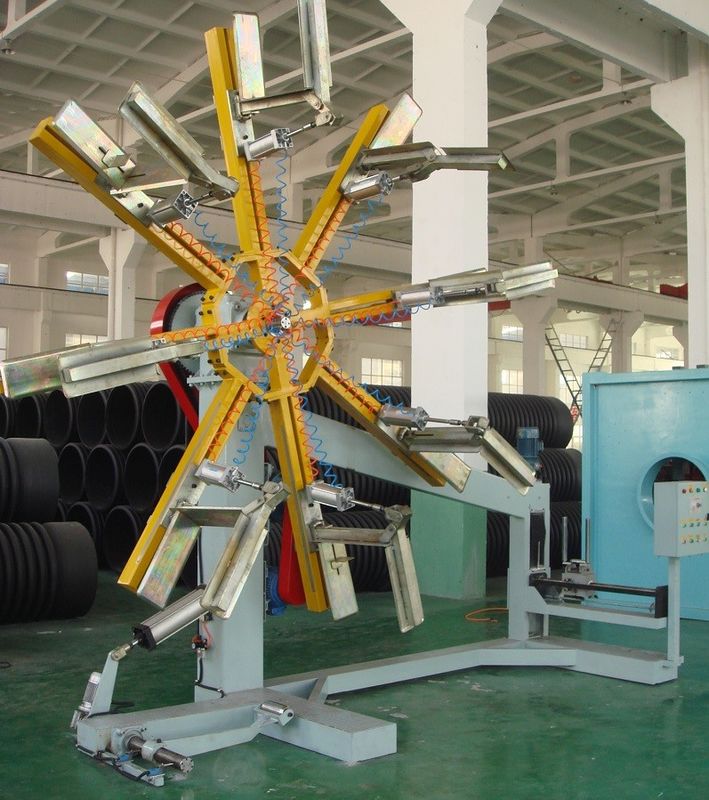

Winder: Moment motor, single/double station winder.
Main Technical Parameter:
Name | Model | Dimension (L×W×H)mm |
Total Power(kw) | Weight (kg) |
extruder | SJ90×30 | 3780×600×3000 | 110(max) | 6000 |
Mould Blocks (ID) |
90 | 2000×Φ326 | 50(max) | 1200 |
110 | 1500 | |||
160 | 1800 | |||
175 | ||||
200 | 2300×Φ440 | 2100 | ||
250 | 2300 | |||
corrugator | SBCJ250 | 4300×1750×1800 | 30(max) | 5000 |
cutter | QG250 | 2900×1400×2060 | 7.5 | 2500 |
Overturning bracket | JGJ250 | 5220×2100×830 |
230 |
