Place of Origin: | CHINA, HUASU |
Brand Name: | HUASU |
Certification: | CE, ISO9001 |
Model Number: | SBG 315-1000 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | USB 150-30000 PER SET |
Packaging Details: | NORMAL PACKAGE |
Delivery Time: | 30-100 WORKING DAYS |
Supply Ability: | 2-15 SETS PER MONTH |
Automatic Grade: | Fully Automatic | After-sales Service: | Engineers Available To Service |
---|---|---|---|
Weight: | According To The Model | Place Of Origin: | Shangdong , China (Mainland) |

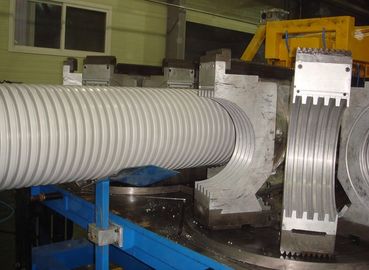

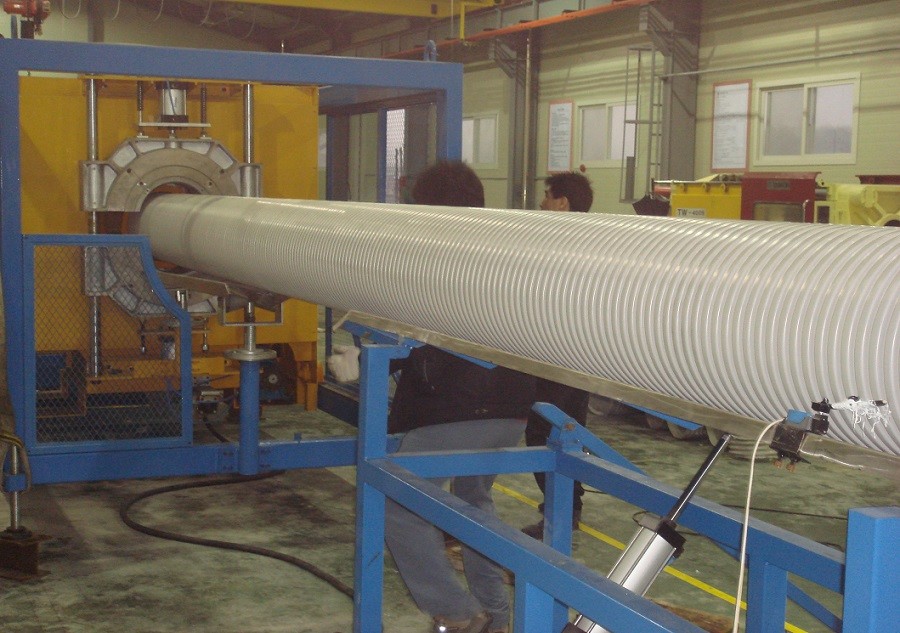

High Light: | double wall corrugated pipe production line,double wall corrugated pipe machinery |
HIGH CAPACITY PVC WATER PIPE EXTRUSION DOUBLE STRANDS DIAMETER 16-50MM
Process Flow:
Loader→Conical double-screw extruder→Mould→Vacuum forming water tank→Spraying cooling tank→Haul-off machine→reversible stacker
Auxiliary:Belling machine,Mixer,Miller,Crusher
Application:
PVC pipe is widely used in drainage system,irrigation,electric conduit and so on.
Machine introduction:
1. Screw and barrel could meet the request of your formula with higher proportion of Calcium carbonate.Higher proportion of calcium carbonate means lower cost but the screw and barrel must be higher quality.
2. Our machine adopts ABB inverter,Omron/Delixi temperature controller,Schneider contactor and Simens switcher.High quality electrical component could meet the request of durable running at higher temperature in the place such as Southeast Asia and Africa.
Our die-head designing gives ideal viscosity to melt material for pipe producing. It gives tube or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.
HUproduce single layer, two layer and multi layer pipe die-heads. Foil cover head. Over steel pipe plastic covering die-head and other special die-head.
HUASU Vacuum Tanks are manufactured with stainless steel.
Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.
With high power water pump, cooled water can reach to pipe completely.
Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement.
We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.
With the material we have used in our haul-offs, we have very good adhesion to the pipe and ensure slip prevented.
The needed speed for setting of pallets can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.
We manufacture haul-offs depending on pipe diameter from 2 pallets to 10 pallets.
Our haul-offs can work synchronously with pipeline. As the extruder speed increasing automatically, haul-offs speed is increased.
HUASU planetary saw cuts the pipe at designed length without any burr.
Cutting speed during the cutting is synchronous with the line speed by PLC, so accurate length is provided.
Pipe length to be cut is easily adjusted via the touch screen.
Pipe length measure by encode so desired length can cut precisely.
It operates on pneumatic cylinder.
SPECIFICATIONS:
MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
HS-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
HS32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
HS-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
HS-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
HS-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
HS-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
HS-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
HS-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
