Gas / Water Supply PP Pipe Extrusion Line , Corrugated Pipe Extruder CE IOS9001

Gas / Water Supply PP Pipe Extrusion Line , Corrugated Pipe Extruder CE IOS9001

  • Gas / Water Supply PP Pipe Extrusion Line , Corrugated Pipe Extruder CE IOS9001
  • Gas / Water Supply PP Pipe Extrusion Line , Corrugated Pipe Extruder CE IOS9001
  • Gas / Water Supply PP Pipe Extrusion Line , Corrugated Pipe Extruder CE IOS9001
Gas / Water Supply PP Pipe Extrusion Line , Corrugated Pipe Extruder CE IOS9001
Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: QINGDAO HUASU
Certification: CE IOS9001
Model Number: SRQG110
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 19000.00-20000.00/set
Packaging Details: NORMAL PACKAGE
Delivery Time: 5-8work days
Payment Terms: L/C,
Supply Ability: 150sets/year
Contact Now
Detailed Product Description
Plastic Pipe Extrusion Machine: Plastic Pipe Making Machinery After-sales Service Provided: Engineers Available To Service Machinery Overseas
Extruder: Gas/Water Supply Pipe Extrusion Line Cooling Way: Water Cooling
High Light:

pp pipe machine

,

pp pipe welding machine

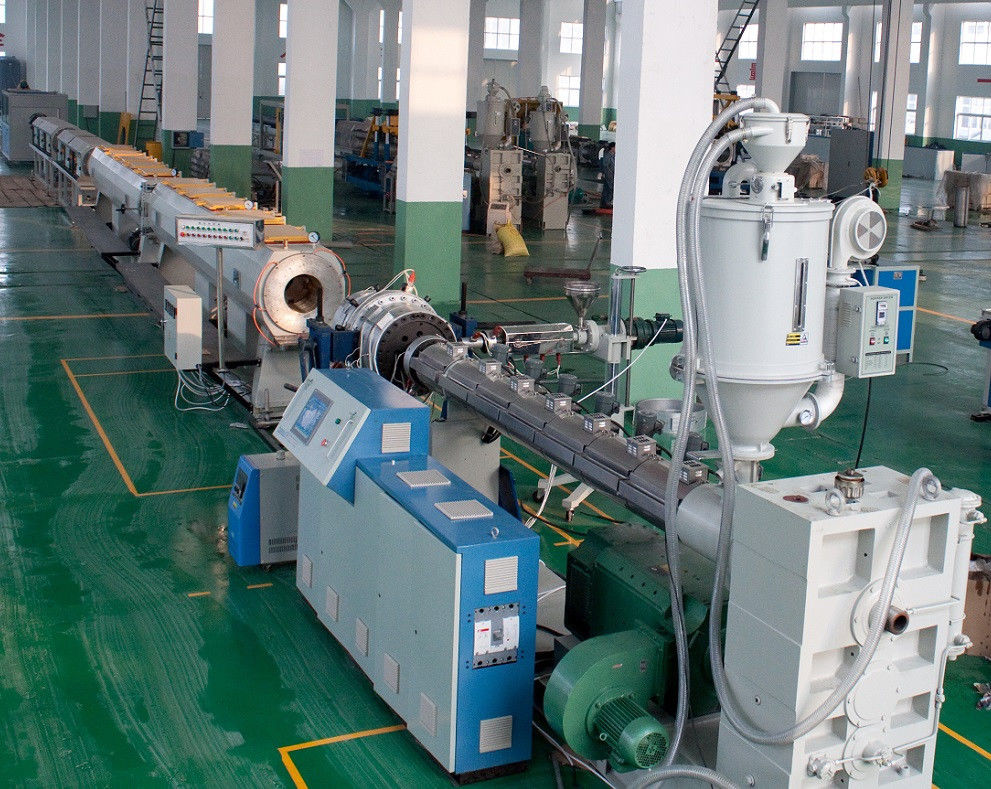

Gas / Water Supply PP Pipe Extrusion Line , Corrugated Pipe Extruder CE IOS9001 0Extruder: HDPE/MDPE pipe extrusion line adopts high speed and efficiency of single screw extruder. The screw has barrier unit, special material mixing components and new style of barrel grooves. The extruder is equipped with low noise fan, ceramic heating ring, high speed hard gear reducer, full-automatic vacuum loader. This configuration assures good plasticization and mixing effect. It also assures high speed, stable production and great output.
Pipe Marking Line: It is extruded by single screw extruder SJ30/25 through the composited extrusion die.

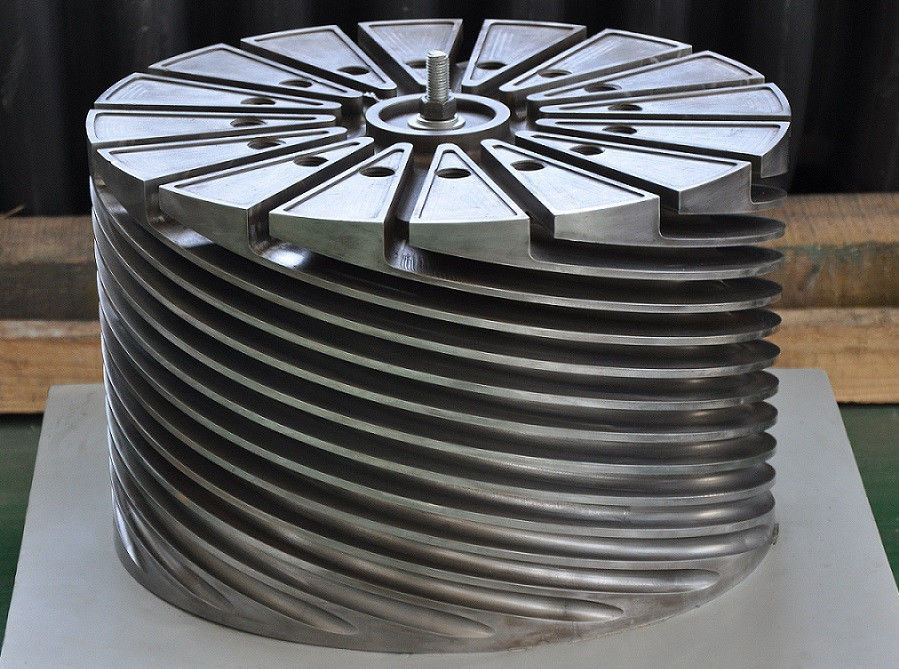

Die Head: The material of the die head is high quality 40Cr. It is the most advanced spiral or lattice die head in the world, which assures stable extrusion in the production process. In order to fit the performance of PE material and assure the stability of pipe diameter and roundness when producing thick-wall pipe with high speed, we adopt water film lubricating and water (or oil) circulation cooling.
Vacuum Calibrating Water Tank: The body is made of high hardness and good quality stainless steel board. It has advanced water circulation and high pressure cooling system, vacuum adjusting equipment and accurate water temperature and water level automatic controlling system. The accurate bronze calibrating sleeve ensures cooling speed and molding pipe. It can be three-dimension adjusted up & down and left & right.
Water Spray Cooling Tank: The body is made of stainless steel and the ductcoat is transparent soft PVC curtain. Stainless steel float adjusts water level and electricity controls water temperature. The nozzle material is ABS engineering plastic. The frame of the machine can be adjusted up and down. There is roller in the tank.
Haul-off Machine: We can offer two tracks, three tracks, four tracks, five tracks and six tracks haul-off machine according to different diameter and wall thickness of the pipe. It adopts frequency conversion. Every traction frame transfers with chain which ensures every track moving simultaneously. It is pneumatic and mechanical combination clamping. The bearing has special structure which can effectively reduce the installation error.

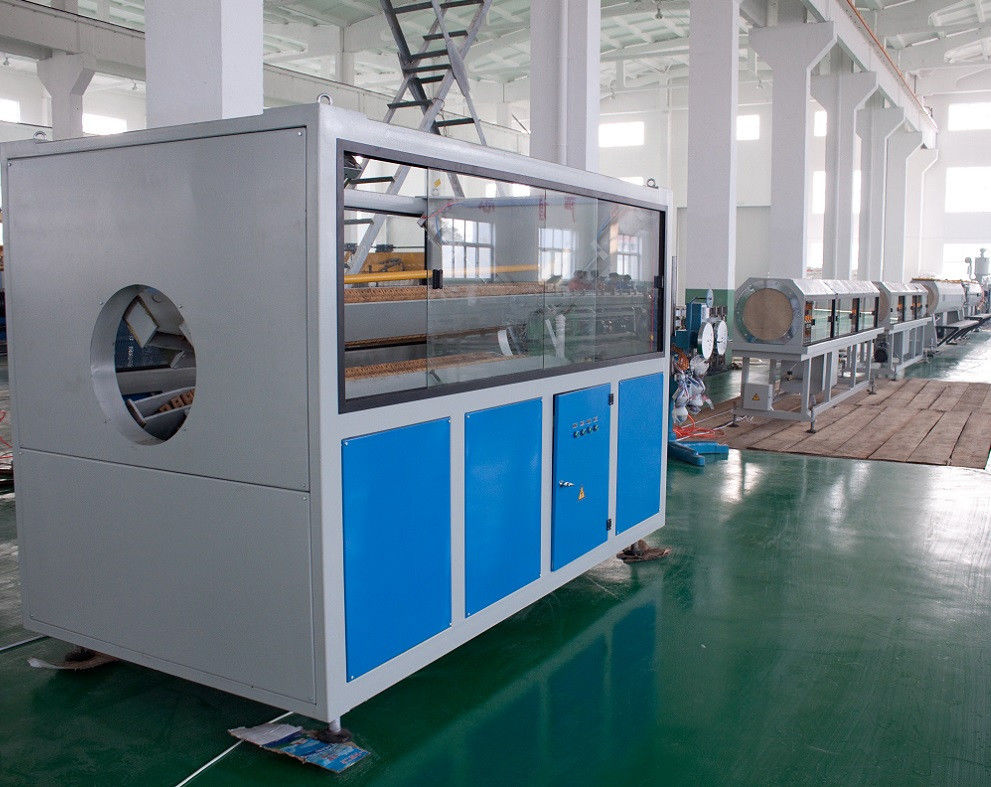

Cutting Machine: It is automatic dustless cutting machine. Smooth cutting section, synchronous frequency conversion drive, high accuracy and low noise. Large diameter pipe uses full-automatic planetary cutting machine. It is synchronization with the whole production line. The flexibility adjustment for the blade place and cutting depth assures cutting machine reliability.
Control System: We can offer SIEMENS PLC controlling system which is intelligent controlling system. Also we can offer ordinary controlling system which use SIEMENS electrical parts, Omron temperature controller. Intelligent control makes the operation simpler.

Main Technical Parameter:

Model
Diameter
(mm)
Extruder
Speed
(m/min)
Max.Output (kg/h)
Total Power (kw)
Dimension
L×W×H
SRQG-63
Ø20-Ø63mm
SJ-65×30
1.5-12
120
65
30 ×2.2 ×2.5m
SRQG-110
Ø20-Ø110mm
SJ-90×30
2-12
220
110
32 ×2.2 ×2.6m
SRQG-160
Ø63-Ø160mm
SJ-90×30
1.3-6
300
150
32×2.2 ×2.8m
SRQG-250
Ø75-Ø250mm
SJ-90×33
0.7-4
400
200
40 ×2.2 ×3m
SRQG-315
Ø110-Ø315mm
SJ-90×33
0.5-3.5
400
200
40 ×2.2 ×3m
SRQG-400
Ø160-Ø400mm
SJ-120×30
0.3-2.4
550
280
42 ×2.2 ×3m
SRQG-500
Ø200-Ø500mm
SJ-120×30
0.3-1.9
700
360
42×2.3 ×3.5m
SRQG-630
Ø315-Ø630mm
SJ-120×33
0.2-0.7
800
450
50 ×2.3 ×3.5m
SRQG-800
Ø400-Ø800mm
SJ-120×33
0.1-0.6
1100
560
50×2.5 ×4m
SRQG-1200
Ø630-Ø1200mm
SJ-150×33
0.05-0.5
1300
720
65×3×4.5m
