|Place of Origin:||QINGDAO, CHINA|
|Minimum Order Quantity:||1 LINE|
|Price:||USD 100-100000 SET PER|
|Packaging Details:||THE PACKING IS SUITABLE FOR OCEAN TRANSPORT|
|Delivery Time:||40-100 WORKING DAYS|
|Supply Ability:||3-6 LINES PER MONTH|
|Condition:||New||Screw Design:||Single Screw Estruder|
|Weight:||According To The Model||After-sales Service:||Engineers Available To Service|
hdpe pipe manufacturing machine,
hdpe pipe extruder machine

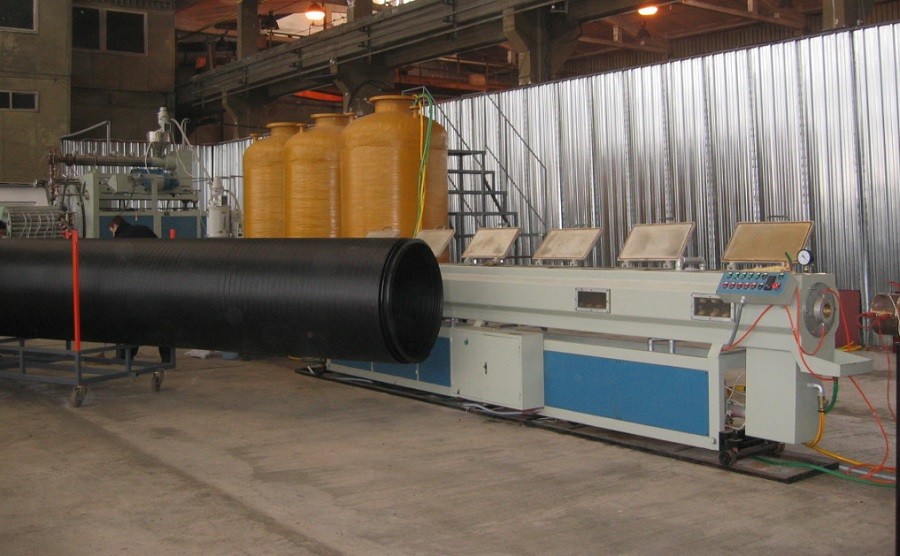

Description of HDPE Huge Diameter Hollowness Wall Spiral Pipe Production Line:
Hollowness Wall Spiral Pipe
made by this production line has high ring stiffness and high brunt intensity due to its unique structure. It can be used for over 50 years and has many advantages such as light weight, easy operation, facile installation, withstanding pressure, corrosion resistant such as acid, alkali and salt etc. The pipe of large diameter hollow wall spiral pipe production line (from 150mm-3000mm in dia) is becoming replacement of cement pipe and cast iron pipe since it possesses many advantages such as easy operation and low cost of assembling, tight juncture between the pipes, no pollution and so on. The pipe of large diameter hollow wall spiral pipe production line is being widely used as sewerage and drainage pipe nowadays. This product has a good prospect in application and enjoys a potential market.
This pipe extrusion line include extruder, die head, molds, spiral forming machine, forming molds, glue extruder, vacuum calibrating system, water spraying tank, cutting machine, overturning bracket and the whole line controlling system.
High speed and excellent extrusion quality by adopting two sets of single screw extruders with high efficiency performance. It is a high speed and efficiency single screw extruder, the material of the screw and barrel is high-quality alloy steel(38CrMoALA), the surface of screw and barrel is high degree hardness, abrasion and corrosion resistance through nitriding handling can be service long life, the extruder adopts ceramic heating, low-noise fans, high-speed hardness surface gear box, with oil-cooling system of a special slotted feeding sets, great output, low consumption, excellent plasticizing.
The material of the extrusion mould is high-quality alloy steel 40Cr through the nitriding handling can be service long life. It combined with professional design. In order to extrude the profile pipe and produce it.
Vacuum calibrating water tank:
Body with high hardness, high-quality stainless steel and bronze calibrating sleeve. Three-dimensional adjustment of the upper and lower left can be realized.
Water spray tank:
The body of the tank is made of stainless steel and covered by the transparent pvc curtain. Adjustable upper and lower rack. The tank is equipped with bracket roller.
Melting Glue extruder:
High speed and efficiency screw adopts ceramic heating. Slotted Barrel assures the glue extrude. This extruder is synchronized with the spiral forming machine through the precise system control, so efficiency melting paste together between the pipe and pipe.

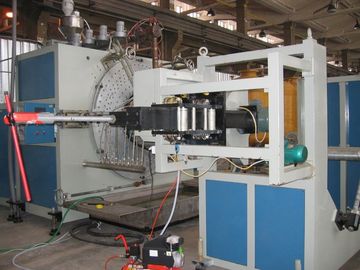

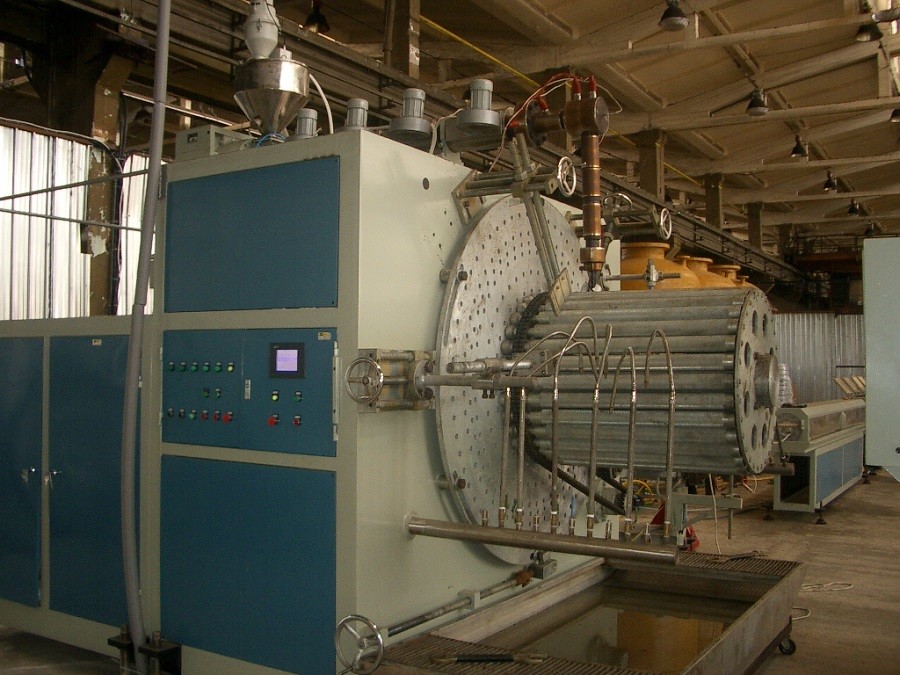

Spiral forming machine:
Frequency conversion, FUJI invertor. Design of the forming machining make the pipe winding accurate and stable from different angel. At the same time guarantee the production of pipe to get to solid.
Special saw cutting machine is designed for spiral pipe line. It can automatic cutting. Sawing equipment coordinated the synchronizer along oriented Column and pipe in the same direction movement so that it can finish sawing action.
Easy operation and high performance by adopting an advanced PLC control system. We can offer SIEMENS PLC controlling system which is intelligent control. Also we can offer ordinary controlling system which is equipped with SIEMENS electrical parts and Omron temperature controller. Intelligent control make the operation more simple.
Main Technical Parameter:
|Model||Pipe specification||Extruder||Total Power||Max Output||
