| Place of Origin: | Shangdong , China |
| Brand Name: | QINGDAO HAUSU |
| Certification: | CE IOS9001 |
| Model Number: | SBG50-250 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USB 150-30000 PER SET |
| Packaging Details: | NORMAL PACKAGE |
| Delivery Time: | 30-100 WORKING DAYS |
| Supply Ability: | 2-15 SETS PER MONTH |
| Features: | Disposable Bed Sheets | Place Of Origin: | Shangdong , China |
|---|---|---|---|
| Voltage: | 380V Or Customized | Power(W): | According To The Model |
| High Light: | spiral pipe making machine,plastic pipe extrusion line |
||

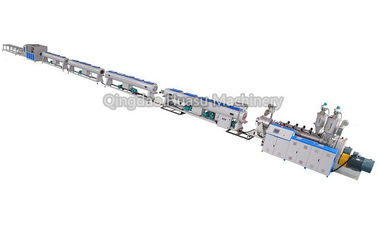

Electricity Cable Protection Pipe Extrusion Line / Customized Huge Caliber Pipe Machine
HDPE Cable Protection Pipe Extrusion Line:
HDPE Cable Protection Pipe Line- Communication Pipe Line- Communication Cable Protection Pipe Plant produced by Qingdao Huasu Machinery Fabricate Co., Ltd adapted to the development trend. This HDPE Cable Protection Pipes line has many advantages such as high production speed, high degree automation, stable working performance, large output and high efficiency and so on. It mainly applied in the field of agricultural irrigation protection of cable and ventilation and so on.
HDPE Cable Protection Pipes Extrusion Line/ Communication Cable Pipe Line Process flow:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → mound and calibrator → vacuum spray cooling tank → haul-off machine → cutting machine → winder.
HDPE Cable Protection Pipes production line design by Huasu Machinery company mainly includes single screw extruder, die, vacuum calibrating water cooling tank, haul-off machine, winding machine and cutting machine.
Single Screw Extruder:
Single screw extruder is especially used for polyethylene material which possesses effective plasticizing and high speed extrusion.
Die:
Standard designed spiral die head and reasonable channel are applicable to produce pipes with smooth inside and outside surface.
Vacuum Calibrating Water Cooling Tank:
Optimum spiral copper calibrator is equipped with pre-cooling entrance and powerful vacuum device for high speed extrusion. Unique sizing and cooling modes and special designed spraying nozzle with efficiency water cooling. It is suitable for all polyethylene material co-extrusion.
Haul-off Machine:
High accuracy, low noise and fixed length cutting.
Winding Machine:
Torque motor and gear reducer.
Main Parameters of HDPE Cable Protection/ Communication Pipe Extrusion Line:
| Model | Pipe Size | Extruder Model | Speed Screw | Output |
| PE-2 Hole | Ø20-32(mm) | SJ-90/30 | 120(r/min) | 260(kg/h) |
| PE-3 Hole | Ø20-40(mm) | SJ-90/33 | 120(r/min) | 400(kg/h) |
| PE-3 Layer | Ø20-63(mm) | SJ-65/30 *2sets | 120(r/min) | 260(kg/h) |
