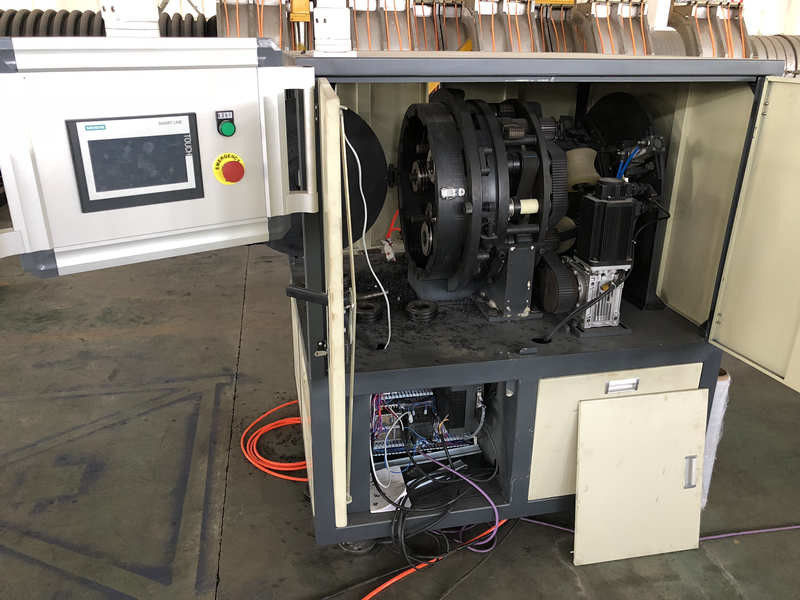

Double Wall Corrugated Pipe Extrusion Line , Angle Iron Hydraulic Hole Punching Machine

Place of Origin CHINA, HUASU
Brand Name HUASU
Certification CE, ISO9001
Model Number HS100
Minimum Order Quantity 12set
Price USB 5000-20000 per set
Packaging Details normal package
Delivery Time 3-6months
Payment Terms T/T
Supply Ability 50set

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Power Source Hydraulic
Power(W) 7.5kw Dimension(L*W*H) 3300*800*1600mm
Warranty 1 Year Type High-speed Punching Machine
Highlight

double wall corrugated pipe machine

,

double wall corrugated pipe production line

,

Angle Iron Hydraulic Hole Punching Machine

Leave a Message
Product Description

High Quality Angle Iron Hydraulic Automatic Hole Punching Machine



Product Application

Hydraulic Punch Machine

HW -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

SPECIFICATIONS FOR HYDRAULIC PUNCH MACHINE
Model
HW-60
HW-70
HW-80
Output
31T
35T
50T
Thickness iron
6mm
10mm
16mm
Thickness copper
10mm
12mm
20mm
Throat Depth
95mm
110mm
115mm
Weight
19kg
38kg
50kg
Model(mm)
10.5,13.8,17.5,20.5
10.5,13.8,17.5,20.5
16,18,22,25
Size(mm)
350*245*110
370*240*150
400*260*160
