| Place of Origin: | China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | SBG 600H |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard export package or as required |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 12 sets / month |
| Application: | Power Conduit And Drain Pipe | Plastic Processed: | PE, PVC, HDPE ,PP |
|---|---|---|---|
| Screw Design: | Single-screw Or Double-screw | Pipe Diameter Range: | ID32 - 1200mm Available |
| Name: | High Speed And Output Pipe Extrusion Machine | Usage: | Water Pipe,Wide Usage,plastic Pipe,Gas Pipe |
| Processing Type: | Two Extruder Co-extrusion | Inverter: | ABB |
| Contactor: | Siemens, Schnerder | Advantage: | Competitive Price And Great Service |
| High Light: | HDPE PP Pipe Extrusion Machine,1200mm Pipe Extrusion Machine,Wear Resistant HDPE Pipe Machine |
||

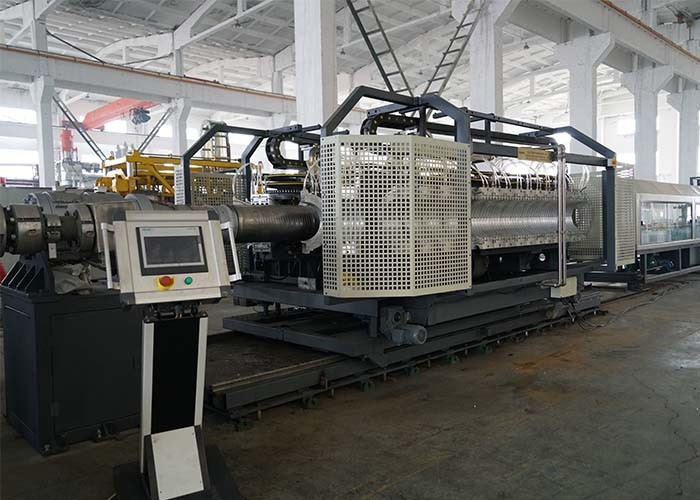

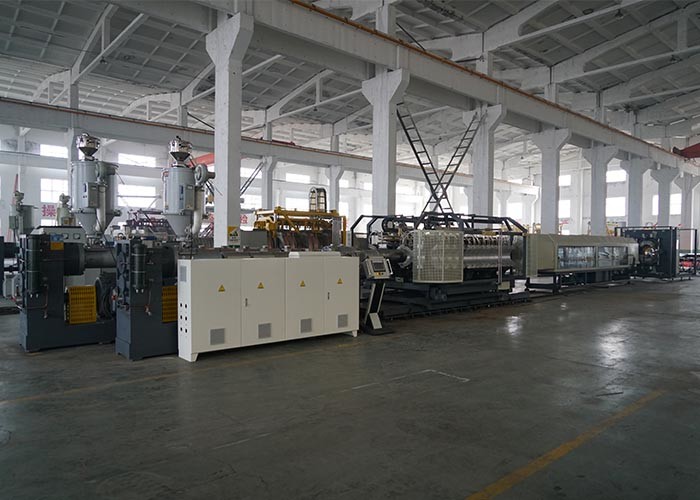

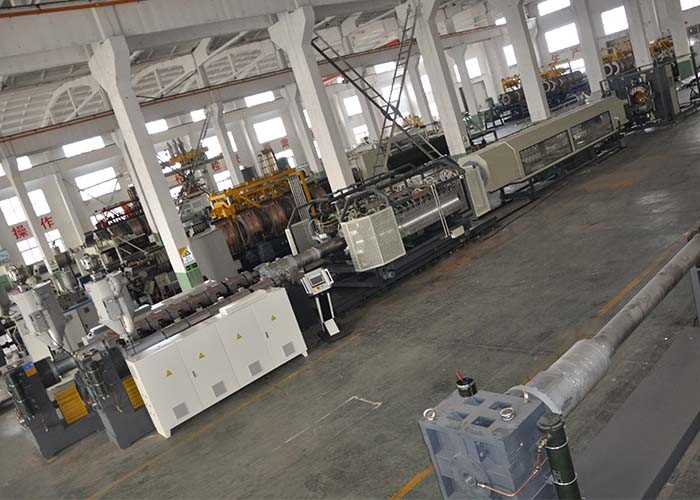

600H double wall corrugated extrusion line is used for producting pipes with ID 200-600mm.
ADVANTAGE
1. different machine grades available
2. competitive price
3. great aftersale service
1. All-new mold blocks cooling method. The mold blocks are cooled continuously by “pressure cooling” water circulating in sealed channels to achieve higher cooling efficiency and higher production speed, which strongly guarantee lower pipe production cost.
2. Highly compatible technical solution of mold blocks. The mold blocks can be compatible between different models of production lines in order to make the production more flexible with lower maintenance cost.
3. All-new design of “none platform” for corrugator. Need not to adjust the height of corrugator when change the molds for different sizes. Operations become easier and more efficient.
4. Innovative rapid assembly of mold blocks in clasp style simplifies the operation of changing mold blocks and greatly shortens the down time.
| Composition | Model | Power | Weight | Characteristic |
| Single Screw Extruder | SJ90*33 | 160KW | 4700KG | Hight corrugate, Wear resistant, Screw barrel with 38GrMOA1 quality nitrided steel |
| SJ120*33 | 250KW | 6500KG | ||
| Extruder Head | Φ100-600mm | 52.4KW | 2070KG | Main material 40Cr, Double spiral extrusion |
| Forming Moudle | Φ100-600mm | —— | —— | Special aluminum alloy, double layer online flare Air-cooled water cooling and good cooling effect |

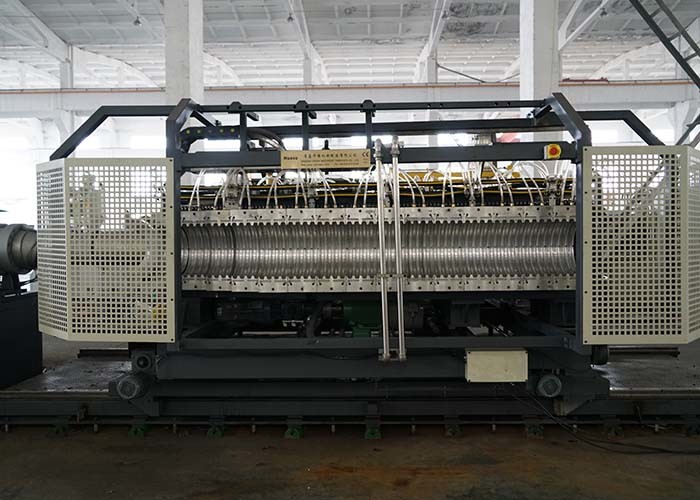

| Forming Machine | SBZ630H | 49KW | 14000KG | Horizontal structure, Hanging module according to elliptical running Track split/ closed, Closed water-cooled structure, Unique wacum system structure |
| Spray Water Tank | LQM6320D | 4.5KW | 800KG | Spray-type intense cooling |
| Cutting Machine | QG6330H | 3KW | 3000KG | Spray-type Schneider programmable, Hydraulic feed high speed without chip |
| Overtuning Bracket | JGJC500 | —— | 250KG | With pipe weighing system |
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
