Place of Origin: | China |
Brand Name: | HUASU |
Certification: | CE, ISO9001 |
Model Number: | SBG 800 |
Minimum Order Quantity: | 1 sets |
---|---|
Packaging Details: | normal package |
Delivery Time: | 60 work days |
Payment Terms: | T/T |
Supply Ability: | 12 sets / month |
Extruder: | 75kw And 160kw | Molds: | 500-800mm Die Head Water Sleeve Mould Block |
---|---|---|---|
Corrugator: | 1 Set Corrugator | Water Cooling Tank: | 1 Set Water Cooling Tank |
Screw: | Hardness Of Screw HV>740 | Barrel: | Hardness Of Barrel HV>940 |
Barrel Nitriding Depth: | 0.4~0.7 Mm | Screw Nitriding Depth: | Screw Nitriding Depth |
Barrel Heating Zone: | 6 Zones × 8kw | Barrel Cooling: | 6 Zones×0.18kw |
High Light: | Drainage DWC Pipe Extrusion Line,160kw DWC Pipe Extrusion Line,800mm DWC Pipe Extrusion Line |

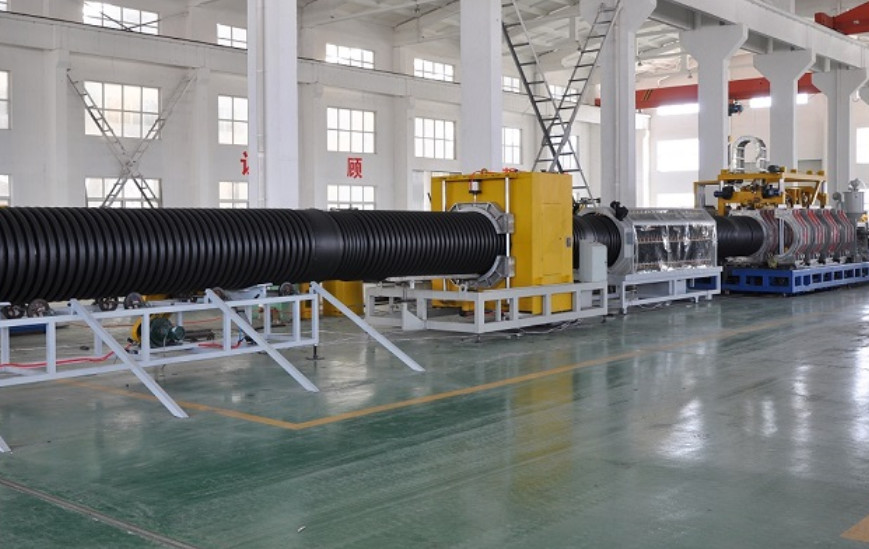

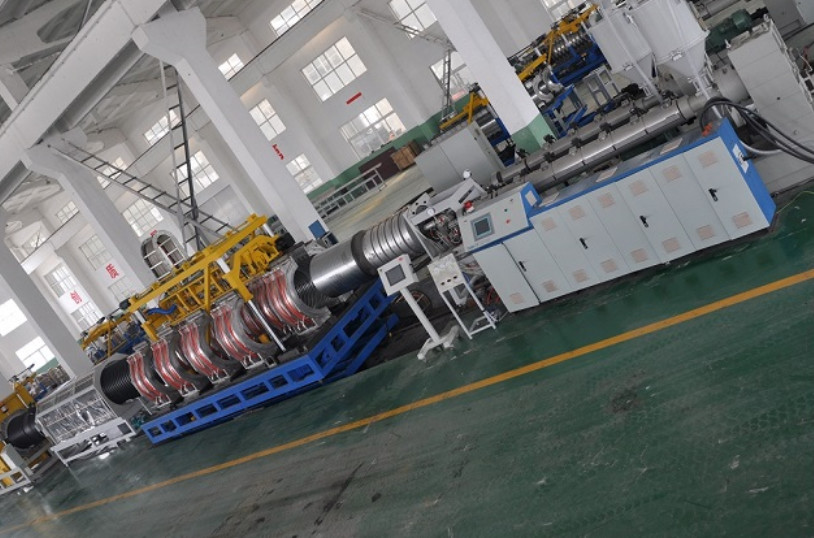

800H double wall corrugated extrusion line is used for producting pipes with ID 200-800mm.
ADVANTAGE
1. different machine grades available
2. competitive price
3. great aftersale service
4. high-efficient
5. environment protection

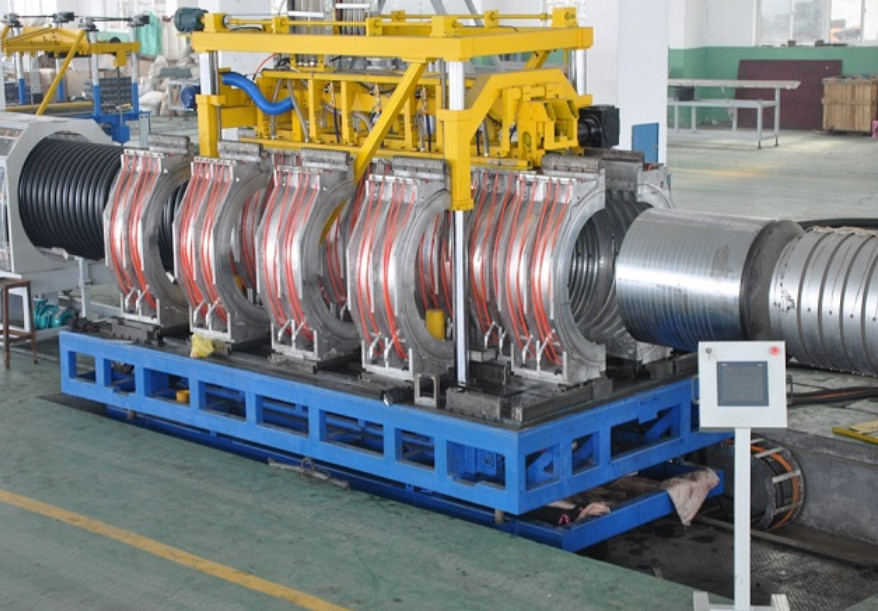

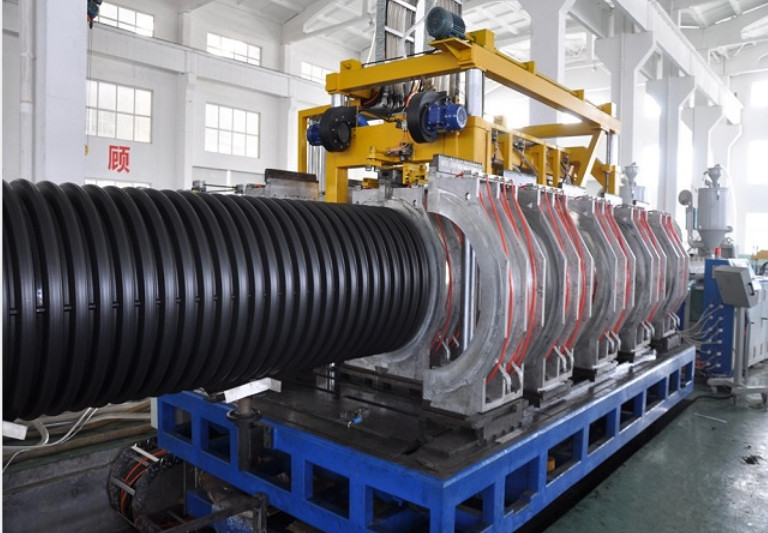

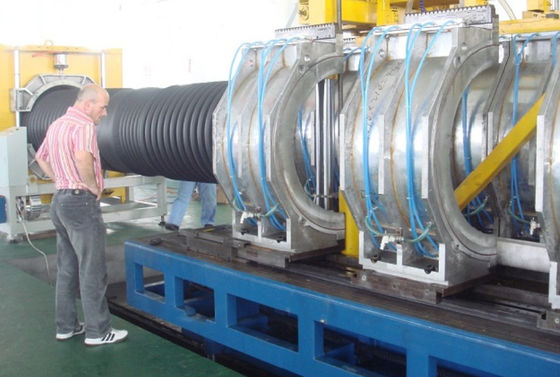

1. All-new mold blocks cooling method. The mold blocks are cooled continuously by “pressure cooling” water circulating in sealed channels to achieve higher cooling efficiency and higher production speed, which strongly guarantee lower pipe production cost.
2. Highly compatible technical solution of mold blocks. The mold blocks can be compatible between different models of production lines in order to make the production more flexible with lower maintenance cost.
3. All-new design of “none platform” for corrugator. Need not to adjust the height of corrugator when change the molds for different sizes. Operations become easier and more efficient.
4. Innovative rapid assembly of mold blocks in clasp style simplifies the operation of changing mold blocks and greatly shortens the down time.
NO. | Equipment |
1 | Automatic Feeder and Drier |
2 | Single Screw Extruder |
3 | Co-Extruder |
4 | Mould(including heater and calibrator) |
5 | Vacuum Tank |
6 | Water Cooling Tank |
7 | Haul-off unit |
8 | Automatic Cutting machine |
9 | Winding machine |
10 | more spec are available, please contact Ellen for more details |
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
