| Place of Origin: | China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | SRQG 63 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 12 sets / month |
| Pipe ID: | 20-1200mm | Vacuum Tank: | 1 Set Vacuum Tank |
|---|---|---|---|
| Material: | 38CrMoAlA Nitriding Handling | L:D: | 30:1 Or 33:1 |
| Max Output: | 80-800kg/h | Advantage 1: | Excellent Stiffness And Flexibility |
| AdvantaAdvantage 1 Ge 2: | Heat Resistance | Advantage 3: | High Mechanical Strength |
| High Light: | 800kg/H HDPE Pipe Extrusion Machine,1200mm HDPE Pipe Extrusion Machine,PLC LDPE Pipe Extrusion Line |
||
PE PIPE EXTRUSION LINE
ADVANTAGE
1. different machine grades available
2. competitive price
3. great aftersale service
4. high-efficient
5. environment protection
This PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Process flow of HDPE and LDPE Pipe Extrusion Machine/ Extruder Line for Water Supply:

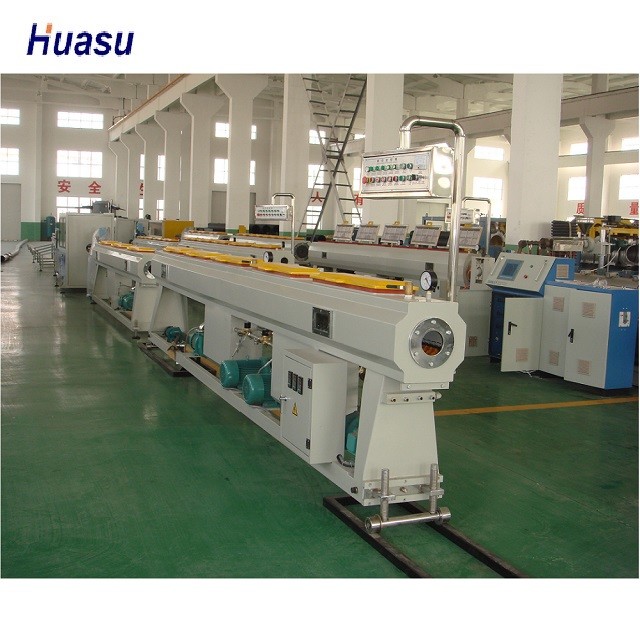

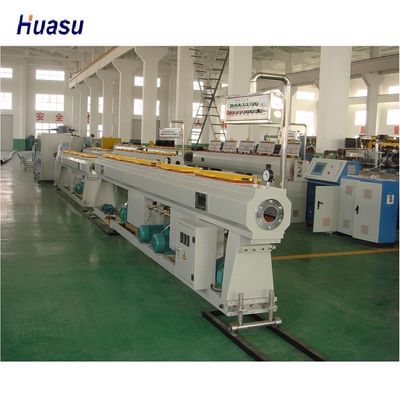

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack
|
No.
|
Name&Model
|
Quantity
|
| 1.0 | Single Screw Extruder SJ 120/33 | 1set/ |
| 2.0 | Single Screw Extruder SJ 30/25 | 1set/ |
| 3.0 | Die head | 1set/ |

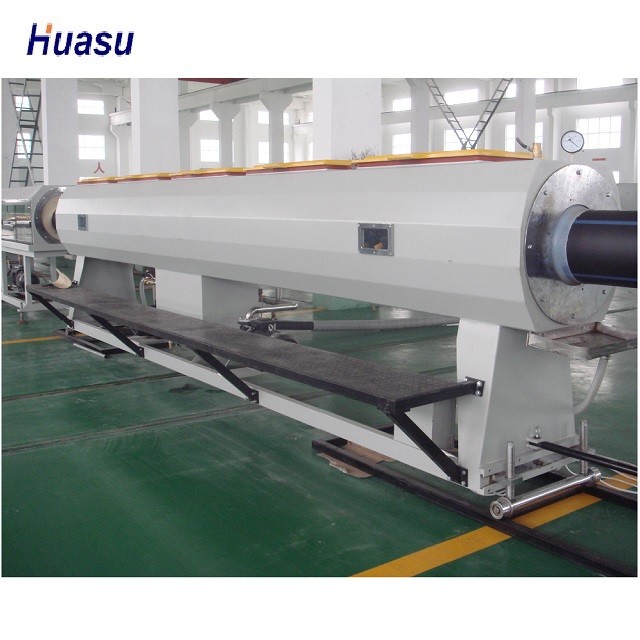

| 4.0 | Vacuum Calibrating Cooling Tank | 1set/ |
| 5.0 | Vacuum Calibrating Cooling Tank | 1set/ |
| 6.0 | Water Spraying Tank | 2set/ |
| 7.0 | Six Pedrails Hauling—Off Machine | 1set/ |
| 8.0 | YYJ Serial Metering Printer | 1set/ |

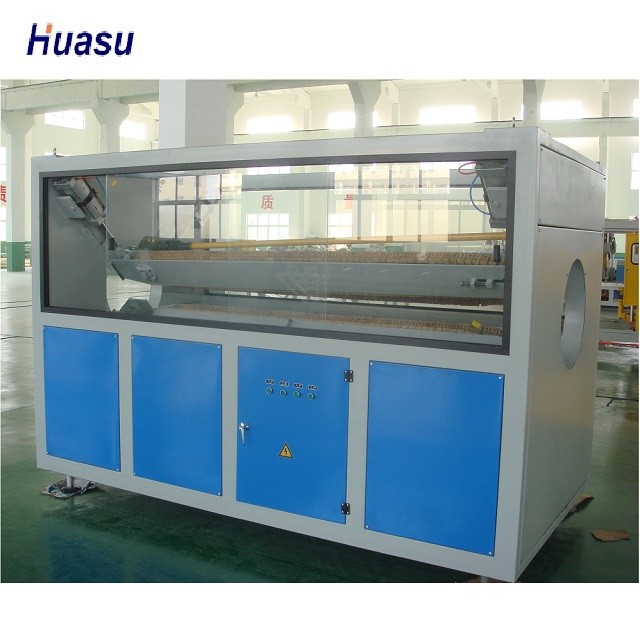

| 9.0 | Planetary Cutting Machine | 1set/ |
| 10.0 | Overturning Bracket | 1set/ |

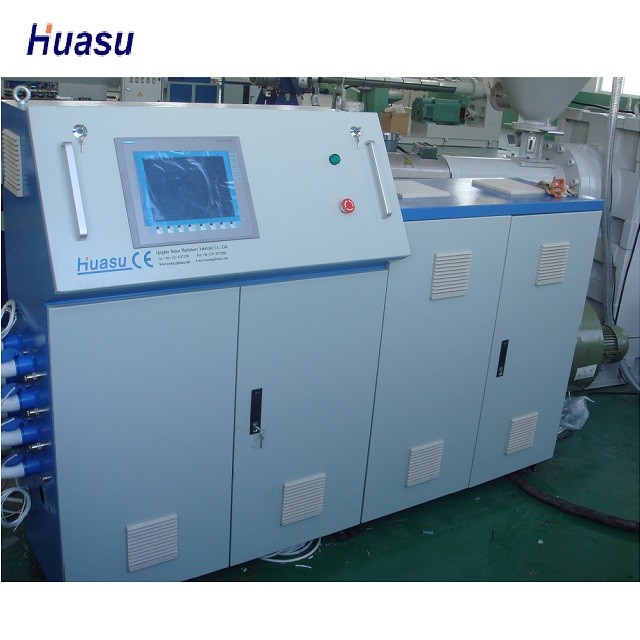

| 11.0 | PLC Control System PLC | 1set/ |
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
