OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line

OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line

  • OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line
  • OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line
  • OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line
  • OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line
  • OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line
OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line
Product Details:
Place of Origin: China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SBG 500
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Pipe OD: 160-500 Mm L:D: 22:1
Conical Twin Screw Extruder: SJSZ92/188 Driving: DC Motor 110kw
Converter: Eurotherm (UK) Overloading Protection Max. Output: 500-750 Kg/h
PLC Control System: Siemens Brand Contactor
High Light:

UPVC DWC Pipe Extrusion Line

,

750kg/H DWC Pipe Extrusion Line

,

OD 500mm Pipe Extrusion Line

 UPVC Double Wall Corrugated Pipe Line SBG500

NO. Outside Diameter ( mm)
1 160
2 200
3 250
4 315
5 400
6 500



No. Name & Model Quantity

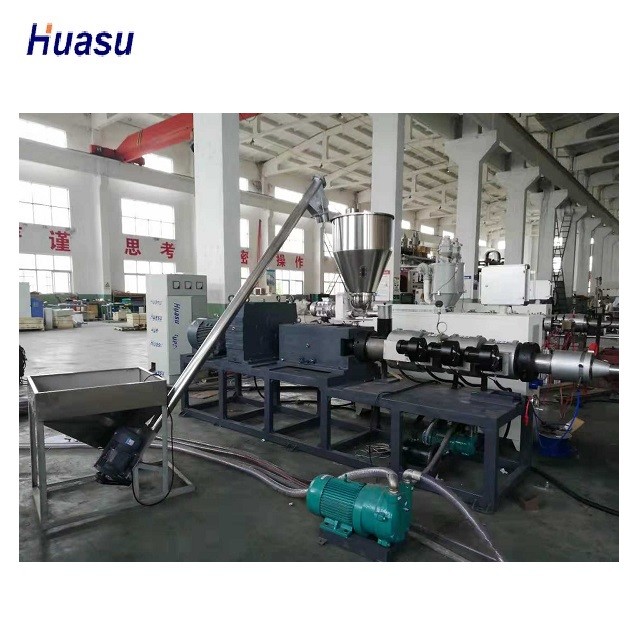

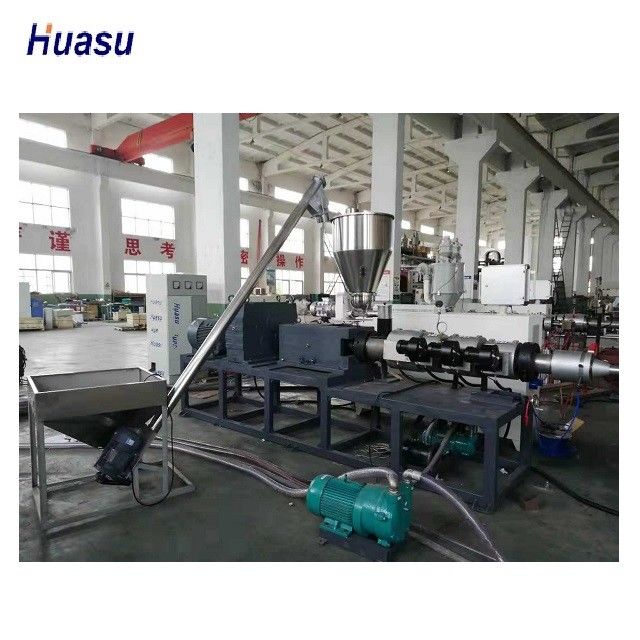

01 Conical Twin Screw Extruder SJSZ92/188 1 set
02 Molds 160mm die head water sleeve mould block 6sets
    200mm die head water sleeve mould block
    250mm die head water sleeve mould block
    315mm die head water sleeve mould block
    400mm die head water sleeve mould block
    500mm die head water sleeve mould block

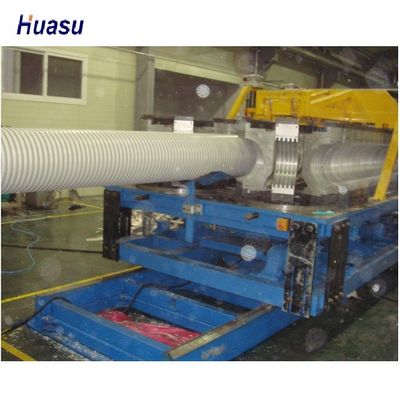

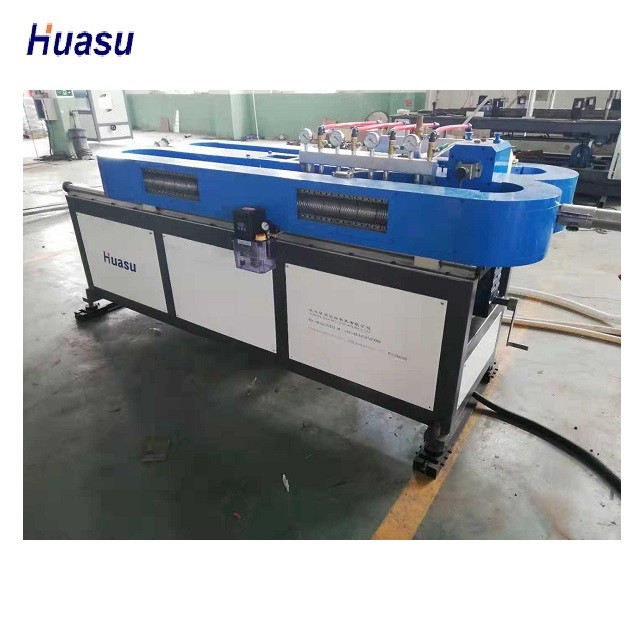

03 Forming Machine SBCJ-500 1 set
04 Cutting Machine STG-500 1 set
05 Automation Belling Machine SGK-500 1 set
06 PLC Control System SBG 500 1 set



Advantage

-Bimetallic alloy screw barrel, wear-resistant, corrosion-resistant, improve the service life.

-Reasonable design of bracket flow channel, low pressure and low temperature extrusion, high efficiency and energy saving.

-High efficiency vacuum system makes tube forming more perfect.

-The closed water cooling structure makes the tube forming faster.

-The closed cooling water circuit adopts fixed connection, and the replacement module does not need to dismantle the interface, so as to prevent water leakage.

-The installation of the card slot module makes the replacement of the module convenient and quick, and shortens the interval time of reproduction.

-The perfect optimization of running track makes the module run more smoothly.

-Double hydraulic and double cutter head make the cutting more accurate and faster. The high-speed and efficient production reduces the cost of the same unit pipe by 30%.





OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line 0





OD 500mm 750kg/H 110kw UPVC DWC Pipe Extrusion Line 1



Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.



In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.

Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
