|Place of Origin:||China|
|Model Number:||SBG 800H|
|Minimum Order Quantity:||1 sets|
|Packaging Details:||standard package or as required|
|Delivery Time:||60 working days|
|Supply Ability:||20 sets / month|
|Extruder:||SJ120/33 And SJ90/33||Driving:||AC Motor 315kw|
|Converter:||Eurotherm (UK) Overloading Protection||Max. Output:||1100 Kg/h|
|PLC Control System:||Siemens Brand Contactor|
PE PP Pipe Extrusion Line,
1100kg/H Corrugated Pipe Extrusion Line,
800mm Corrugated Pipe Extrusion Line

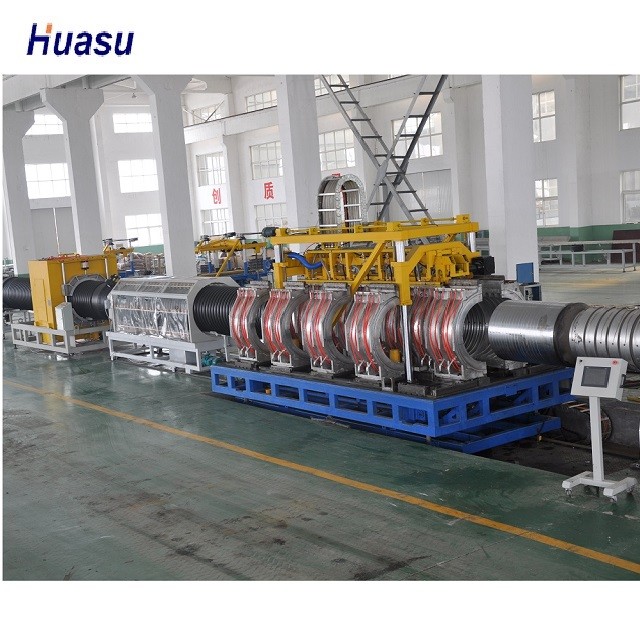

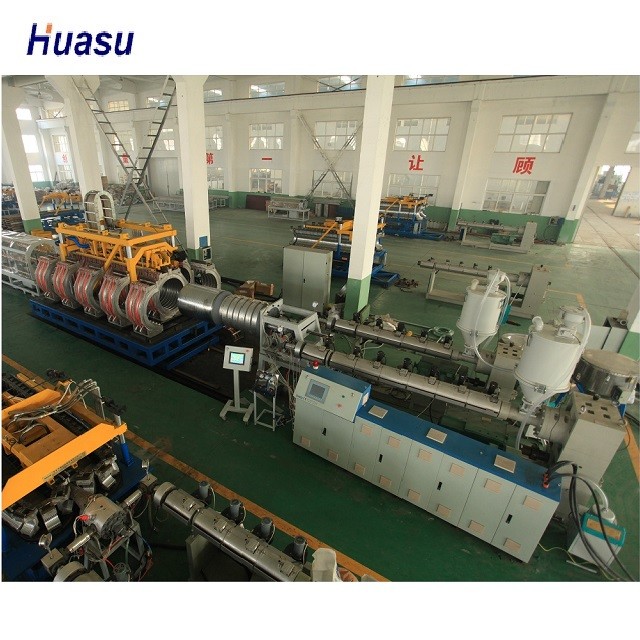

High Speed PE/PP Double Wall Corrugated Pipe Extrusion Line for produing plastic pipes SBG-800H
|NO||Inner Diameter ( mm)|
|No.||Name & Model||Quantity|
|01||Single screw extruder SJ-120/33||1 set|
|02||Single screw extruder SJ-90/33||1 set|

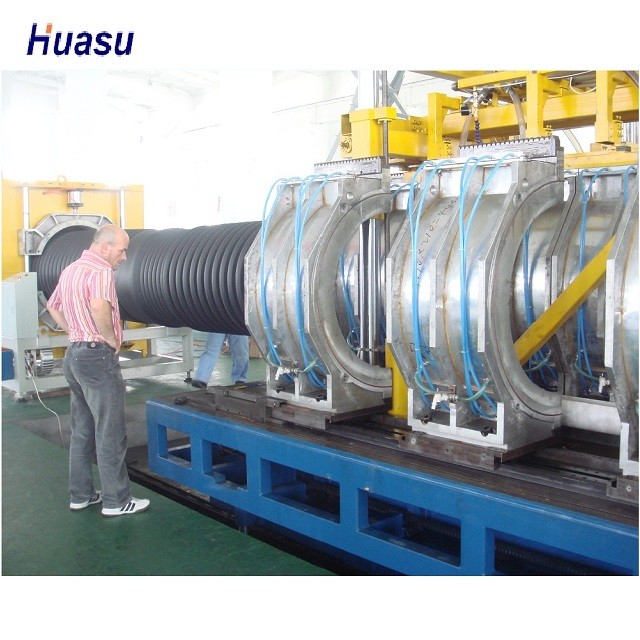

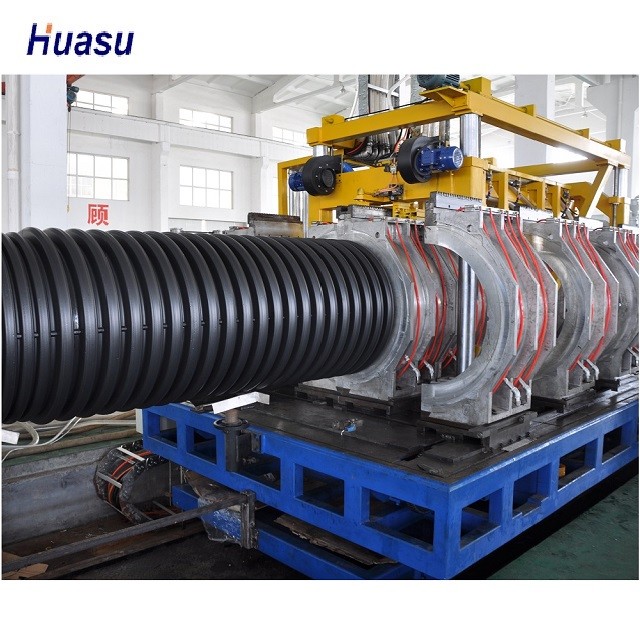

|03||Forming machine SBCJ-800H||1 set|
|04||Spray water tank SBSC-800H with haul-off machine||1 set|
|05||Planetary chip free cutting machine SBQG-800H||1 set|
|06||Unloading bracket SBXL-800H||1 set|
|07||PLC control system||1 set|
Molds including double-layer online expansion module
|ID300mm die head water sleeve mould block||1 set|
|ID600mm die head water sleeve mould block||1 set|
|ID800mm die head water sleeve mould block||1 set|
|09||Spare parts||1 set|
-Bimetallic alloy screw barrel, wear-resistant, corrosion-resistant, improve the service life.
-Reasonable design of bracket flow channel, low pressure and low temperature extrusion, high efficiency and energy saving.
-High efficiency vacuum system makes tube forming more perfect.
-The closed water cooling structure makes the tube forming faster.
-The closed cooling water circuit adopts fixed connection, and the replacement module does not need to dismantle the interface, so as to prevent water leakage.
-The installation of the card slot module makes the replacement of the module convenient and quick, and shortens the interval time of reproduction.
-The perfect optimization of running track makes the module run more smoothly.
-Double hydraulic and double cutter head make the cutting more accurate and faster. The high-speed and efficient production reduces the cost of the same unit pipe by 30%.
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
