| Place of Origin: | China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | SBG 200 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets / month |
| Pipe OD: | 50-200mm | L:D: | 30:1 |
|---|---|---|---|
| Single Screw Extruder: | SJ 75/30 & SJ 55/30 | Driving: | 150—1500 R.p.m 22kw |
| -Contactor: | Siemens | Max. Output: | 120-160 Kg/h |
| Forming-Machine: | SBCJ-200 | Cutting Machine: | STG-200 |
| Overturning Bracket: | Equipped | ||
| High Light: | 200mm HDPE Pipe Extrusion Line,160kg/H HDPE Pipe Extrusion Line,1500rpm Hdpe Pipe Extrusion Machine |
||

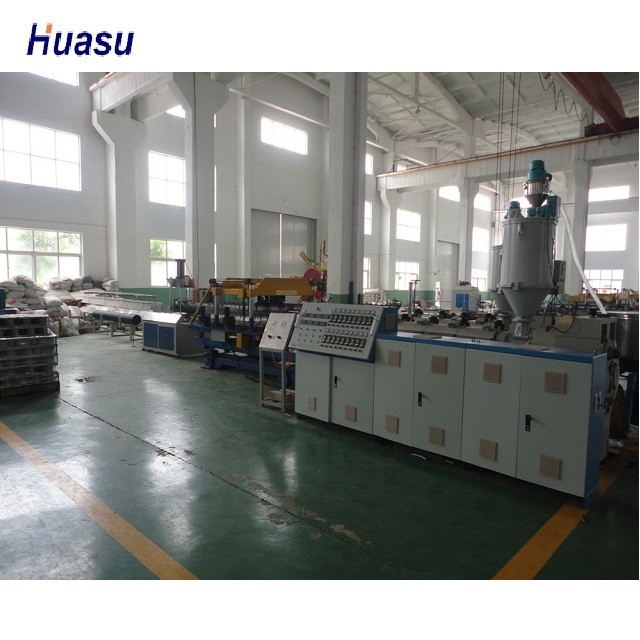

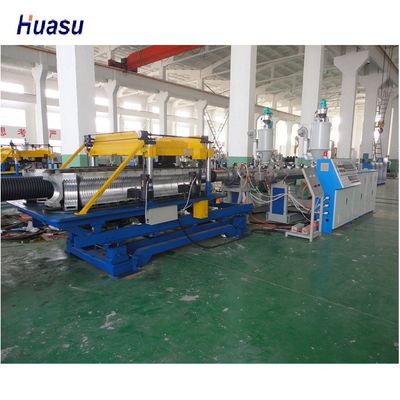

HDPE Double Wall Corrugated Pipe Line SBG200
| NO. | Internal Diameter( mm) |
| 1 | 50 |
| 2 | 63 |
| 3 | 75 |
| 4 | 90 |
| 5 | 110 |
| 6 | 160 |
| 7 | 200 |
| No. | Name & Model | Quantity | |
| 01 | Single Screw Extruder SJ75/30 | 1 set | |
| 02 | Single Screw Extruder SJ55/30 | 1 set | |

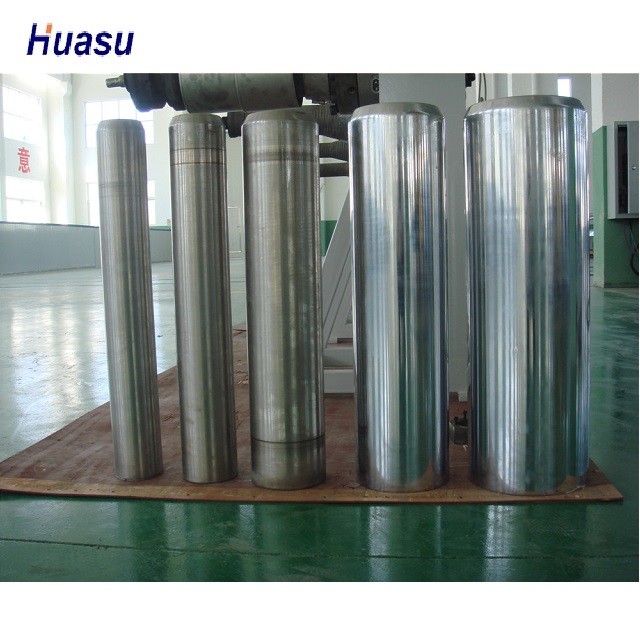

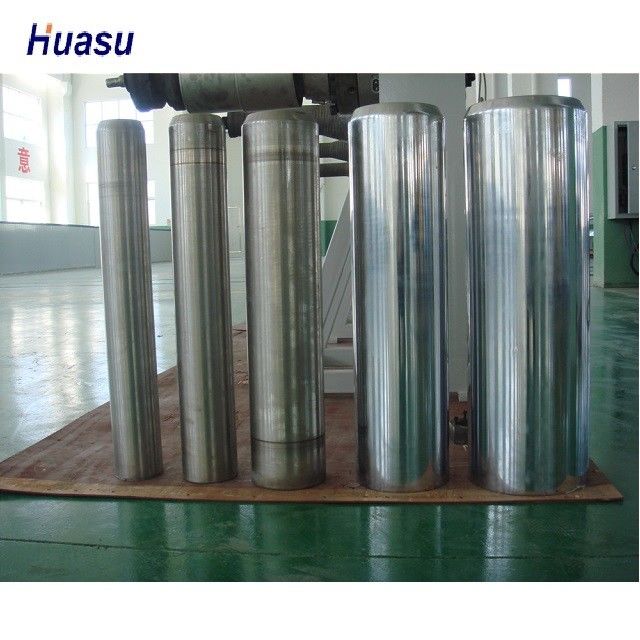

| 03 | Molds | 50mm die head water sleeve mould block | 7 sets |
| 63mm die head water sleeve mould block | 7 sets | ||
| 75mm die head water sleeve mould block | 7 sets | ||
| 90mm die head water sleeve mould block | 7 sets | ||
| 110mm die head water sleeve mould block | 7 sets | ||
| 160mm die head water sleeve mould block | 7 sets | ||
| 200mm die head water sleeve mould block | 7 sets | ||

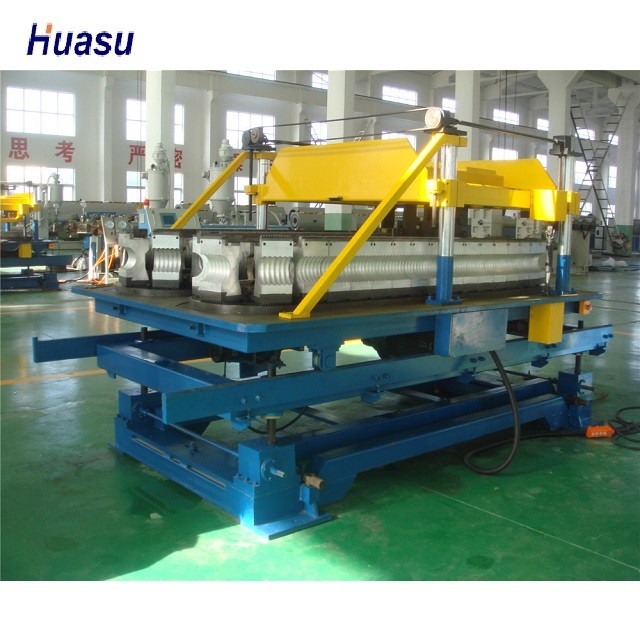

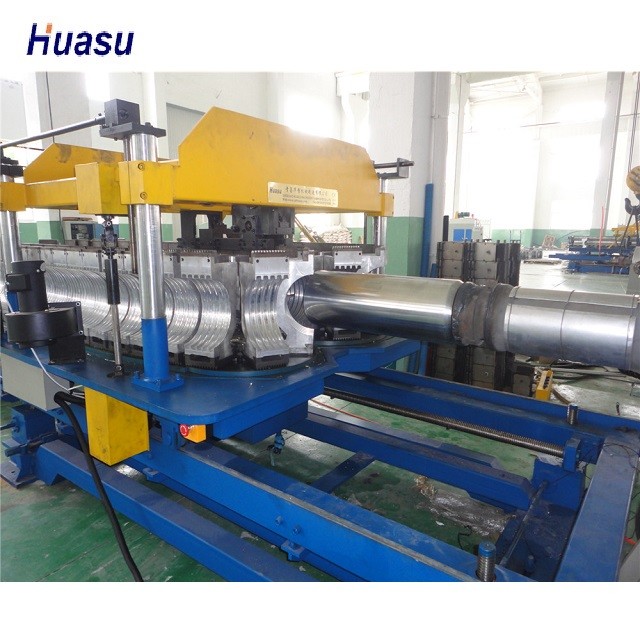

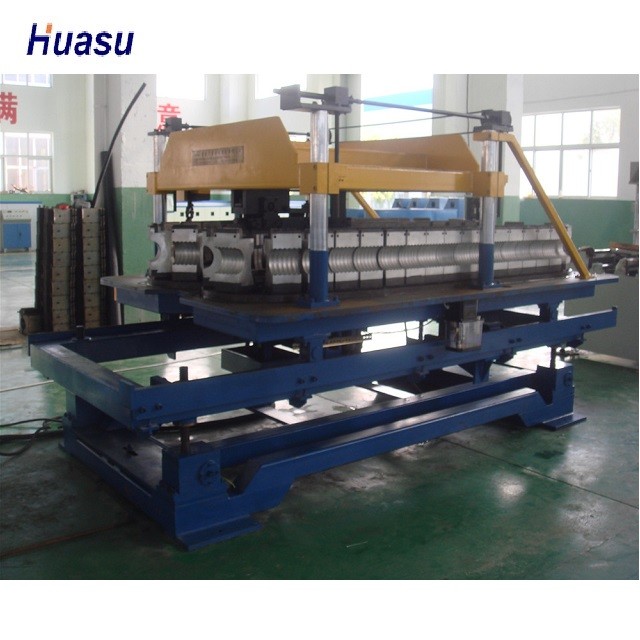

| 04 | Forming-Machine SBCJ-200 | 1 set | |
| 05 | Cutting Machine STG-200 | 1 set | |
| 06 | Overturning Bracket | 1 set | |
| 07 | PLC Control System | 1 set | |
Advantage
-Bimetallic alloy screw barrel, wear-resistant, corrosion-resistant, improve the service life.
-Reasonable design of bracket flow channel, low pressure and low temperature extrusion, high efficiency and energy saving.
-High efficiency vacuum system makes tube forming more perfect.
-The closed water cooling structure makes the tube forming faster.
-The closed cooling water circuit adopts fixed connection, and the replacement module does not need to dismantle the interface, so as to prevent water leakage.
-The installation of the card slot module makes the replacement of the module convenient and quick, and shortens the interval time of reproduction.
-The perfect optimization of running track makes the module run more smoothly.
-Double hydraulic and double cutter head make the cutting more accurate and faster. The high-speed and efficient production reduces the cost of the same unit pipe by 30%.
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
