Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line

Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line

  • Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line
  • Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line
  • Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line
  • Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line
  • Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line
  • Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line
Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line
Product Details:
Place of Origin: China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SBG 400
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Pipe OD: 200-400 Mm L:D: 30:1
Single Screw Extruder 1: SJ-90/30 Single Screw Extruder 2: SJ-75/30
Converter: Eurotherm (UK) Overloading Protection Max. Output: 500-750 Kg/h
PLC Control System: Siemens Brand Contactor
High Light:

750kg/H Hdpe Pipe Production Line

,

OD 400mm Pipe Extruder Machine

,

CE HDPE Pipe Extrusion Line

 HEPE Double Wall Corrugated Pipe Line SBG400



NO. Internal Diameter( mm)
1 200
2 225
3 300
4 400





No. Name & Model Quantity

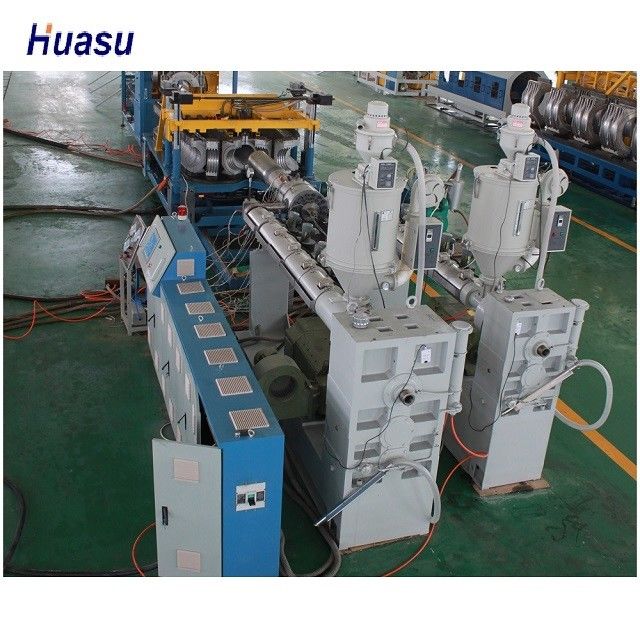

01 Single Screw Extruder SJ-90/30 1 set
02 Single Screw Extruder SJ-75/30 1 set
03 Molds 200mm die head water sleeve mould block 4sets
    225mm die head water sleeve mould block 4 sets
    300mm die head water sleeve mould block 4 sets
    400mm die head water sleeve mould block 4 sets

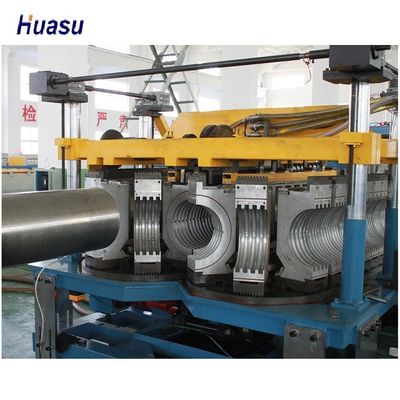

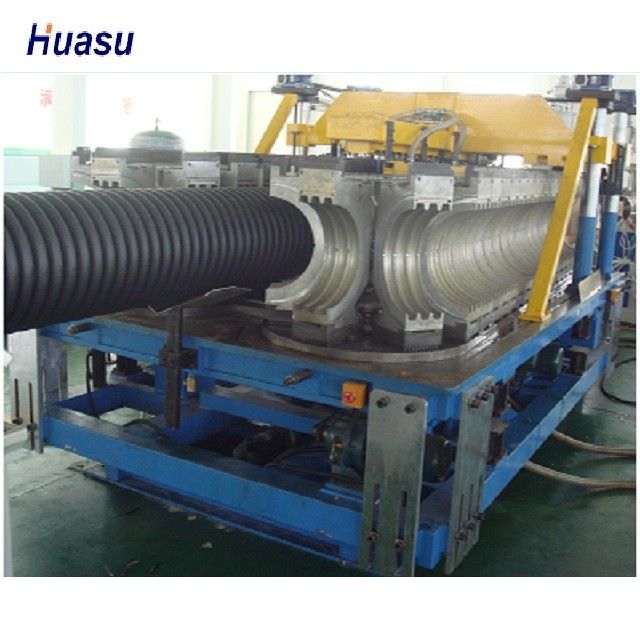

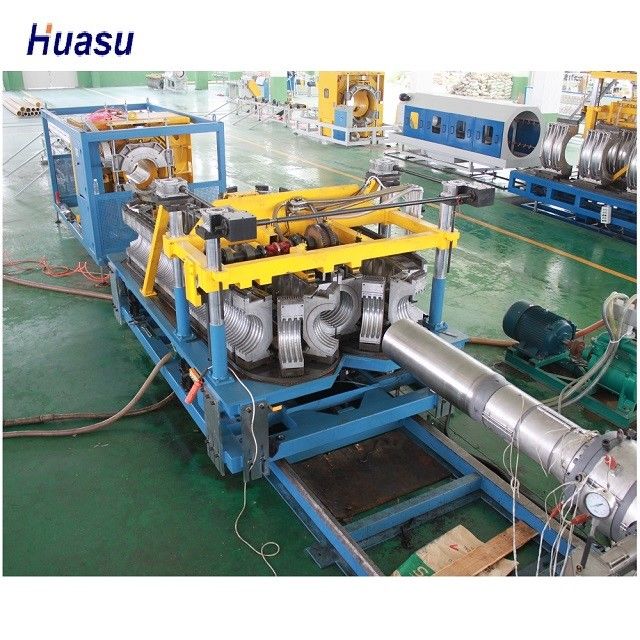

04 Forming Machine SBCJ-400 1 set
05 Water Cooling Tank 1 set

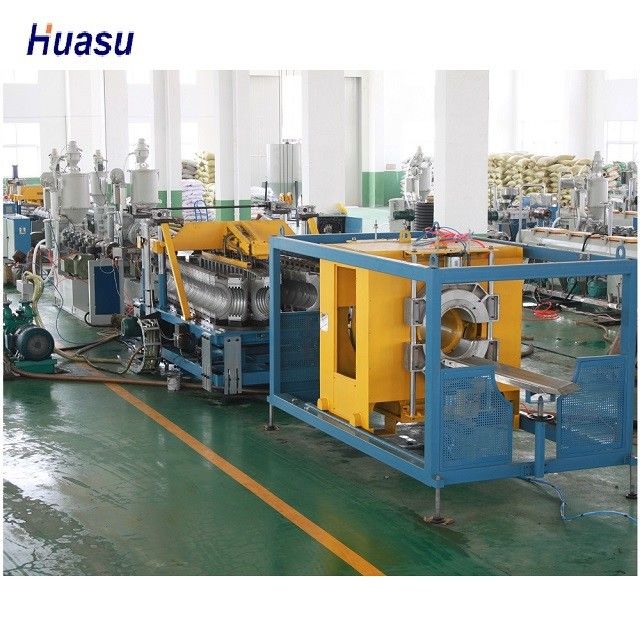

06 Cutting Machine STG-400 1 set
07 Unloading Bracket SBXL-400 1 set
08 PLC Control System SBG 400 1 set



Advantage

-Bimetallic alloy screw barrel, wear-resistant, corrosion-resistant, improve the service life.

-Reasonable design of bracket flow channel, low pressure and low temperature extrusion, high efficiency and energy saving.

-High efficiency vacuum system makes tube forming more perfect.

-The closed water cooling structure makes the tube forming faster.

-The closed cooling water circuit adopts fixed connection, and the replacement module does not need to dismantle the interface, so as to prevent water leakage.

-The installation of the card slot module makes the replacement of the module convenient and quick, and shortens the interval time of reproduction.

-The perfect optimization of running track makes the module run more smoothly.

-Double hydraulic and double cutter head make the cutting more accurate and faster. The high-speed and efficient production reduces the cost of the same unit pipe by 30%.





Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line 0





Corrugated OD 400mm 750kg/H Hdpe Pipe Production Line 1



Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.



In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.

Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
