Double Wall 45kw 150kg/H HDPE Pipe Extrusion Line

Place of Origin China
Brand Name HUASU
Certification CE, ISO9001
Model Number SBG 110
Minimum Order Quantity 1 sets
Packaging Details standard package or as required
Delivery Time 60 working days
Payment Terms T/T
Supply Ability 20 sets / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pipe OD 40-110mm LD 30:1
Extruder SJ1275/30 And SJ55/30 Driving AC Motor 45kw
Inverter Hitachi, Japan Max. Output 150 Kg/h
PLC Control System Siemens Brand Contactor Haul-off Machine Available
Cutting Machine 1 Set
Highlight

150kg/H HDPE Pipe Extrusion Line

,

45kw HDPE Pipe Extrusion Line

,

OD 110mm HDPE Pipe Extruder

Leave a Message
Product Description

SBG 110 HDPE Double Wall Corrugated Pipe Line



NO  Inner Diameter ( mm)
1 40
2 50
3 63
4 75
5 90
6 110



No. Name & Model Quantity

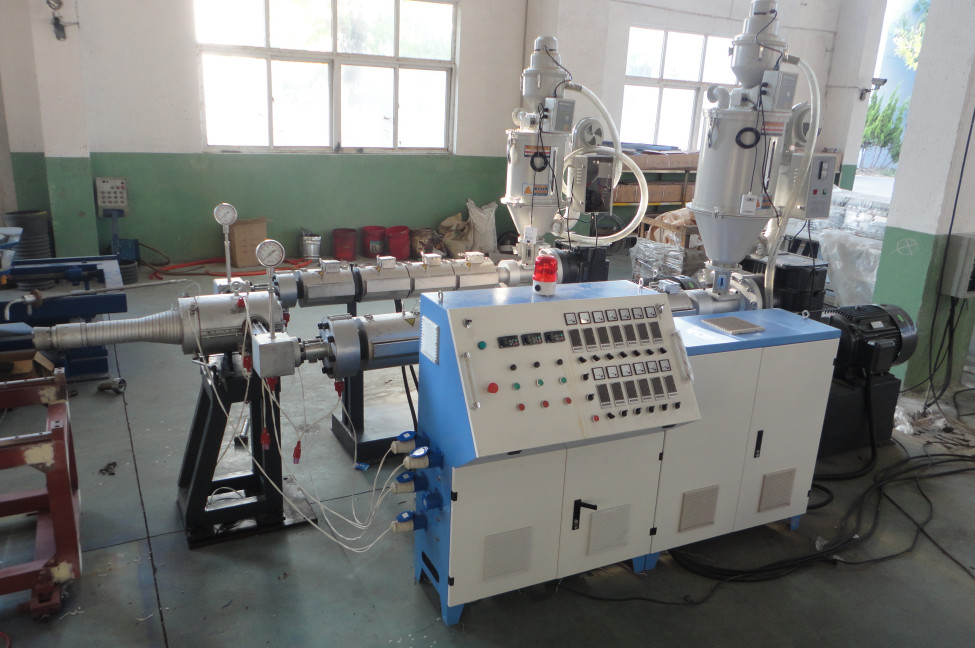

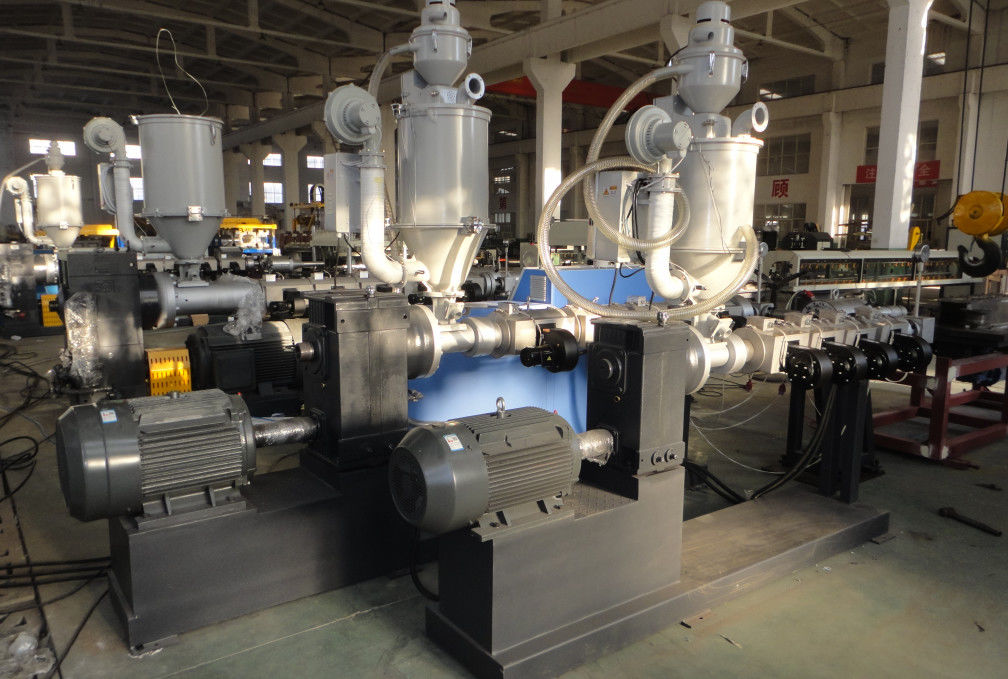

01 Single Screw Extruder SJ75/30 1 set
02 Single Screw Extruder SJ55/30 1 set
03 Molds ID 40,50, 63, 75, 90, 110mm 6 sets
04 Forming-Machine 1 set

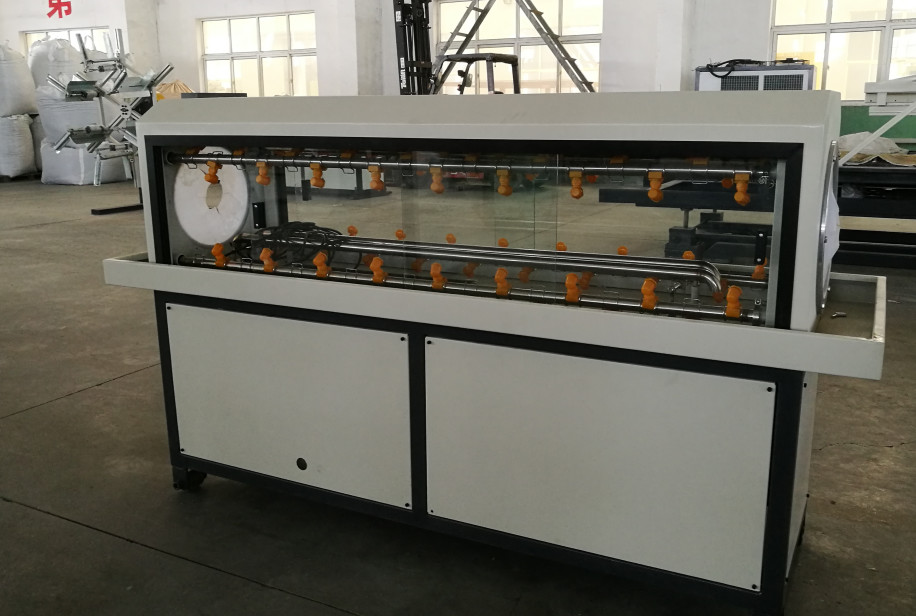

05 Water Cooling Tank 1 set
06 Haul-off Machine 1 set
07 Cutting Machine 1 set
08 Winder 1 set

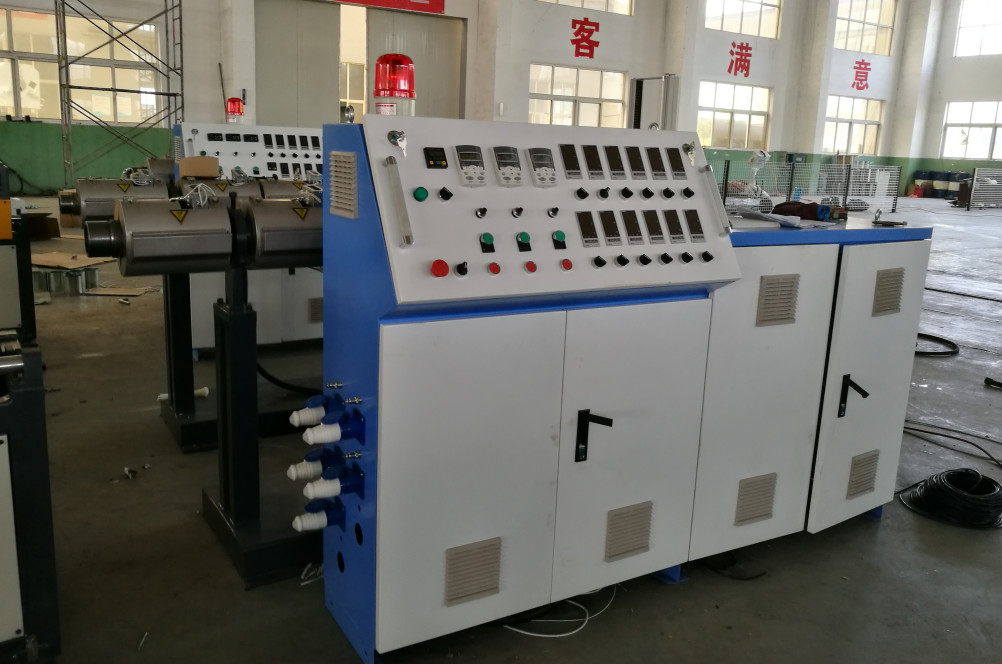

09 Control System 1 set





Advantage

-Bimetallic alloy screw barrel, wear-resistant, corrosion-resistant, improve the service life.

-Reasonable design of bracket flow channel, low pressure and low temperature extrusion, high efficiency and energy saving.

-High efficiency vacuum system makes tube forming more perfect.

-The closed water cooling structure makes the tube forming faster.

-The closed cooling water circuit adopts fixed connection, and the replacement module does not need to dismantle the interface, so as to prevent water leakage.

-The installation of the card slot module makes the replacement of the module convenient and quick, and shortens the interval time of reproduction.

-The perfect optimization of running track makes the module run more smoothly.

-Double hydraulic and double cutter head make the cutting more accurate and faster. The high-speed and efficient production reduces the cost of the same unit pipe by 30%.





Double Wall 45kw 150kg/H HDPE Pipe Extrusion Line 0







Double Wall 45kw 150kg/H HDPE Pipe Extrusion Line 1

Double Wall 45kw 150kg/H HDPE Pipe Extrusion Line 2

Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.



In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.

Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
