1500rpm ID 50mm 63mm 75mm HDPE Pipe Extrusion Line
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | HUASU |
| Certification | CE, ISO9001 |
| Model Number | SBG200 |
| Minimum Order Quantity | 1 sets |
| Packaging Details | standard package or as required |
| Delivery Time | 60 working days |
| Payment Terms | T/T |
| Supply Ability | 20 sets / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe OD | 50-200 Mm | LD | 30:1 |
|---|---|---|---|
| Extruder | SJ75/30 & SJ55/30 | AC Motor | 150—1500 R.p.m 22kw |
| Inverter | FUJI (Japan) | Max. Output | 20MT/day |
| Power | 380 V X 50 Hz X 3 Phase | Cooling Type | Air Cooling |
| Feeding System | Auto | Operation Direction | From Right To Left |
| Molds | Die Heads/ Water Sleeve/Mould Block | ||
| Highlight | 75mm HDPE Pipe Extrusion Line,1500rpm HDPE Pipe Extrusion Line,160kg/h HDPE Pipe Extruder |
||
Product Description

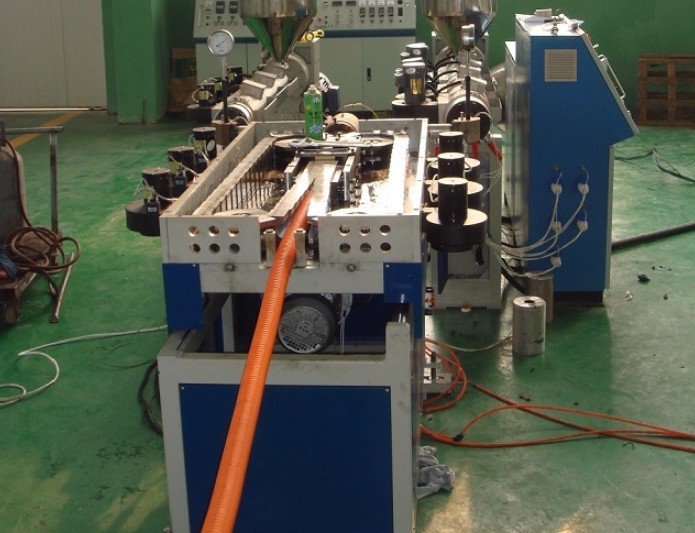

HDPE Double Wall Corrugated Pipe Line SBG200
Advantage
1. High ring stiffness, wall use of reasonable hollow ring structure, greatly improving the pipe's ring stiffness.
2. Fluid resistance small, inside sleek, friction less than concrete
3. Connection sealing well, using elastic seal socket connection, Sealing better than the metal tube and concrete pipe
4. Bear acid alkali and Sault corrosion
5. Easy to construction, light weight, enough length, low requirement for environment, lower project cost
6. Long service life
Application
Municipal engineering and construction buried drainage, sewage pipe
Post and telecommunication cables, cable the casing used underground
The embedded casing of highway and railway
|
NO.
|
Internal Diameter( mm)
|
| 1 | 50 |
| 2 | 63 |
| 3 | 75 |
| 4 | 90 |
| 5 | 110 |
| 6 | 160 |
| 7 | 200 |
|
Extruder
|
Motor
|
Max. Output
|
| SJ75/30 | 55kw | 120-160kg/h |
| SJ55/30 | 22kw | 60-90kg/h |
|
No.
|
Name & Model
|
Quantity
|
|
| 01 | Single Screw Extruder SJ75/30 | 1 set | |
| 02 | Single Screw Extruder SJ55X30 | 1 set | |
| 03 | Molds |
50mm die head water sleeve mould block 50mm |
7sets |
|
63mm die head water sleeve mould block 63mm |
|||
|
75mm die head water sleeve mould block 75mm |
|||
|
90mm die head water sleeve mould block 90mm |
|||
|
110mm die head water sleeve mould block 110mm |
|||
|
160mm die head water sleeve mould block 160mm |
|||
|
200mm die head water sleeve mould block 200mm |
|||
| 04 | Forming-Machine SBCJ-200 | 1 set | |
| 05 | Cutting Machine STG-200 | 1 set | |
| 06 | Overturning Bracket | 1 set | |
| 07 | PLC Control System | 1 set | |
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.
Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
