55kw Double Wall HDPE Corrugated Pipe Extrusion Line

55kw Double Wall HDPE Corrugated Pipe Extrusion Line

  • 55kw Double Wall HDPE Corrugated Pipe Extrusion Line
  • 55kw Double Wall HDPE Corrugated Pipe Extrusion Line
  • 55kw Double Wall HDPE Corrugated Pipe Extrusion Line
  • 55kw Double Wall HDPE Corrugated Pipe Extrusion Line
  • 55kw Double Wall HDPE Corrugated Pipe Extrusion Line
  • 55kw Double Wall HDPE Corrugated Pipe Extrusion Line
55kw Double Wall HDPE Corrugated Pipe Extrusion Line
Product Details:
Place of Origin: Shandong, China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SBG 400
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Pipe OD: 200-400 Mm L:D: 30:1
Extruder: SJ-90/30 & SJ-75/30 AC Motor: 55kw
Inverter: FUJI (Japan) Or ABB Max. Output: 20MT/day
Cooling Type: Air Cooling And Water Cooling Feeding System: Auto
Operation Direction: From Right To Left Molds: Die Heads/ Water Sleeve/Mould Block
High Light:

HDPE Corrugated Pipe Extrusion Line

,

55kw HDPE Pipe Extrusion Line

,

ID200mm HDPE Pipe Extrusion Line

HDPE Double Wall Corrugated Pipe Line SBG 400

  • Horizontal Structure/ Aluminum Molds

          Can Make Pipe Diameter ID200-400mm



Advantage

1. High ring stiffness, wall use of reasonable hollow ring structure, greatly improving the pipe's ring stiffness.

2. Fluid resistance small, inside sleek, friction less than concrete

3. Connection sealing well, using elastic seal socket connection, Sealing better than the metal tube and concrete pipe

4. Bear acid alkali and Sault corrosion

5. Easy to construction, light weight, enough length, low requirement for environment, lower project cost

6. Long service life



Application

Municipal engineering and construction buried drainage, sewage pipe



Post and telecommunication cables, cable the casing used underground



The embedded casing of highway and railway



NO.



Internal Diameter( mm)



Outside Diameter ( mm)



1 200
2 225
3 300
4 400



Extruder



Motor



Max. Output



SJ90/30 110kw 320kg/h
SJ75/30 55kw 160kg/h



No.



Name & Model



Quantity

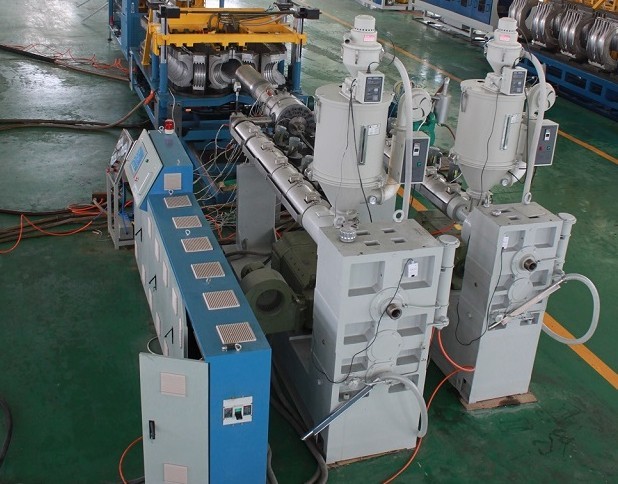

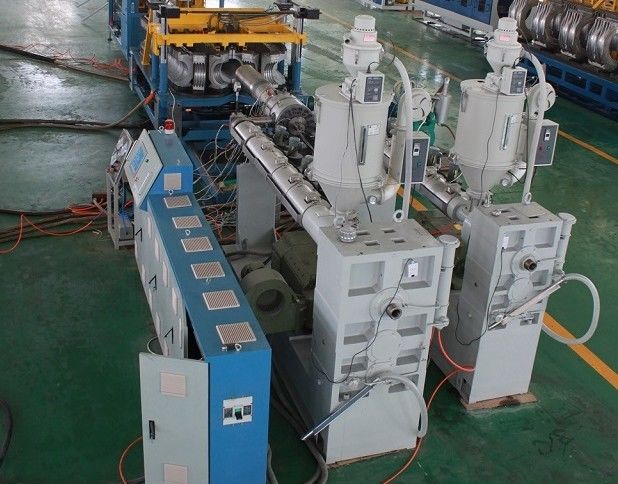

01 Single Screw Extruder SJ-90/30  1 set
02 Single Screw Extruder SJ-75/30  1 set

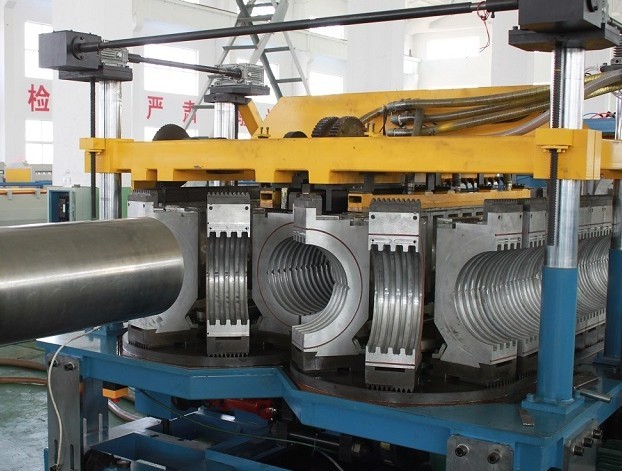

03 Molds 模具

200mm die head water sleeve mould block

200mm

4sets


225mm die head water sleeve mould block

225mm




300mm die head water sleeve mould block

300mm




400mm die head water sleeve mould block

400mm

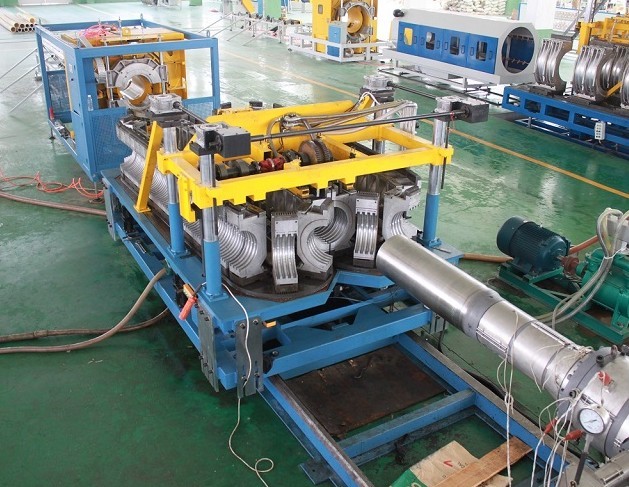

04 Forming Machine SBCJ-400  1 set
05 Water Cooling Tank  1 set
06 Cutting Machine STG-400  1 set
07 Unloading Bracket SBXL-400  1 set
08 PLC Control System SBG 400 PLC 1 set









55kw Double Wall HDPE Corrugated Pipe Extrusion Line 055kw Double Wall HDPE Corrugated Pipe Extrusion Line 1

55kw Double Wall HDPE Corrugated Pipe Extrusion Line 2



Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.



In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.

Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
