Place of Origin: | Shandong, China |
Brand Name: | HUASU |
Certification: | CE, ISO9001 |
Model Number: | SBG 500 |
Minimum Order Quantity: | 1 sets |
---|---|
Packaging Details: | standard package or as required |
Delivery Time: | 60 working days |
Payment Terms: | T/T |
Supply Ability: | 20 sets / month |
Pipe OD: | 300-500mm | L:D: | 30:1 |
---|---|---|---|
Extruder: | SJ90/30 & SJ-75/30 | AC Motor: | 110kw |
Inverter: | FUJI (Japan) Or ABB | Max. Output: | 20MT/day |
Cooling Type: | Air Cooling And Water Cooling | Feeding System: | Auto |
Operation Direction: | From Right To Left | Molds: | Die Heads/ Water Sleeve/Mould Block |
High Light: | OD500mm PE Pipe Extrusion Line,110kw PE Pipe Extrusion Line,320kg/H PE Pipe Extrusion Line |

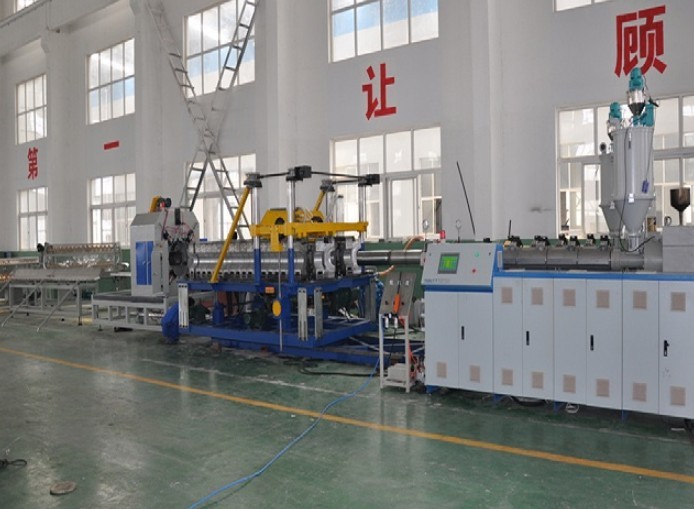

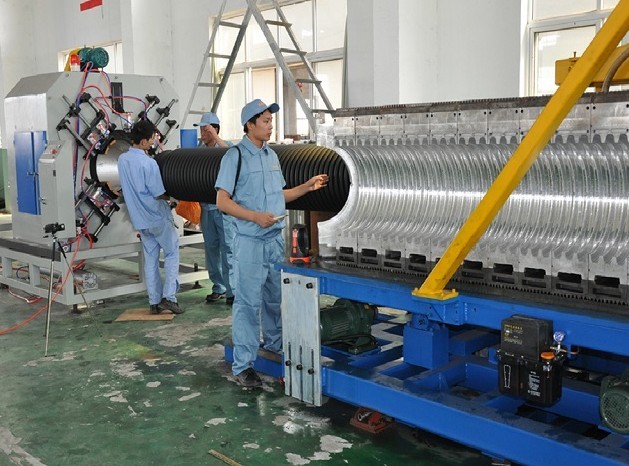

HDPE Double Wall Corrugated Pipe Line SBG 500
Can Make Pipe Diameter ID200-400mm
It is widely used in producing HDPE water supply pipes, gas supply pipes. It can make HDPE pipes with diameter from 16mm to 1200mm. With many years of plastic machinery development and design experience, this Hot sell best-selling small diameter pvc hdpe pe ppr plastic pipe production extrusion machine line with price has the unique structure, the design is novel, the equipment entire line layout is reasonable, the control performance is reliable. By different requirement, this HDPE pipe line could be designed as multiply-layer pipe extrusion line.
Process
material Hopper → PE pipe extruder → marking line extruder → mould → calibrator → vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack (or according to the customer's requirements)
Features
1. The extruder of HDPE pipe line adopt high efficiency screw & barrel, the gearbox is hardening teeth gearbox with self-lubrication system. The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.
2. This PE pipe line is composed by material charger+ Single screw extruder + pipe mold + vacuum calibration tank + spraying cooling tank x 2sets + three caterpillar haul-off machine + no-dust cutter+ stacker.
3. The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless steel 304#. The excellent vacuum system ensures the precise sizing for pipes; spraying cooling will improve the cooling efficiency; Auto water temperature control system make the machine more intelligent.
4. The haul-off machine of this pipe line will adopt caterpillars type. With meter code, it can count the pipe length during the production. Cutting system adopt no-dust cutter with PLC control system.
NO.
|
Internal Diameter( mm)
|
Outside Diameter ( mm)
|
1 | 300 | |
2 | 350 | |
3 | 400 | |
4 | 450 | |
5 | 500 |
Extruder
|
Motor
|
Max. Output
|
SJ90/30 | 110kw | 320kg/h |
SJ75/30 | 55kw | 160kg/h |
No.
|
Name & Model
|
Quantity
|
|
01 | Single Screw Extruder SJ-90/30 | 1 set | |
02 | Single Screw Extruder SJ-75/30 | 1 set | |

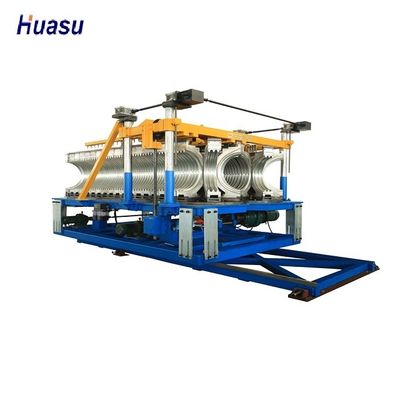

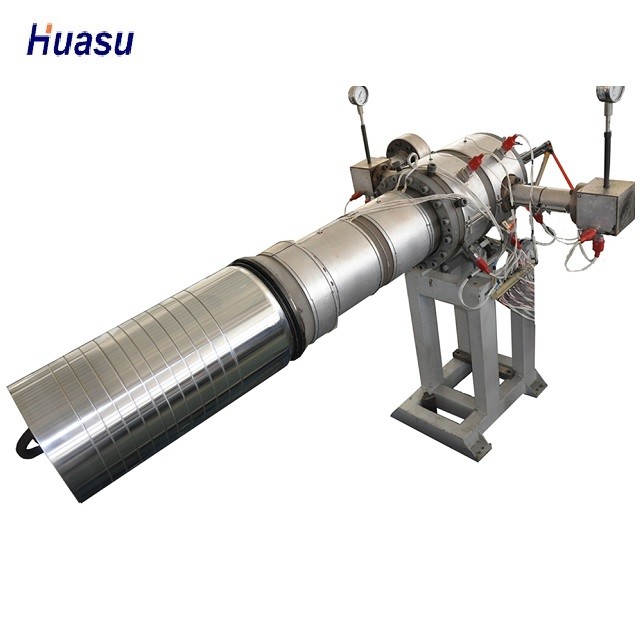

03 | Molds 模具 |
300mm die head water sleeve mould block 300mm |
5 sets |
350mm die head water sleeve mould block 350mm |
|||
400mm die head water sleeve mould block 400mm |
|||
450mm die head water sleeve mould block 450mm |
|||
500mm die head water sleeve mould block 500mm |
|||
04 | Forming Machine SBCJ-500 | 1 set | |
05 | Water Cooling Tank | 1 set | |

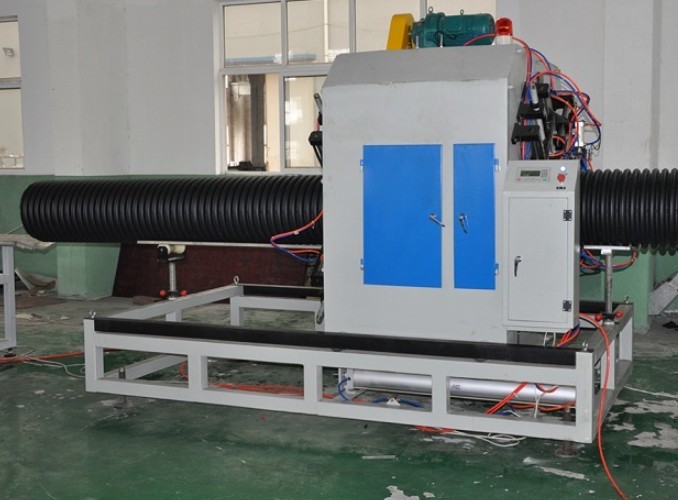

06 | Cutting Machine STG-500 | 1 set | |
07 | Unloading Bracket SBXL-500 | 1 set | |
08 | PLC Control System SBG 500 PLC | 1 set |
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
