Water Supply 260kg/H 75kw OD200mm PE Pipe Extrusion Line
Product Details:
Place of Origin: Shandong, China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SRQG-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Pipe OD: 75-200mm L:D: 30:1
Extruder: SJ90/30 & SJ30/25 AC Motor: 75kw
Inverter: FUJI (Japan) Or ABB Max. Output: 20MT/day
Cooling Type: Air Cooling And Water Cooling Feeding System: Auto
Operation Direction: From Right To Left Molds: Die Heads/ Water Sleeve/Mould Block
Gearbox: Hard Gear Surface
High Light:

OD200mm PE Pipe Extrusion Line

,

75kw PE Pipe Extrusion Line

,

260kg/H HDPE Pipe Extrusion Line

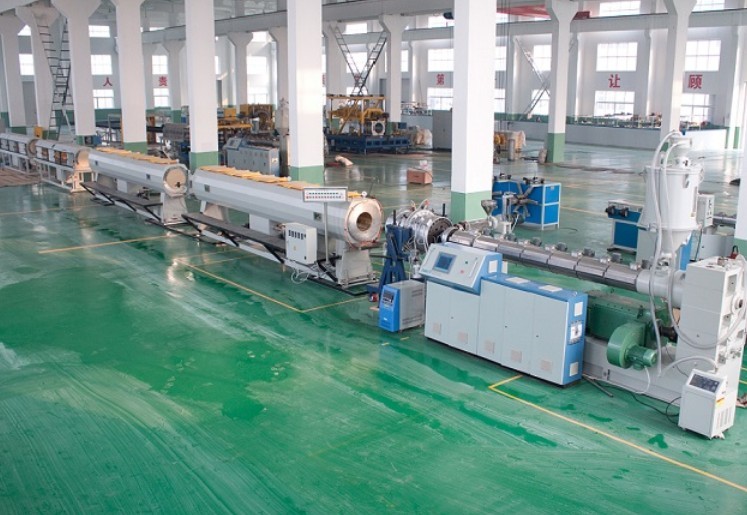

PE PIPE EXTRUSION LINE SRQG-200

  • Application: Water supply and gas distribution
  • Pipe length: according the customer’s inquiry
  • Recommended raw material: PE80, PE100 material for PE pipe



φ16-800mm PE HDPE plastic pipe making machine/ PE HDPE pipe extrusion line/PE HDPE pipe production line is mainly used to manufacture for PE plastic pipe.





NO.



Inner Diameter( mm)



Outside Diameter ( mm)



1   75
2   90
3   110
4   125
5   140
6   160
7   200



Extruder

Motor

Max Output

SJ90/30 75kw 260kg/h
SJ30/25 1.5kw 10kg/h





No.



Name&Model



Quantity



1.0 Single Screw Extruder SJ 90/30  1set

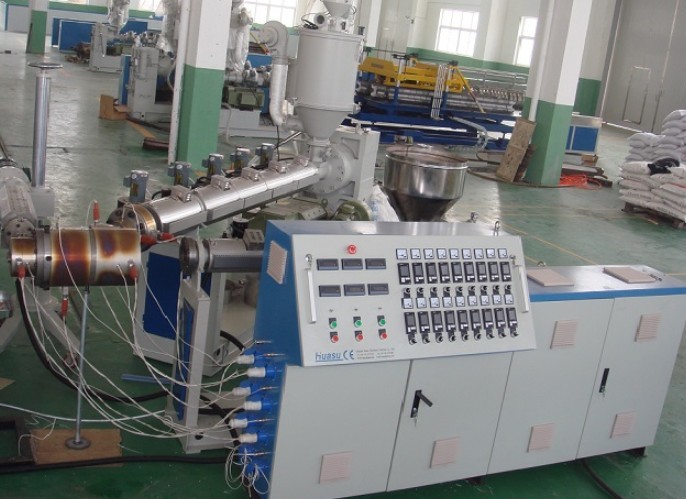

2.0 Single Screw Extruder SJ 30/25 1set

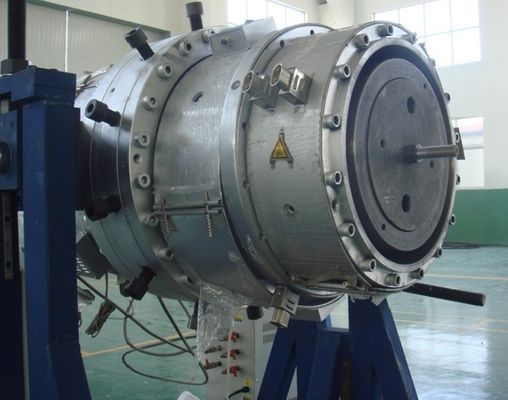

3.0 Die head  1set

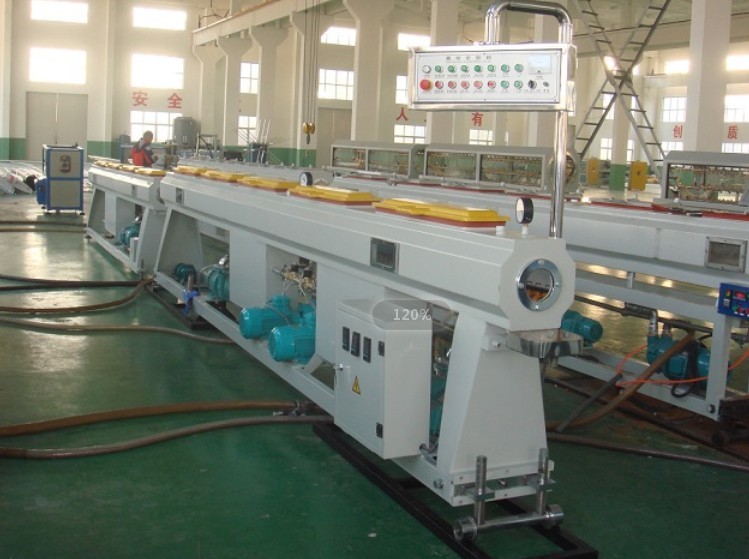

4.0 Vacuum Tank  1set
5.0 Water Spraying Cooling Tank  1set
6.0 Hauling—Off Machine  1set
7.0 Printer  1set
8.0 Planetary Cutting Machine  1set
9.0 Overturning Bracket  1set
10.0 PLC Control System PLC 1set


Water Supply 260kg/H 75kw OD200mm PE Pipe Extrusion Line 0

Water Supply 260kg/H 75kw OD200mm PE Pipe Extrusion Line 1









Water Supply 260kg/H 75kw OD200mm PE Pipe Extrusion Line 2



Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.



In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.

Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
