Place of Origin: | Shandong, China |
Brand Name: | HUASU |
Certification: | CE, ISO9001 |
Model Number: | SRQG-250 |
Minimum Order Quantity: | 1 sets |
---|---|
Packaging Details: | standard package or as required |
Delivery Time: | 60 working days |
Payment Terms: | T/T |
Supply Ability: | 20 sets / month |
Pipe OD: | 75-250mm | L:D: | 33:1 |
---|---|---|---|
Extruder: | SJ90/33 & SJ30/25 | AC Motor: | 75kw |
Inverter: | FUJI (Japan) Or ABB | Max. Output: | 300-450kg/h |
Cooling Type: | Air Cooling And Water Cooling | Feeding System: | Auto Machine |
Operation Direction: | From Right To Left Or As Required | Molds: | Die Heads/ Water Sleeve/Mould Block |
Gearbox: | Hard Gear Surface | ||
High Light: | 450kg/H Hdpe Pipe Extruder,75kw Hdpe Pipe Extruder,OD250mm Hdpe Pipe Extruder |
PE PIPE EXTRUSION LINE SRQG-250
Description of Corrugated Drain Pipe/ PE/ PP Double Wall Corrugated Pipe Extrusion Line :
Corrugated Drain Pipe/ PE/ PP Double Wall Corrugated Pipe Extrusion Line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

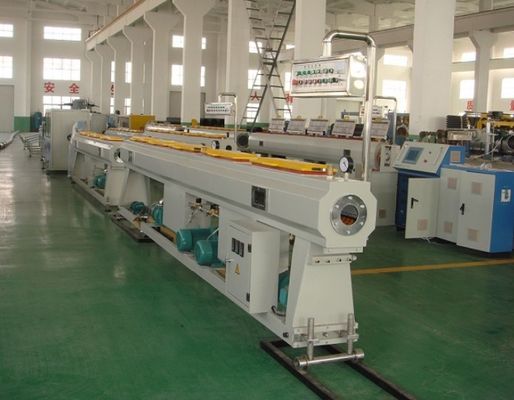

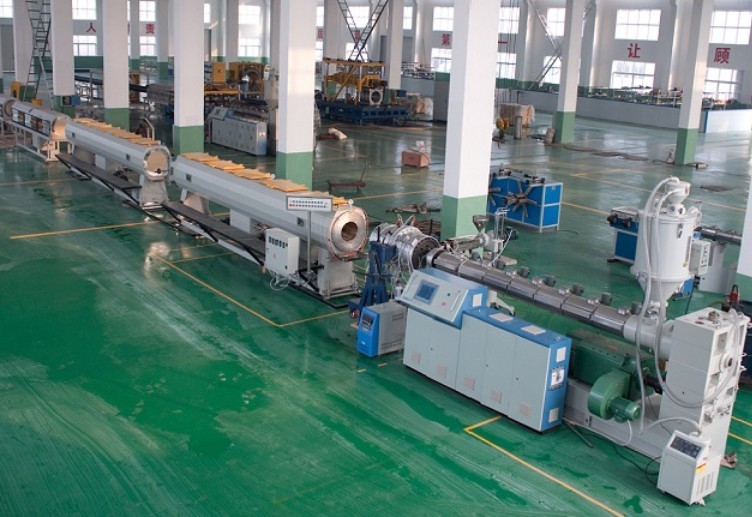

This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 630mm
NO.
|
Inner Diameter( mm)
|
Outside Diameter ( mm)
|
1 | 75 | |
2 | 90 | |
3 | 110 | |
4 | 125 | |
5 | 140 | |
6 | 160 | |
7 | 180 | |
8 | 200 | |
9 | 250 |
Extruder
|
Motor
|
Max Output
|
SJ90/33 | 132kw | 300-450kg/h |
SJ30/25 | 1.5kw | 5-10kg/h |
No.
|
Name&Model
|
Quantity |
1.0 | Single Screw Extruder SJ 90/33 | 1set |
2.0 | Single Screw Extruder SJ 30/25 | 1set |
3.0 | Die head | 1set |

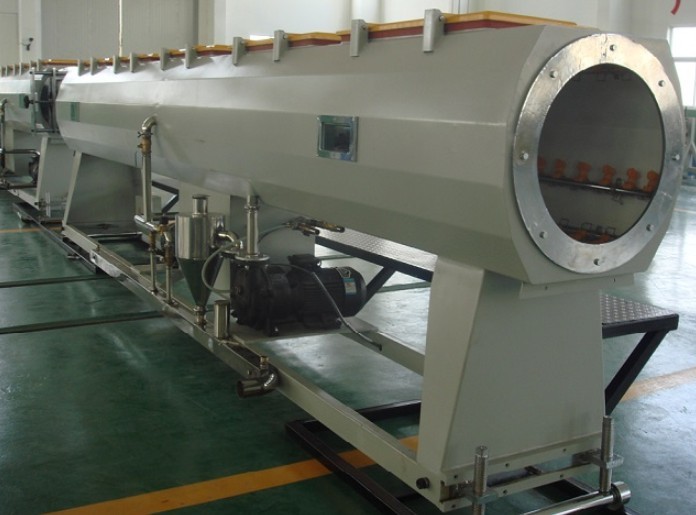

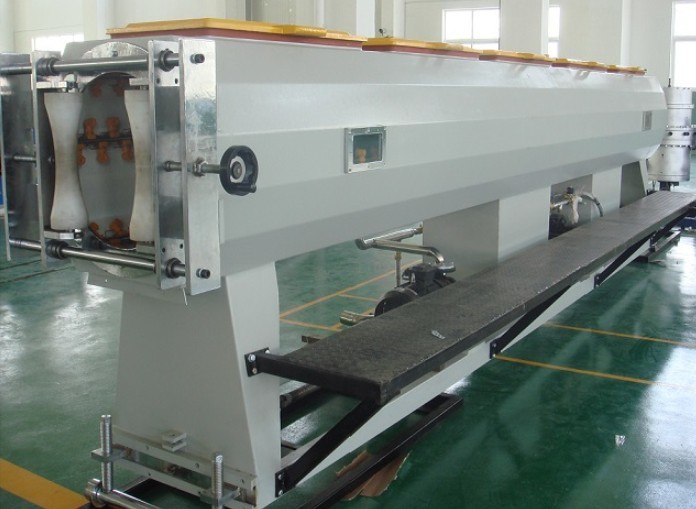

4.0 | Vacuum Tank | 1set |

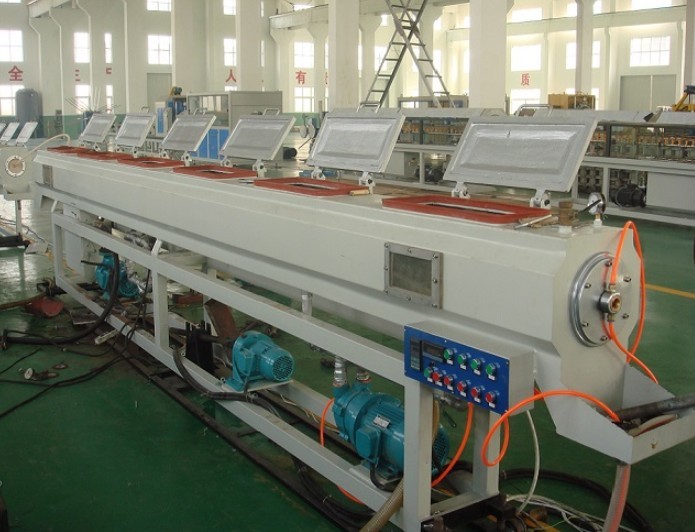

5.0 | Water Spraying Cooling Tank | 2set |
6.0 | Hauling—Off Machine | 1set |
7.0 | YYJ Serial Metering Printer | 1set |
8.0 | Planetary Cutting Machine | 1set |
9.0 | Overturning Bracket | 1set |
10.0 | PLC Control System | 1set |
The tube production adopts the direct extrusion technology, which has high production efficiency and reliable quality. The products are made of PE, PP, PVC and other raw materials are produced.
Due to its excellent pipe wall structure design, PE Double-Wall Corrugated Pipe Extrusion Line/ PP PVC Corrugated Pipe Extrusion Line, light weight, high pressure resistance, good toughness, corrosion resistance, good wear resistance, convenient construction, low installation cost, long service life, etc., which greatly reduces the cost of pipe, improves the market competitiveness of pipe, and makes the connection convenient and reliable without special complex pipe fittings It has been widely used in China and has been widely replaced by traditional concrete pipe and cast iron pipe.
