| Place of Origin: | Shandong, China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | SRQG-315 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets / month |
| Pipe OD: | 110-315 Mm | L:D: | 33:1 |
|---|---|---|---|
| Extruder: | SJ90/33 & SJ30/25 | AC Motor: | 132kw |
| Inverter: | FUJI (Japan) Or ABB | Max. Output: | 450kg/h |
| Cooling Type: | Air Cooling And Water Cooling | Feeding System: | Auto Machine |
| Operation Direction: | From Right To Left Or As Required | Molds: | Die Heads/ Water Sleeve/Mould Block |
| Gearbox: | Hard Gear Surface | ||
| High Light: | HDPE Plastic Pipe Extruder,132kw Plastic Pipe Extruder,450kg/h Hdpe Pipe Extruder |
||

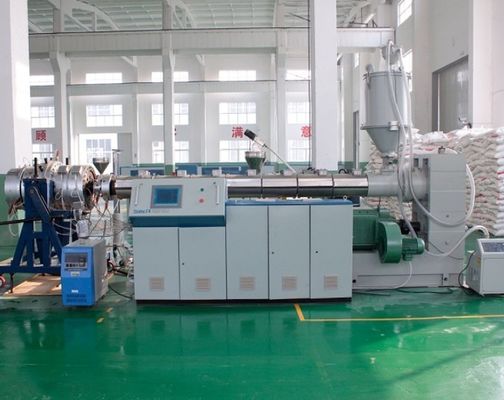

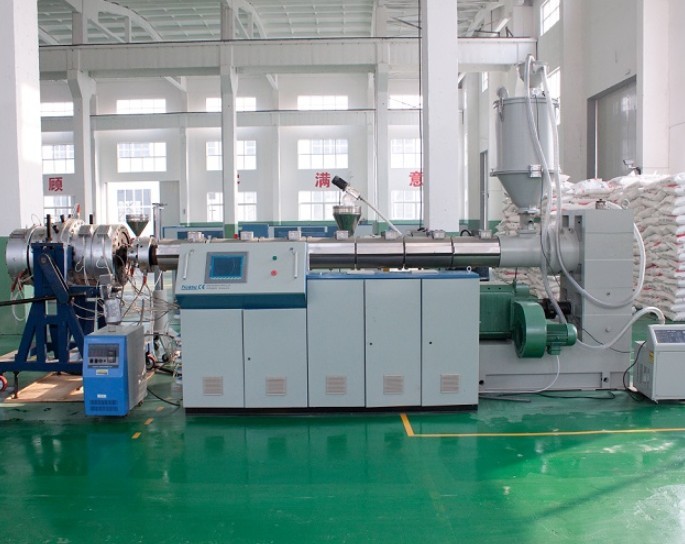

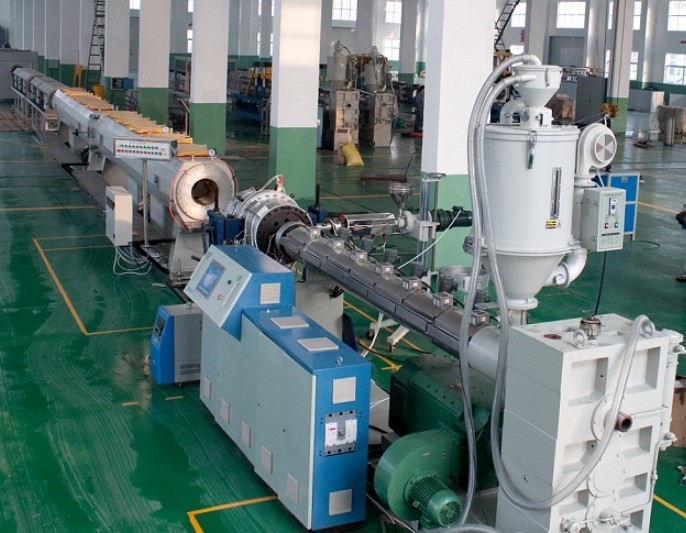

PE water supply pipe production line / 110-315mm HDPE Pipe Making Machine
|
NO.
|
Inner Diameter( mm)
|
Outside Diameter ( mm)
|
| 1 | 75 | |
| 2 | 90 | |
| 3 | 110 | |
| 4 | 125 | |
| 5 | 140 | |
| 6 | 160 | |
| 7 | 180 | |
| 8 | 200 | |
| 9 | 250 |
|
Extruder
|
Motor
|
Max Output
|
| SJ90/33 | 132kw | 300-450kg/h |
| SJ30/25 | 1.5kw | 5-10kg/h |
|
No.
|
Name&Model
|
Quantity |
| 1.0 | Single Screw Extruder SJ 90/33 | 1set |
| 2.0 | Single Screw Extruder SJ 30/25 | 1set |
| 3.0 | Die head | 1set |
| 4.0 | Vacuum Tank | 1set |
| 5.0 | Water Spraying Cooling Tank | 2set |
| 6.0 | Hauling—Off Machine | 1set |
| 7.0 | YYJ Serial Metering Printer | 1set |
| 8.0 | Planetary Cutting Machine | 1set |
| 9.0 | Overturning Bracket | 1set |

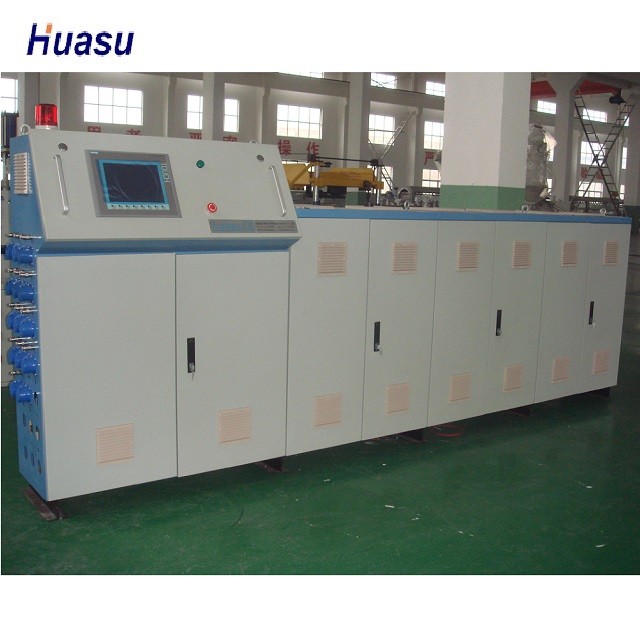

| 10.0 | PLC Control System | 1set |
Pre-sale service
lInquiry and consulting support
lA complete customized solution
lTesting support
lQuotation and specification
lView our factory
After-Sales Service
lOne year warranty
lTraining how to install the machine
lTraining how to use the machine
lOur engineers are available to service machinery overseas, but all the chargers should be paid by the buyer.
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
