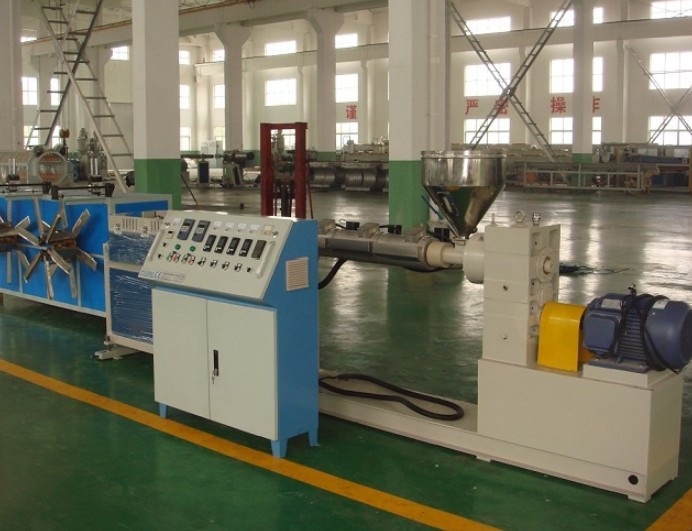

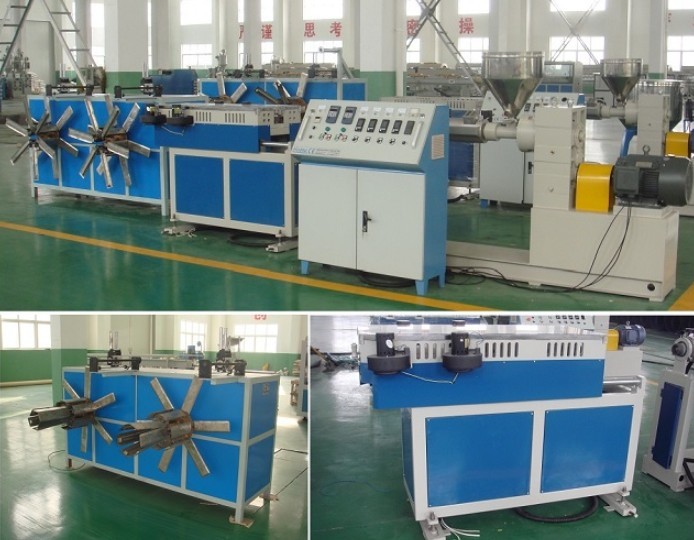

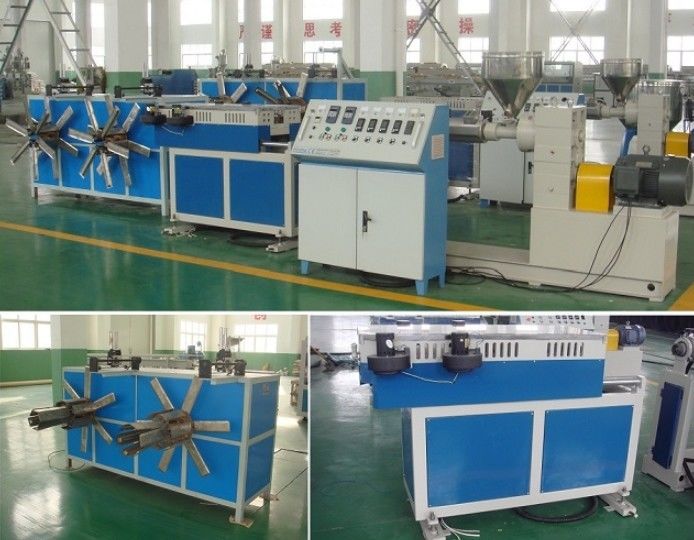

4mm 12mm Single Wall Corrugated Pipe Extrusion Line
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | HUASU |
| Certification | CE, ISO9001 |
| Model Number | SBG-12 |
| Minimum Order Quantity | 1 sets |
| Packaging Details | standard package or as required |
| Delivery Time | 60 working days |
| Payment Terms | T/T |
| Supply Ability | 20 sets / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe OD | 4-12 Mm | LD | 30:1 |
|---|---|---|---|
| Extruder | SJ30/30 | Motor | AC Motor 2.2kw |
| Inverter | Hitachi, Japan | Max. Output | 10 Kg/h |
| Die Head Material | 40Cr | ||
| Highlight | 12mm Corrugated Pipe Extrusion Line,10kg/H Corrugated Pipe Extrusion Line,2.2kw Electrical Conduit Extrusion Line |
||
Product Description
Single Wall Corrugated Pipe Production Line SBG-12
-
Application: Electrical conduit
-
Pipe length: according the customer’s inquiry
-
Recommended raw material: new material for PE single wall corrugated pipe
|
NO.
|
Inner Diameter( mm)
|
Outside Diameter ( mm)
|
|
1 |
4 |
|
|
2 |
6 |
|
|
3 |
8 |
|
|
4 |
12 |
|
|
Extruder
|
Motor
|
Max Output
|
|
SJ30×30 |
2.2kw |
8-10kg/h |
|
No.
|
Name & Model
|
Quantity
|
|
|
1.0 |

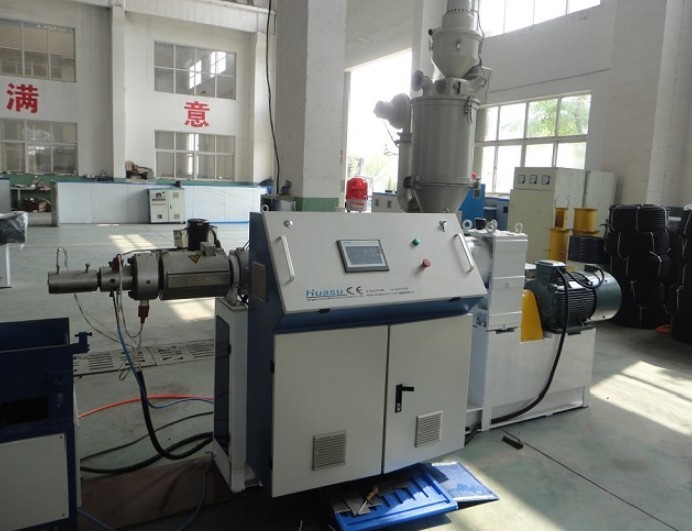

Single Screw Extruder SJ30/30 |
1 set |
|
|
2.0 |
Molds |
4mm die head mould block 4mm |
4 sets |
|
|
|
6mm die head mould block 6mm |
|
|
|
|
8mm die head mould block 8mm |
|
|
|
|
12mm die head mould block 12mm |
|
|
3.0 |
Forming Machine |
1 set |
|
|
4.0 |

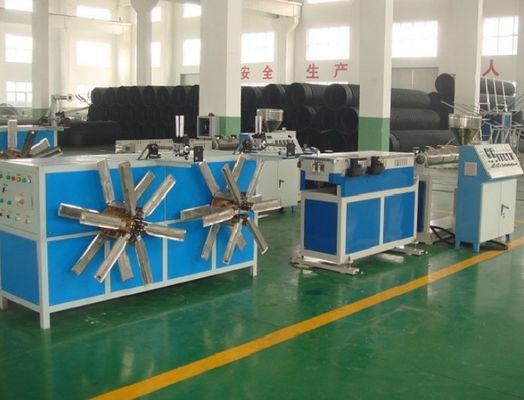

Winding Machine |
1 set |
|
|
5.0 |
Control System |
1 set |
|
The advantages of plastic corrugated pipes
1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission
capacity;
4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its
flexibility,so that it can be laid on the uneven ground continuously.
6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.
7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.
8. safe insulation, is an ideal material for the electric wire conduit.
The plastic corrugated pipe equipment unit mainly uses polyvinyl chloride and other auxiliary materials as raw materials to produce large-diameter double-wall corrugated pipe. Due to its unique structure, the pipe has the advantages of light weight, good impact resistance, high ring stiffness, strong corrosion resistance, cold resistance and heat resistance. It is widely used in power cable sheathing pipes, urban drainage (water supply), agricultural irrigation. , underground seepage irrigation and building water supply.
