Name: 20MT/Day 40Cr Die Head 250mm MPP PE Pipe Extrusion Line
Brand: Shandong Huasu Plastic Technology Co., Ltd
SKU: SBG 315
Availability: InStock

Home > Products > HDPE Pipe Extrusion Line >

20MT/Day 40Cr Die Head 250mm MPP PE Pipe Extrusion Line

MPP PE Pipe Extrusion Line

250mm HDPE Pipe Extrusion Line

20MT/Day HDPE Pipe Extrusion Line

Place of Origin:

Shandong, China

Brand Name:

HUASU

Certification:

CE, ISO9001

Model Number:

SBG 315

Request A Quote

20MT/Day 40Cr Die Head 250mm MPP PE Pipe Extrusion Line

Product Details

Pipe OD:

90-250 Mm

L:D:

33:1

Extruder:

SJ65/33 & SJ90/33

Motor:

AC Motor 37kw

Inverter:

Hitachi, Japan

Max. Output:

20 MT/day

Die Head Material:

40Cr

Molds:

90mm, 110mm, 160mm, 200mm, 250mm

Highlight:

MPP PE Pipe Extrusion Line

250mm HDPE Pipe Extrusion Line

20MT/Day HDPE Pipe Extrusion Line

Payment & Shipping Terms

Minimum Order Quantity

1 sets

Packaging Details

standard package or as required

Delivery Time

60 working days

Payment Terms

T/T

Supply Ability

20 sets / month

High Productivity Energy Saving Automatic HDPE Pipe Extrusion Line for Corrugated Plastic Pipes

Get Best Price

Video

Automatic HDPE Pipe Extrusion Line with Siemens PLC Control for High Productivity Corrugated Pipe Production

Get Best Price

Video

32mm - 1600mm Pipe Diameter HDPE Corrugated Pipe Making Machine with Siemens PLC Control and 100-2000kg/h Output

Get Best Price

Video

32mm to 1600mm Pipe Diameter Range HDPE Pipe Extrusion Line with Air Cooling and Water Cooling Featuring Siemens PLC Control

Get Best Price

Contact Now

Product Description

HDPE Double Wall Corrugated Pipe Line SBG 250

Application: electric conduit
Pipe length: according the customer’s inquiry
Recommended raw material: new material for PE single wall corrugated pipe

NO.	Internal Diameter( mm)	Outside Diameter ( mm)
1	90
2	110
3	160
4	200
5	250

Extruder

Motor

Max. Output

SJ90/30

75kw

150-260kg/h

SJ65/30

37kw

60-120kg/h

No.	Name & Model		Quantity
01	Single Screw Extruder SJ90X30		1 set
02	Single Screw Extruder SJ65X30		1 set
03	Molds	90mm die head water sleeve mould block 90mm	5sets
		110mm die head water sleeve mould block 110mm
		160mm die head water sleeve mould block 160mm
		200mm die head water sleeve mould block 200mm
		250mm die head water sleeve mould block 250mm

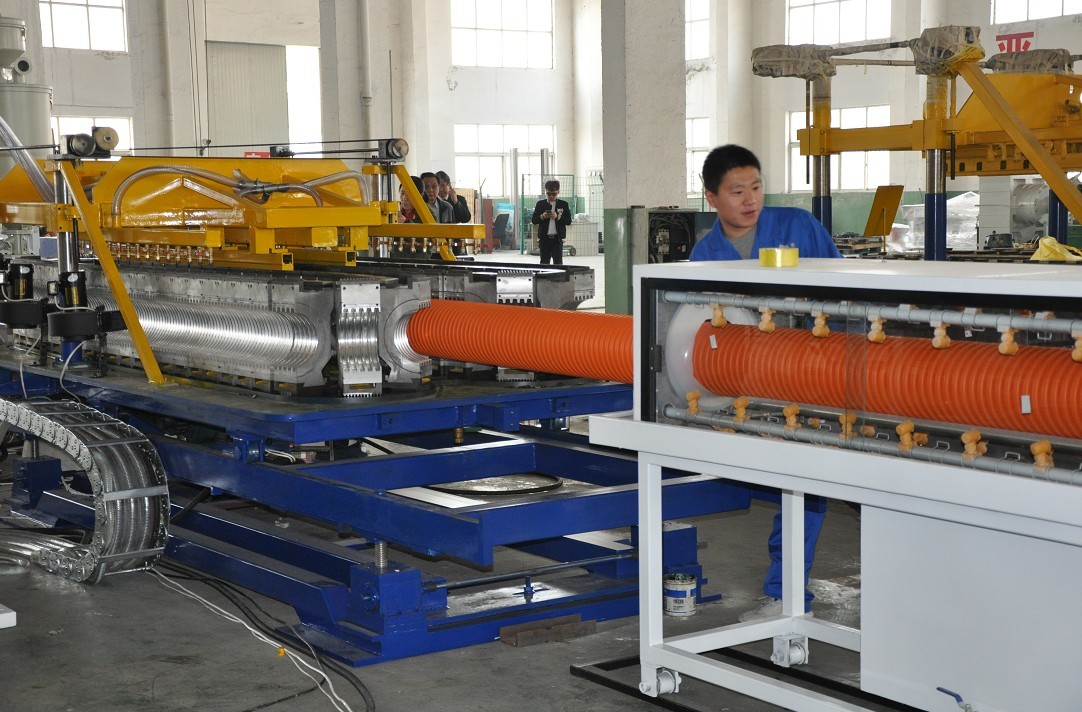

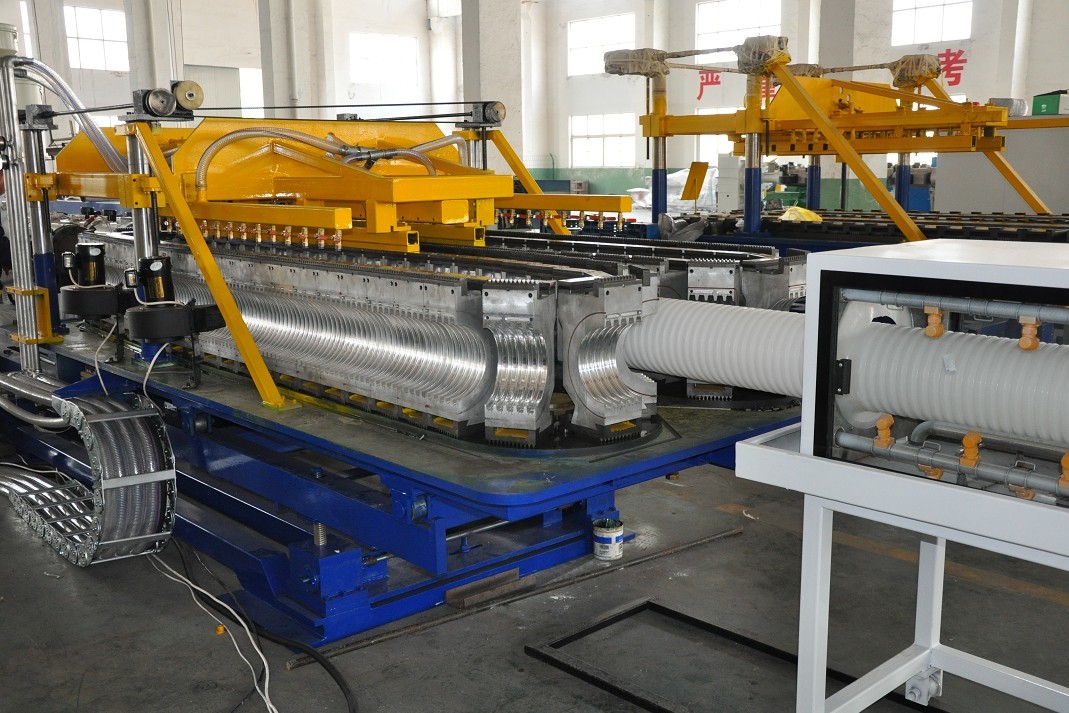

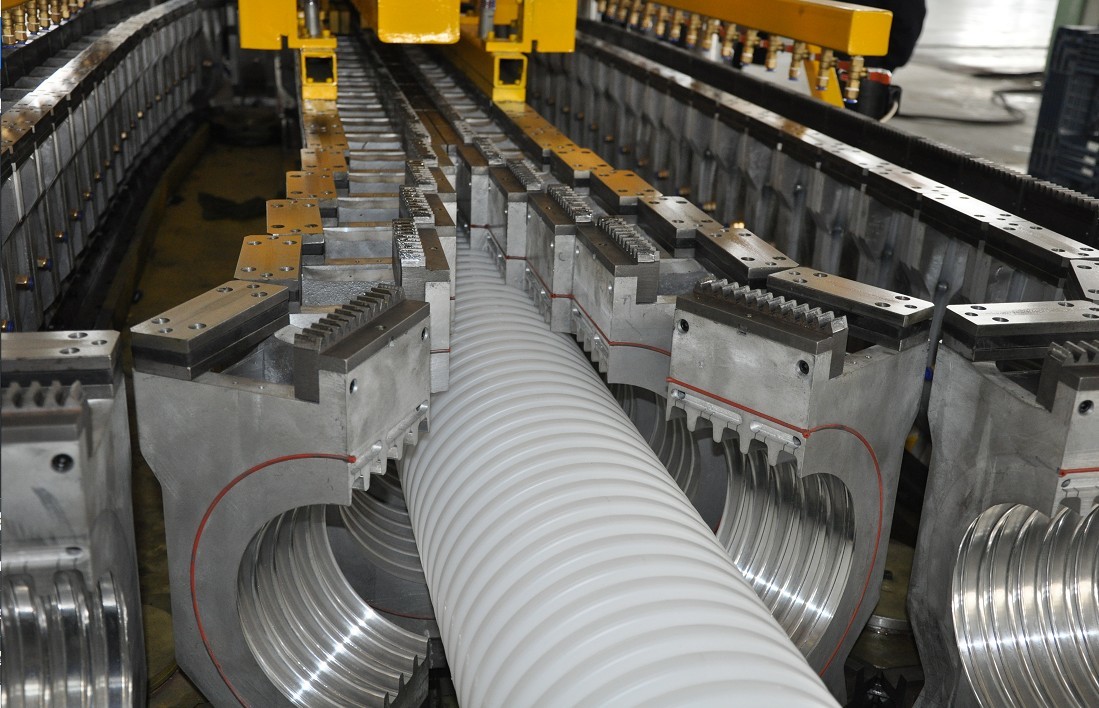

04	Forming Machine SBCJ-315		1 set
05	Cutting Machine STG-315		1 set
06	Unloading Bracket		1 set
07	PLC Control System SBG 315 PLC		1 set

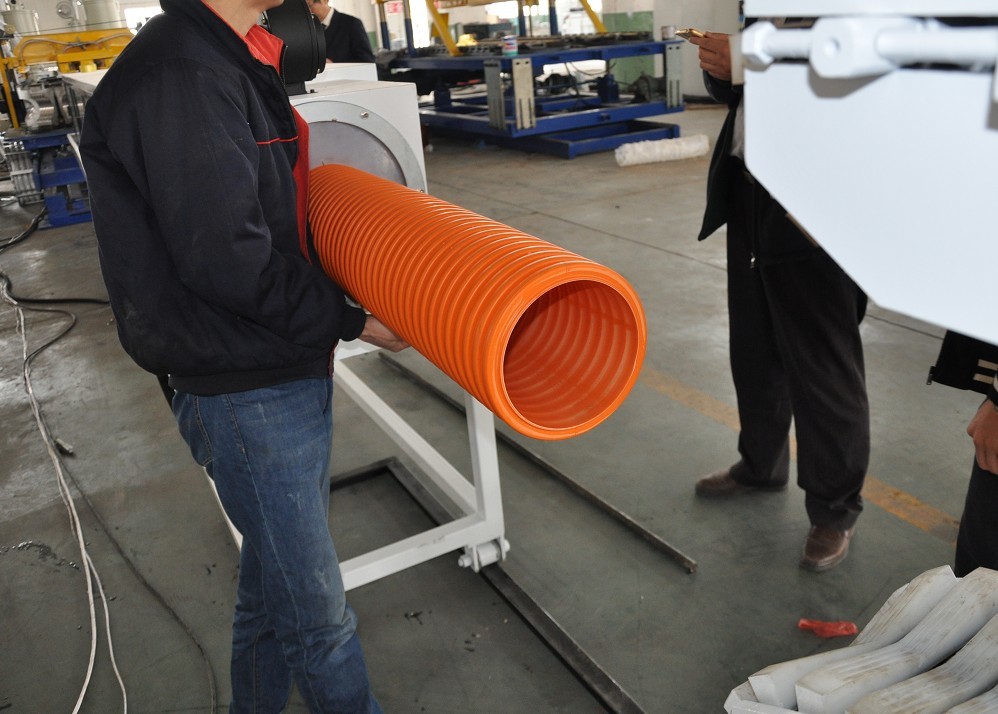

The advantages of plastic corrugated pipes

With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.

Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;

corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission

capacity;

Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.

Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its

flexibility,so that it can be laid on the uneven ground continuously.

Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.

Wide using temperature range, inflaming retarding, self-extinguish, safety in use.

safe insulation, is an ideal material for the electric wire conduit.
