CNC 20MT/Day ID90mm MPP HDPE Pipe Extrusion Line
Product Details:
Place of Origin: Shandong, China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SBG 250
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Pipe ID: 90-250 Mm L:D: 33:1
Extruder: SJ65/33 & SJ90/33 Motor: AC Motor
Inverter: Hitachi, Japan Max. Output: About 20 MT/day
Molds: 90mm, 110mm, 160mm, 200mm, 250mm Or As Required Unique Advantage: CNC
High Light:

MPP HDPE Pipe Extrusion Line

,

ID90mm HDPE Pipe Extrusion Line

,

PLC HDPE Pipe Extrusion Line

HDPE Double Wall Corrugated Pipe  Line SBG 250

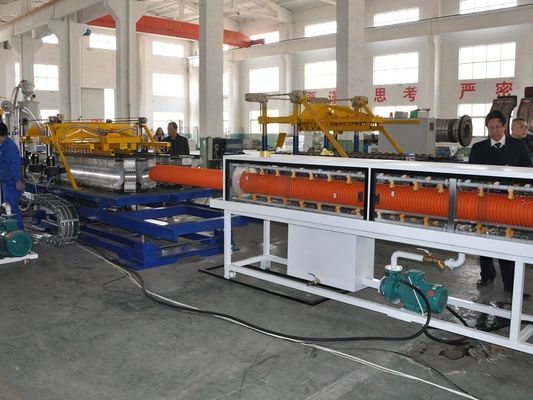

SBG250 (ID90mm - 250mm) double wall corrugated pipe line adopts two single screw extruders, double channel structure, nitriding polishing treatment die head.

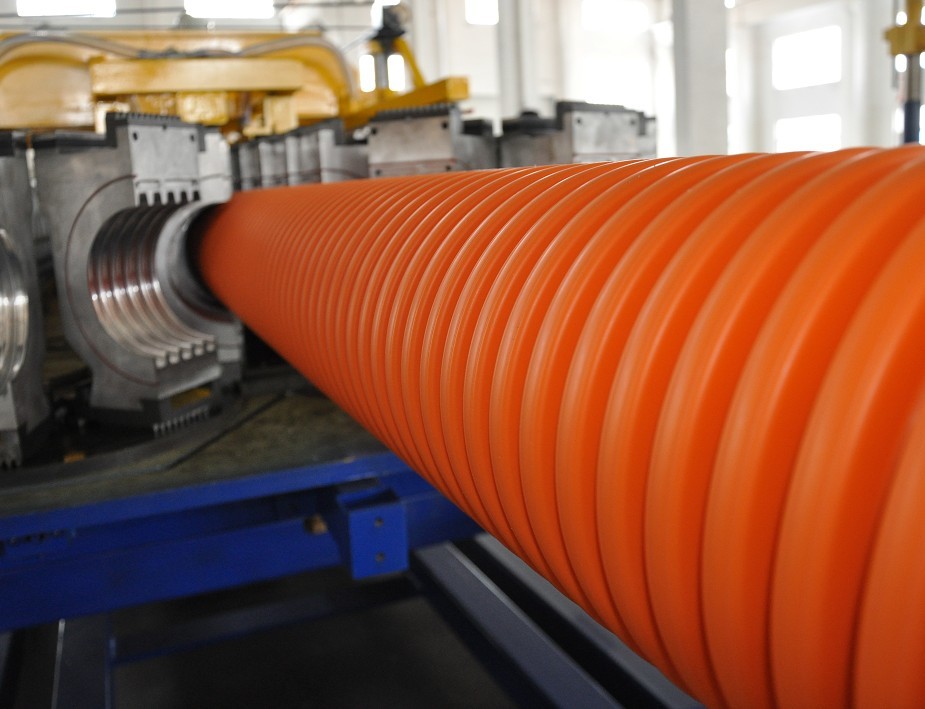

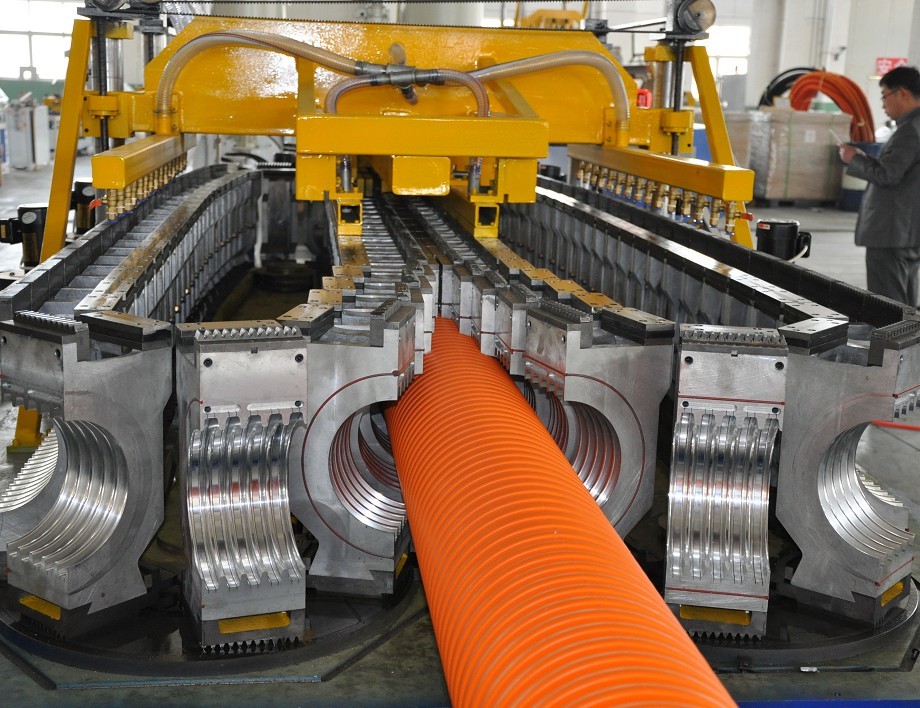

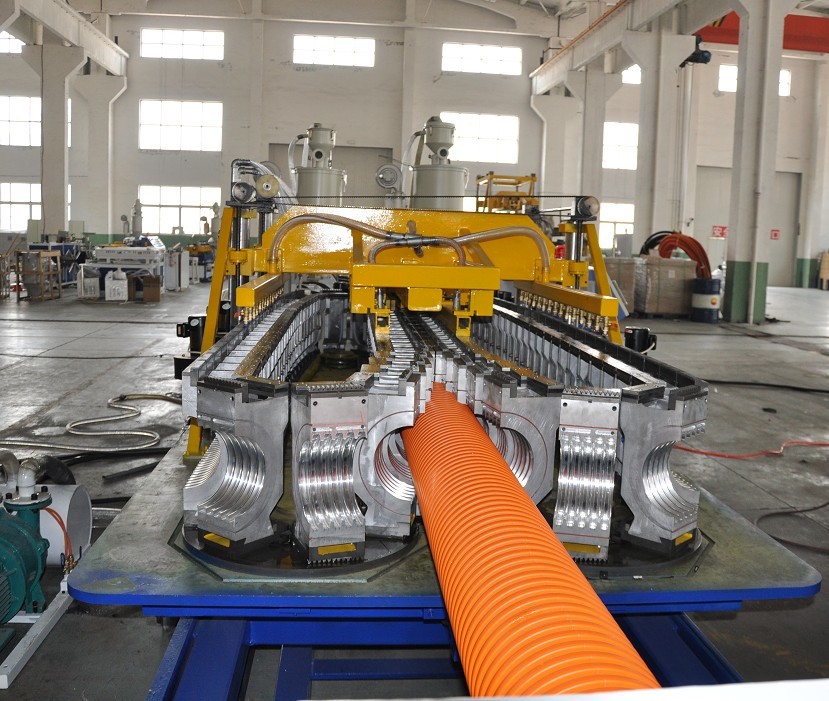

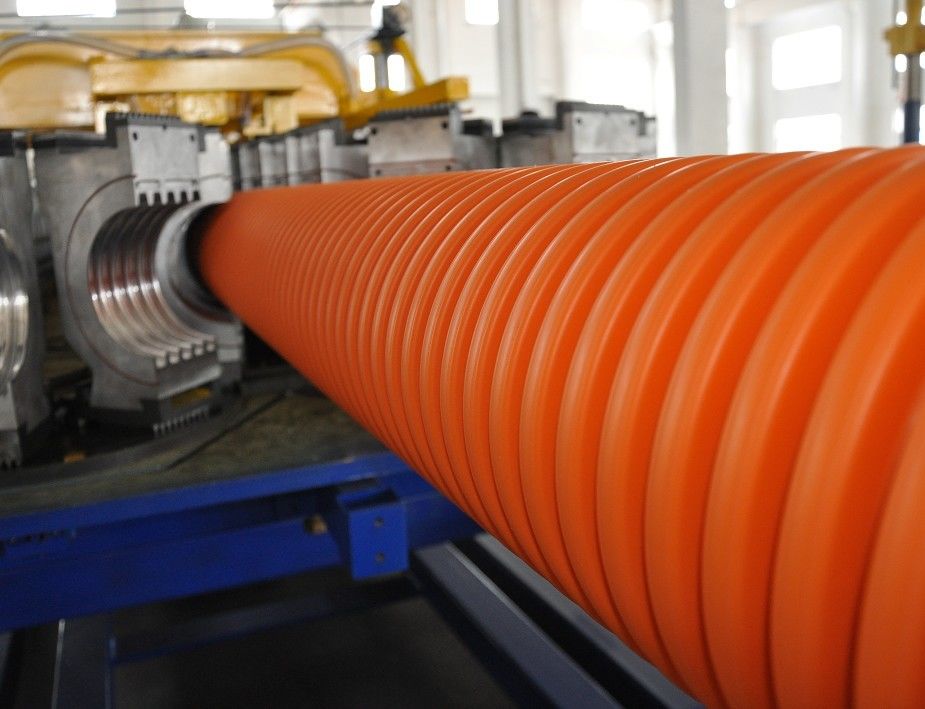

Corrugator adopts horizontal structure with chin type transmission and is equipped with advanced water cooling system and vacuum forming system, self-lubrication system and advanced two layers belling on line function.



Mould blocks adopt aluminum alloy. The whole production line adopts Siemens professional PLC control system, high automation, reliable running, easy operation.





NO.



Internal Diameter( mm)



Outside Diameter ( mm)


1 90
2 110
3 160
4 200
5 250



Extruder



Motor

Max. Output


SJ90/33 75kw 150-260kg/h
SJ65/33 37kw 60-120kg/h





No.



Name & Model



Quantity


01 Single Screw Extruder SJ90X33 1 set
02 Single Screw Extruder SJ65X33 1 set
03 Molds

90mm die head water sleeve mould block

90mm

 5 sets


110mm die head water sleeve mould block

110mm




160mm die head water sleeve mould block

160mm




200mm die head water sleeve mould block

200mm




250mm die head water sleeve mould block

250mm


04 Forming Machine SBCJ-315  1 set
05 Cutting Machine STG-315  1 set
06 Unloading Bracket  1 set
07 PLC Control System SBG 315 PLC 1 set

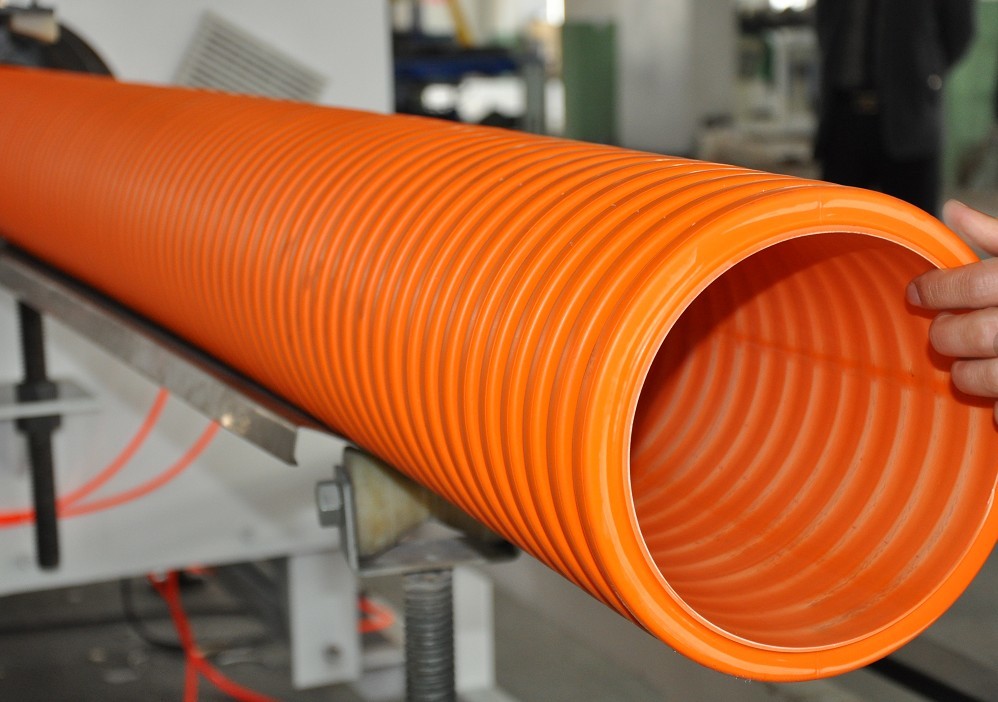

The advantages of plastic corrugated pipes


1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.

2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;

3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission
capacity;

4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.

5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its
flexibility,so that it can be laid on the uneven ground continuously.

6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.

7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.

8. safe insulation, is an ideal material for the electric wire conduit.
CNC 20MT/Day ID90mm MPP HDPE Pipe Extrusion Line 0CNC 20MT/Day ID90mm MPP HDPE Pipe Extrusion Line 1





Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.



In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.

Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
