Two Extruders 37kw 250mm PVC HDPE Pipe Extrusion Line
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | HUASU |
| Certification | CE, ISO9001 |
| Model Number | SBG 250 |
| Minimum Order Quantity | 1 sets |
| Packaging Details | standard package or as required |
| Delivery Time | 60 working days |
| Payment Terms | T/T |
| Supply Ability | 30 sets / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe ID | 90-250 Mm | LD | 33:1 |
|---|---|---|---|
| Extruder | SJ65/33 & SJ75/33 | Motor | AC Motor |
| Max. Output | About 20 MT/day | Unique Advantage | CNC |
| Feeding System | Auto | Inverter | FUJI (Japan) |
| Highlight | 250mm HDPE Pipe Extrusion Line,20 MT/day HDPE Pipe Line,37kw HDPE Pipe Extrusion Line |
||
Product Description

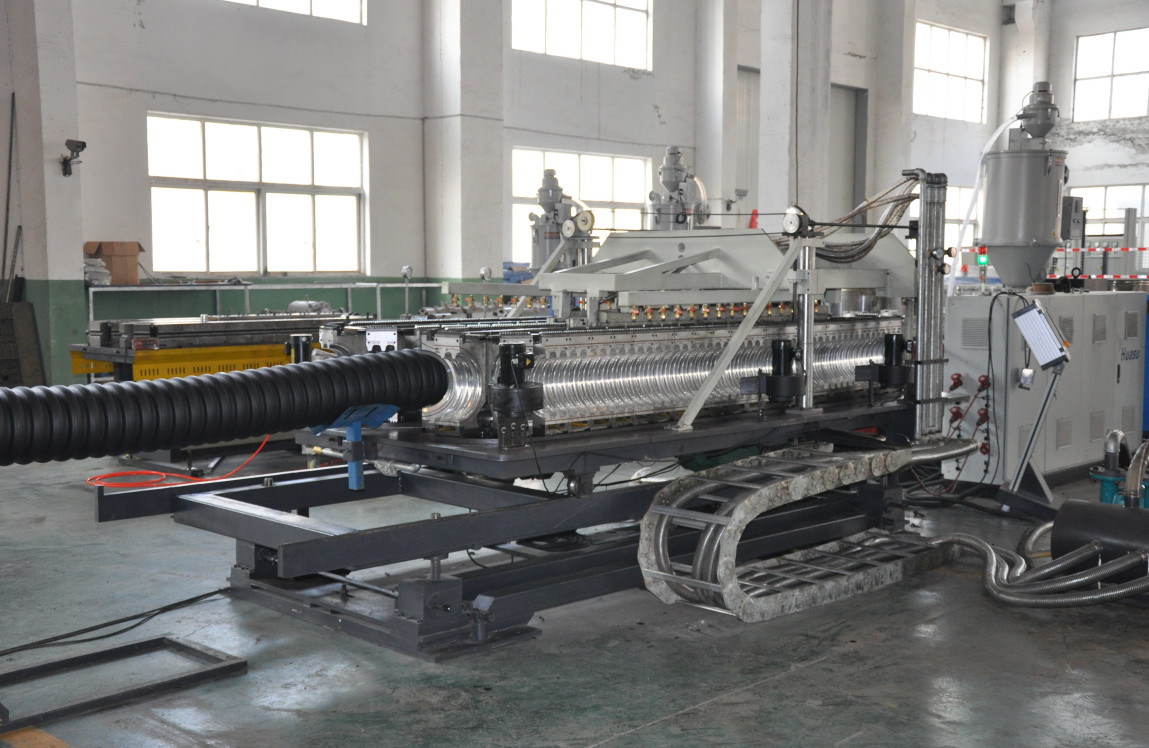

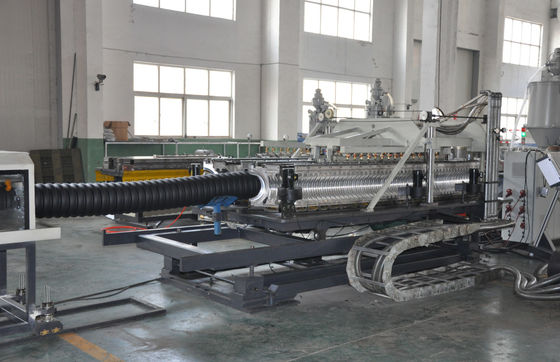

HDPE Double Wall Corrugated Pipe Line SBG 250
SBG250 (ID90mm - 250mm) double wall corrugated pipe line adopts two single screw extruders, double channel structure, nitriding polishing treatment die head.
Corrugator adopts horizontal structure with chin type transmission and is equipped with advanced water cooling system and vacuum forming system, self-lubrication system and advanced two layers belling on line function.
Mould blocks adopt aluminum alloy. The whole production line adopts Siemens professional PLC control system, high automation, reliable running, easy operation.
The molding machine head has high precision and good module interchangeability. The module cooling method includes water cooling and air cooling. It can realize on-line flaring and ensure various performance indexes of the forming pipe. The circular double-knife cutting machine has excellent cutting precision. The whole equipment adopts Siemens human-machine section control system, which has high self-control function. It can produce PE double-wall corrugated pipe by replacing extruder and related parts.
|
NO.
|
Internal Diameter( mm)
|
| 1 | 90 |
| 2 | 110 |
| 3 | 160 |
| 4 | 200 |
| 5 | 250 |
|
Extruder
|
Motor |
Max. Output
|
| SJ90/33 | 75kw | 260kg/h |
| SJ65/33 | 37kw | 120kg/h |
|
No.
|
Name & Model
|
Quantity
|
|
| 01 | Single Screw Extruder SJ75X33 | 1 set | |
| 02 | Single Screw Extruder SJ65X33 | 1 set | |

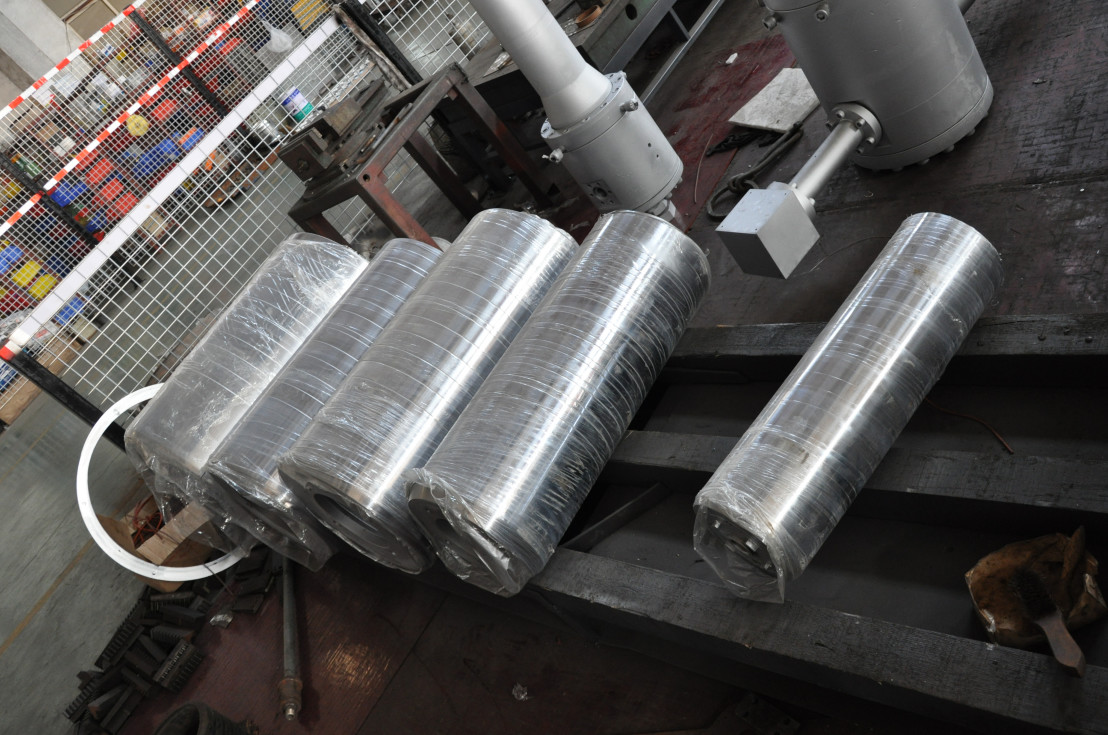

| 03 | Molds |
90mm die head water sleeve mould block 90mm |
1 set |
|
110mm die head water sleeve mould block 110mm |
1 set | ||
|
160mm die head water sleeve mould block 160mm |
1 set | ||
|
200mm die head water sleeve mould block 200mm |
1 set | ||
|
250mm die head water sleeve mould block 250mm |
1 set | ||
| 04 | Forming Machine SBCJ-315 | 1 set | |
| 05 | Cutting Machine STG-315 | 1 set | |
| 06 | Unloading Bracket | 1 set | |
| 07 | PLC Control System SBG 315 PLC | 1 set | |
The advantages of plastic corrugated pipes
1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission
capacity;
4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its
flexibility,so that it can be laid on the uneven ground continuously.
6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.
7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.
8. safe insulation, is an ideal material for the electric wire conduit.
