| Place of Origin: | Shandong, China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | SBG 600H |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 90 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets / month |
| Pipe ID: | 200/300/400/500/600 Mm | L:D: | 33:1 |
|---|---|---|---|
| Extruder: | SJ90/33 & SJ120/33 | Motor: | AC Motor |
| Max. Output: | About 20 MT/day | Unique Advantage: | CNC |
| Feeding System: | Auto | Inverter: | FUJI (Japan) Or ABB |
| Contactor: | Siemens | ||
| High Light: | 200mm HDPE Pipe Extrusion Line,300mm Corrugated Pipe Extrusion Line,450kg/h HDPE Pipe Extrusion Line |
||

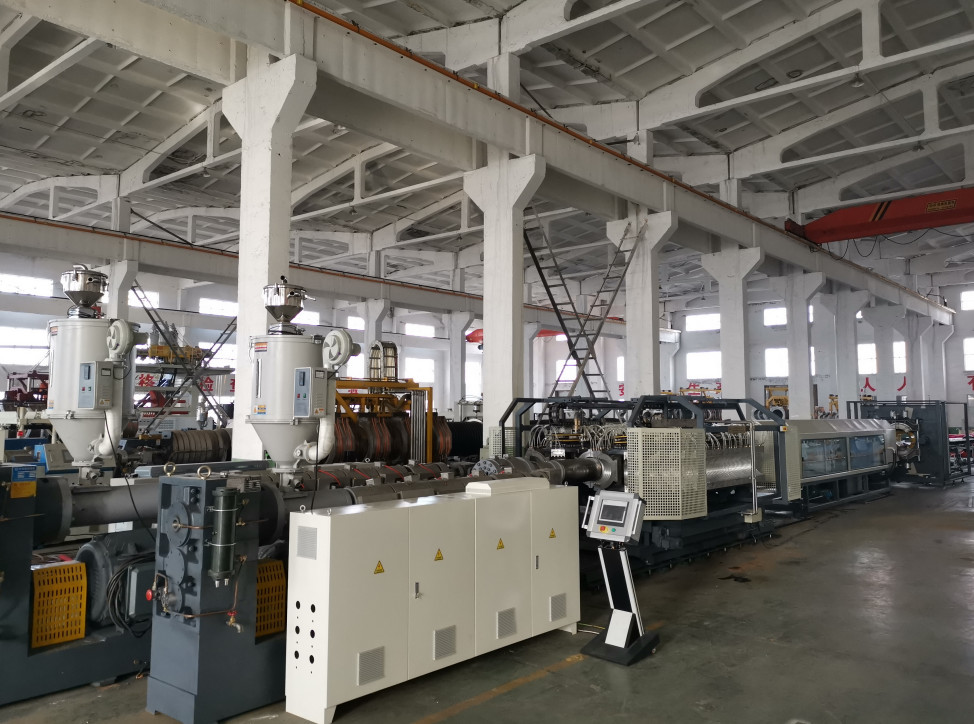

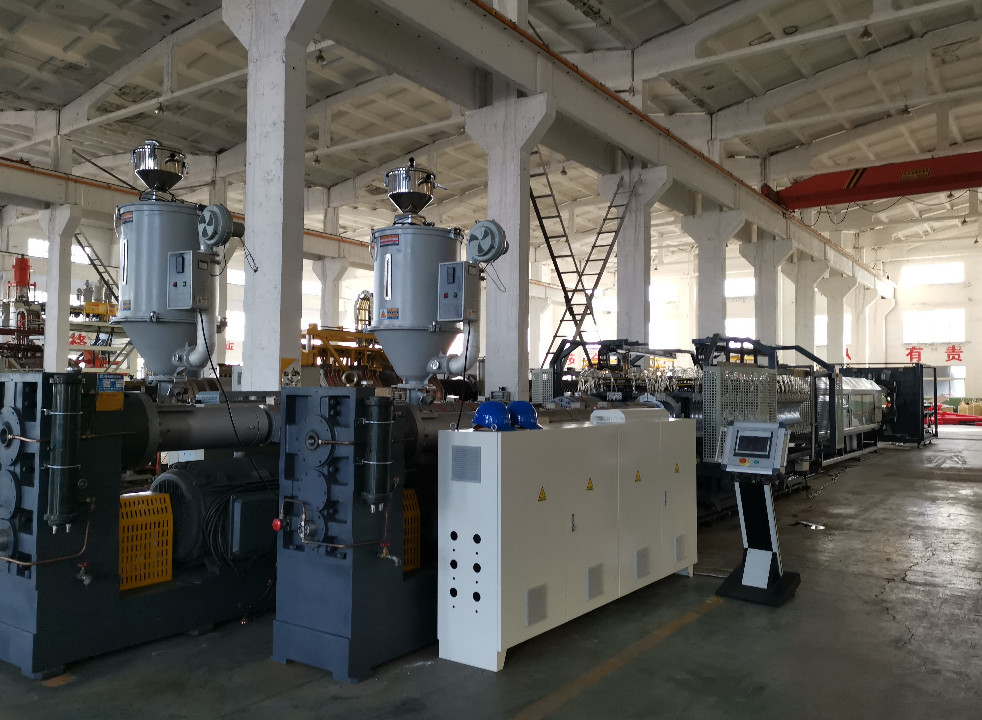

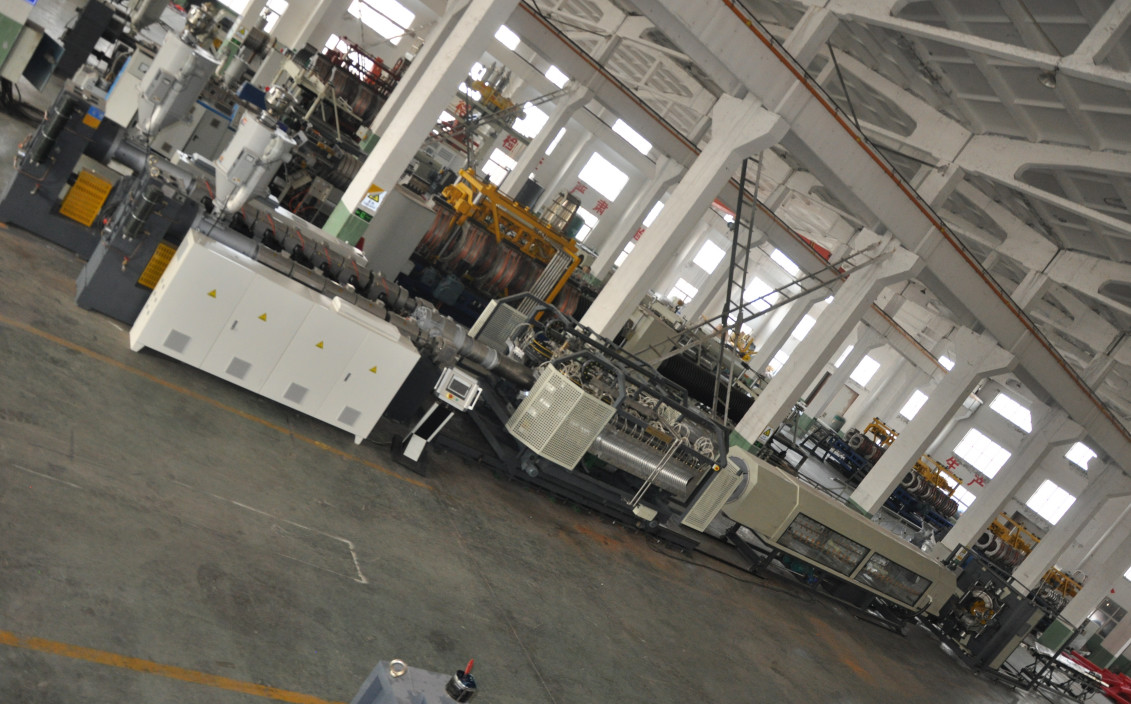

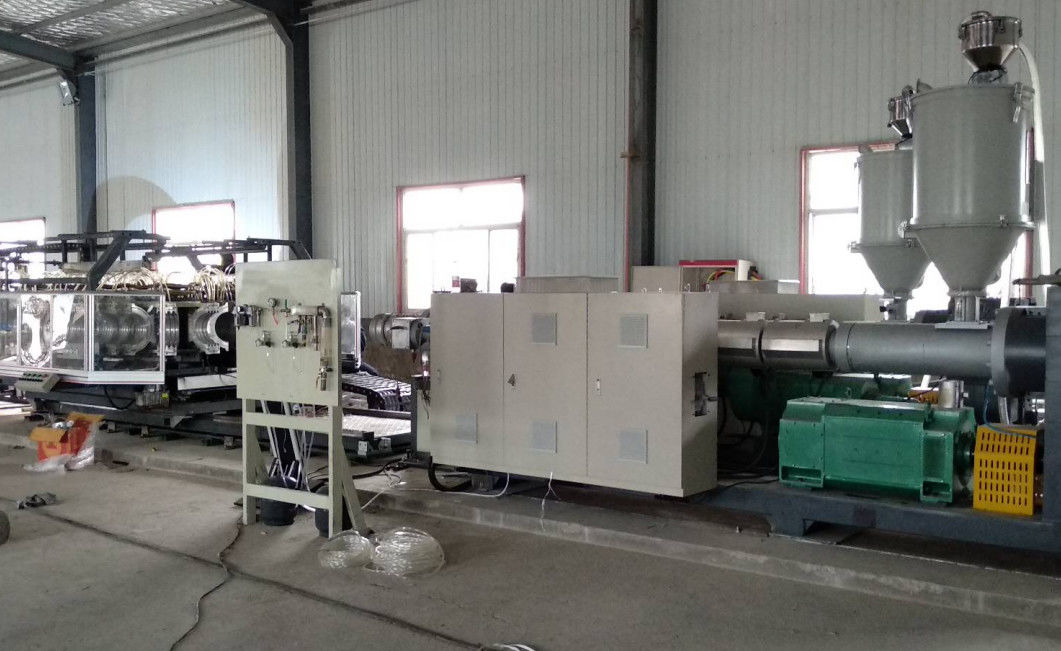

High Speed HDPE Double Wall Corrugated Pipe Line SBG 600H
In order to meet the demand of plastic pipe marker, Huasu company designed and developed this HIGH SPEED Double Wall Corrugated Pipe Extrusion Line by absobing advanced technology from foreign countries platic machinery industry. This extrusion line is suitable for the high speed extrusion of HDPE, LDPE and PP material.
ADVANTAGE:
1. adopt directly extruding ( two extruders' co-extrusion ) and forming technology
2. human-machine interface control system
3. high automation degree
4. reliable quality
5. stable production
| NO. | Internal Diameter( mm) | Outside Diameter ( mm) |
| 1 | 200 | |
| 2 | 315 | |
| 3 | 400 | |
| 4 | 500 |
| Extruder | Motor | Max. Output | Note |
| SJ120/33 | 250kw | 800kg/h | |
| SJ90/33 | 132kw | 450kg/h |
| No. | Name & Model | Quantity | |
| 01 | Single screw extruder SJ-120/33 | 1 set | |
| 02 | Single screw extruder SJ-90/33 | 1 set | |
| 03 | Molds | ID200mm die head water sleeve mould block | 1 set |
| ID315mm die head water sleeve mould block | 1 set | ||
| ID400mm die head water sleeve mould block | 1 set | ||
| ID500mm die head water sleeve mould block | 1 set | ||
| 04 | Forming machine SBCJ-600 | 1 set | |
| 05 | Water cooling tank SBSC-600 with haul-off machine | 1 set | |
| 06 | Planetary chip free cutting machine SBQG-600 | 1 set | |
| 07 | Unloading bracket SBXL-600 | 1 set | |
| 08 | PLC control system | 1 set | |
| 09 | Spare parts | 1 set | |
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
