Double Wall ID110mm Corrugated Pipe Extrusion Line

Double Wall ID110mm Corrugated Pipe Extrusion Line

  • Double Wall ID110mm Corrugated Pipe Extrusion Line
  • Double Wall ID110mm Corrugated Pipe Extrusion Line
  • Double Wall ID110mm Corrugated Pipe Extrusion Line
  • Double Wall ID110mm Corrugated Pipe Extrusion Line
  • Double Wall ID110mm Corrugated Pipe Extrusion Line
  • Double Wall ID110mm Corrugated Pipe Extrusion Line
Double Wall ID110mm Corrugated Pipe Extrusion Line
Product Details:
Place of Origin: Shandong, China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SBG 110
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 90 working days
Payment Terms: T/T
Supply Ability: 30 sets / month
Contact Now
Detailed Product Description
Pipe ID: 63-110 Mm L:D: 30:1
Extruder: SJ 75/30 Motor: AC Motor
Cooling Type: Air Cooling And Water Cooling Unique Advantage: CNC
Feeding System: Auto Inverter: FUJI (Japan) Or ABB
Contactor: Siemens
High Light:

ID110mm Corrugated Pipe Extrusion Line

,

ISO Corrugated Pipe Extrusion Line

,

CNC Corrugated Pipe Extrusion Line

 HDPE Single Wall Corrugated Pipe Line SBG 110



Single wall corrugated pipe extrusion line designed and developed by Shandong Huasu Plastic Technology Co., Ltd.

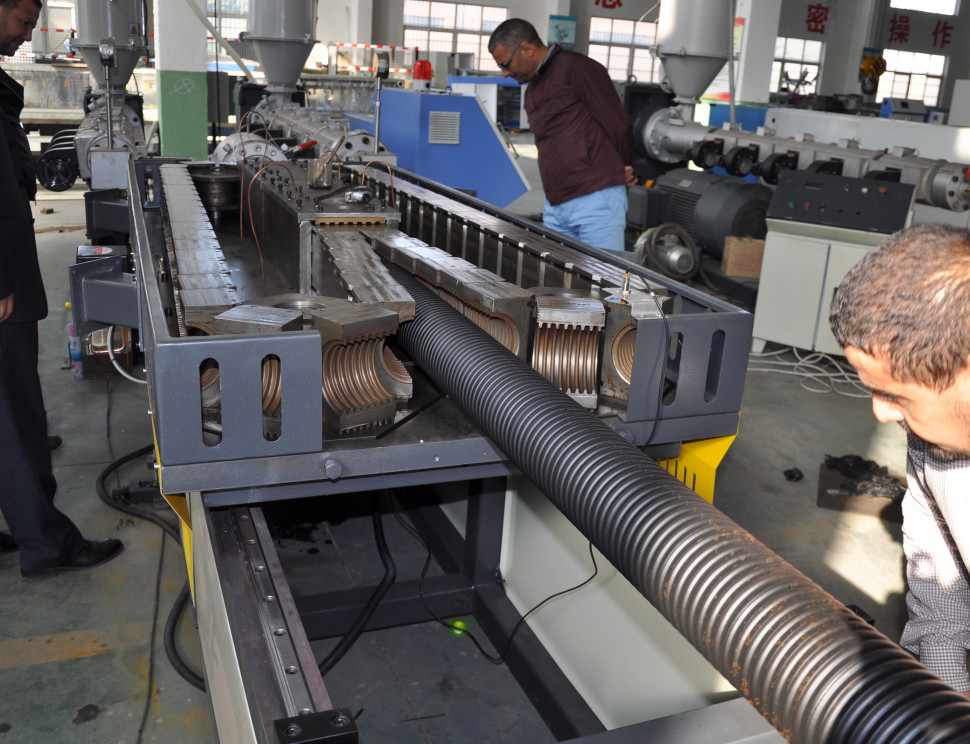

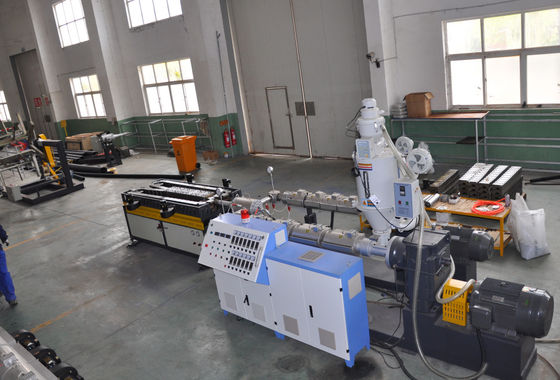

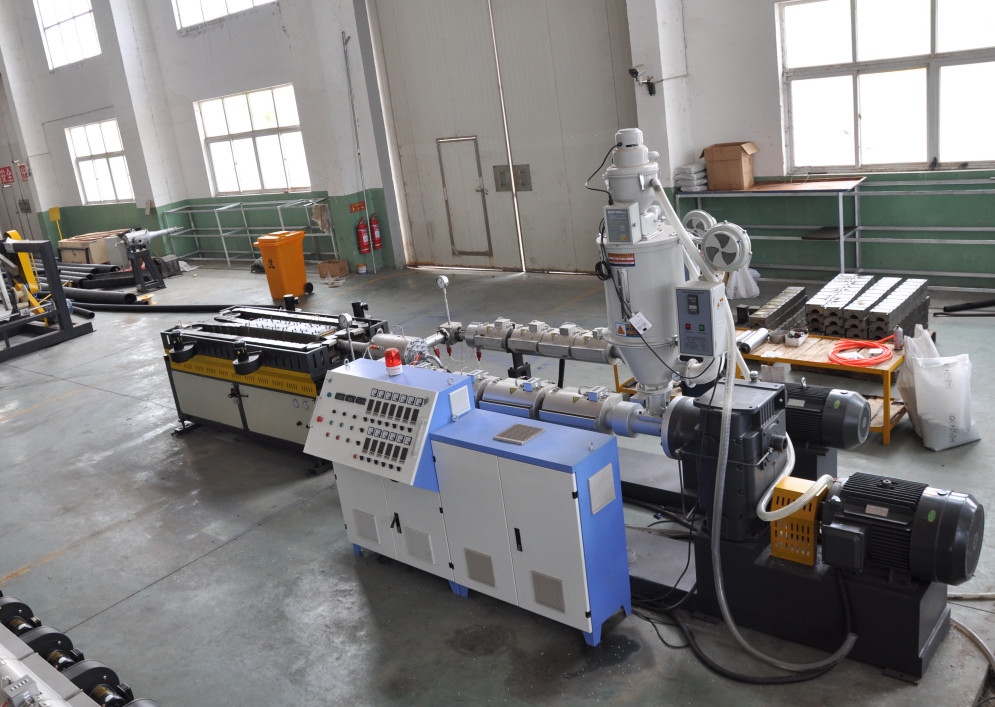

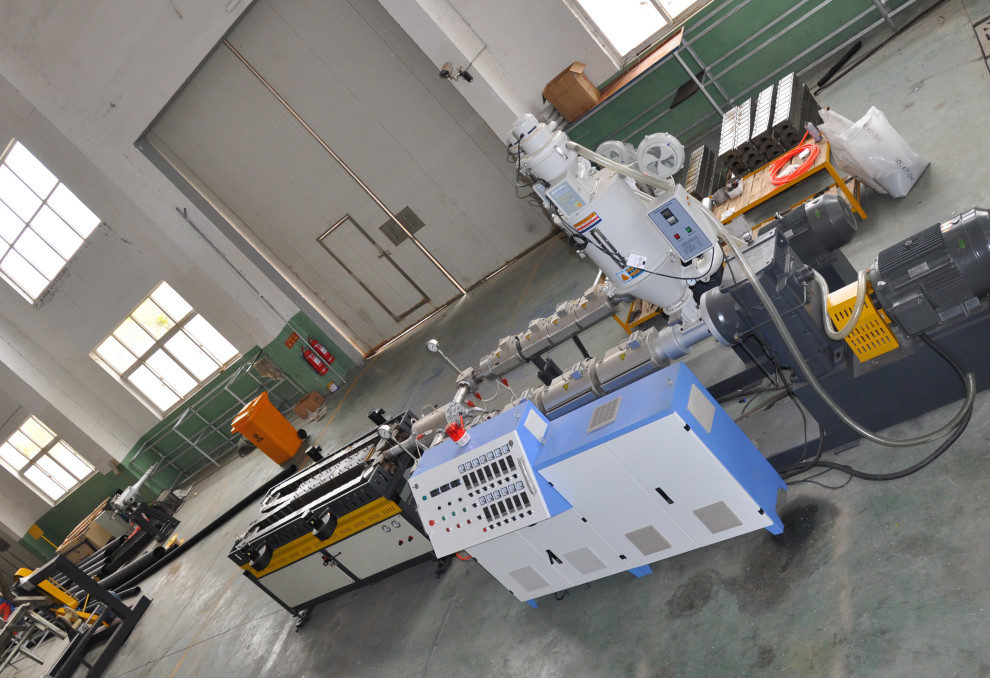

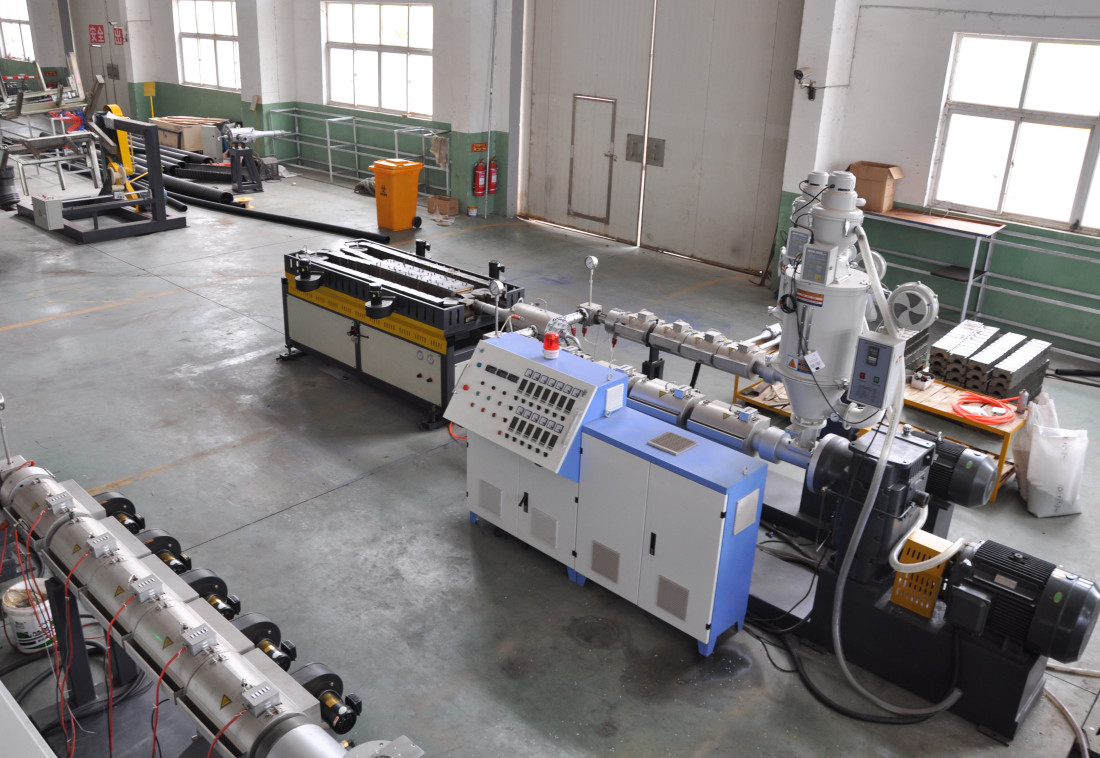

This signle wall corrugated pipe extrusion line mainly contains extruder, corrugated forming machine, die head and mold blocks, cooling equipment, counting machine and winding machine. It can continuously produce many kinds of diameter single wall corrugated pipes.



ADVANTAGE:



1. adopt directly extruding ( two extruders' co-extrusion ) and forming technology

2. human-machine interface control system

3. high automation degree

4. reliable quality

5. stable production



NO.



Inner Diameter( mm)



Outside Diameter ( mm)



1 63
2 110



No.



Name & Model



Quantity



1.0 Single—Screw Extruder SJ-75/30 1 set
2.0 Molds

63mm die head mould block

16mm

2 sets


110mm die head mould block

63mm

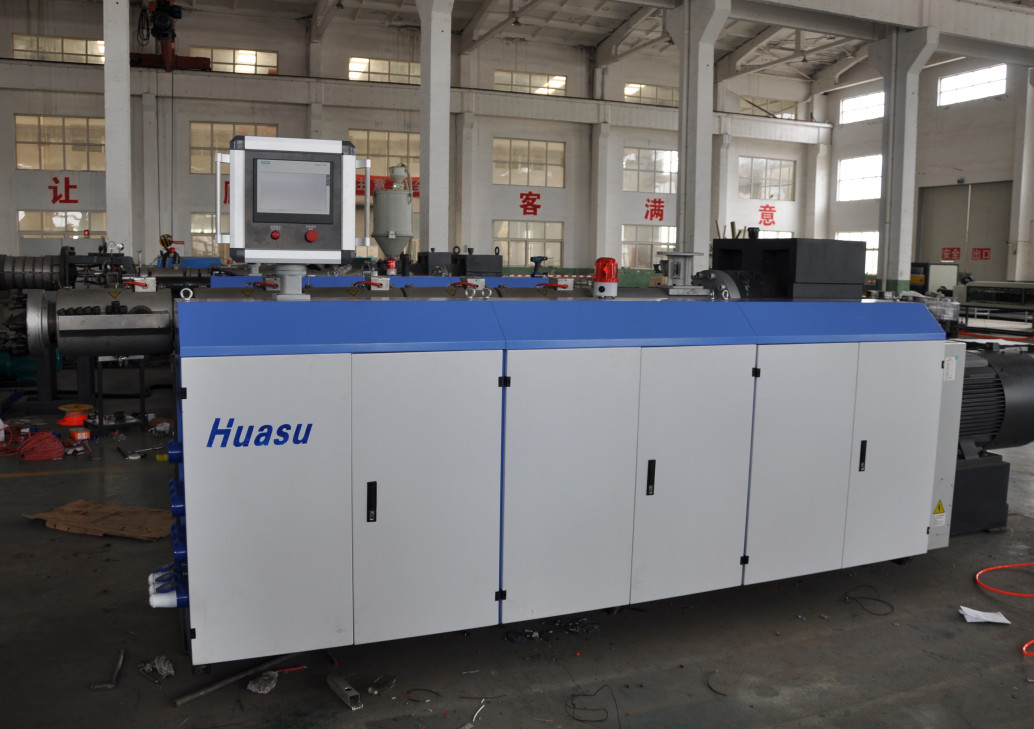

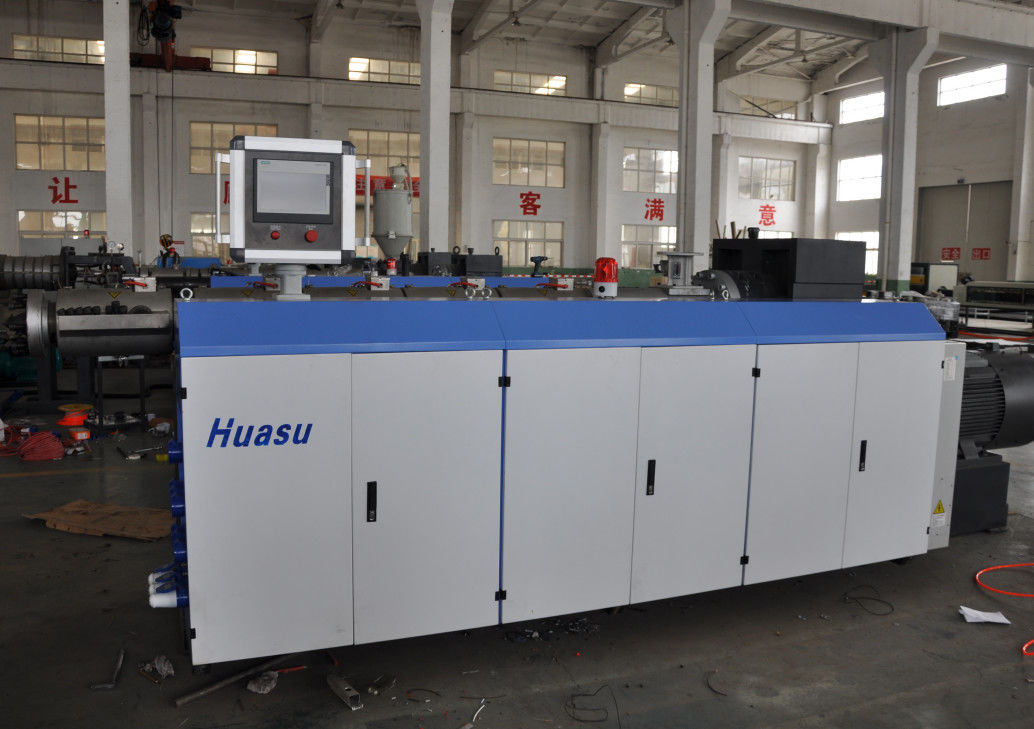

3.0 Forming Machine  1 set
4.0 Winding Machine  1 set
5.0 Control System  1 set


Warranty:



Machinery warranty time is 12 months from the date of Bill of Lading. Electric and electronic parts excluded. A



Double Wall ID110mm Corrugated Pipe Extrusion Line 0
Double Wall ID110mm Corrugated Pipe Extrusion Line 1
Double Wall ID110mm Corrugated Pipe Extrusion Line 2





Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.



In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.

Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
