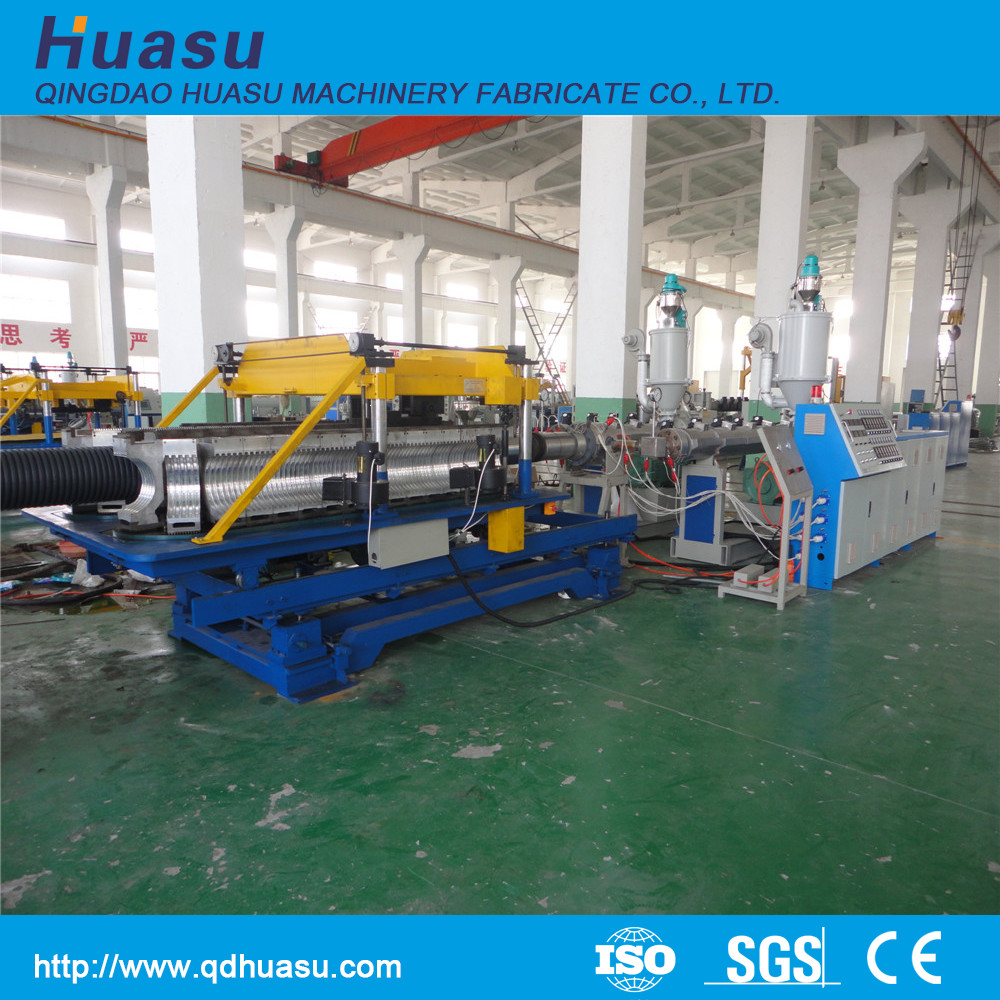

Air Cooling Corrugated HDPE DWC Pipe Extrusion Machine

Air Cooling Corrugated HDPE DWC Pipe Extrusion Machine

  • Air Cooling Corrugated HDPE DWC Pipe Extrusion Machine
  • Air Cooling Corrugated HDPE DWC Pipe Extrusion Machine
Air Cooling Corrugated HDPE DWC Pipe Extrusion Machine
Product Details:
Place of Origin: Shandong, China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SBG 63 double wall
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 90 working days
Payment Terms: T/T
Supply Ability: 30 sets / month
Contact Now
Detailed Product Description
Pipe ID: 32/40/50/63 Mm L:D: 30:1
Extruder: SJ 55/30 & SJ 45/30 Motor: AC Motor
Cooling Type: Air Cooling And Water Cooling Unique Advantage: CNC
Feeding System: Auto Inverter: FUJI (Japan) Or ABB
Contactor: Siemens
High Light:

Corrugated DWC Pipe Extrusion Machine


HDPE DWC Pipe Extrusion Machine


DWC Corrugated Pipe Machine

HDPE Corrugated Pipe Making Machine DWC Pipe Extrusion Machine


Pipe Extrusion Machine


The PE/HDPE/PVC double-wall corrugated pipe extrusion line adopts extrusion molding process, which has the characteristics of reliable quality and high efficiency. Compared with other plastic pipe wall structures, double-wall corrugated pipes have excellent wall structure design and light weight, which reduces production costs and improves market competitiveness. The pipeline has been widely used in various fields such as concrete pipelines and iron pipelines due to its features such as convenient connection, convenient installation of accessories, and reliable quality.


Final product introduction:


HDPE double-wall corrugated pipe uses high-density polyethylene as the main raw material. It is co-extruded from the inside and outside of the extruder to form a smooth inner wall. The hollow layer of the trapezoidal corrugated wall of the outer wall is sandwiched between the inner and outer walls of the plastic pipe. The final product has high ring stiffness. It has the advantages of high strength, light weight, noise reduction, high stability, long life, good flexibility, high compressive strength, high impact resistance, etc. It can be laid on bad geological parts, with good sealing performance and fast construction.




Inner Diameter( mm)


Outside Diameter ( mm)


1 32
2 40
3 50
4 63




Name & Model



01 Single Screw Extruder SJ55X30 1 set
02 Single Screw Extruder SJ45X30  1 set
03 Molds

32mm die head water sleeve mould block


1 set

40mm die head water sleeve mould block


1 set

50mm die head water sleeve mould block


1 set

63mm die head water sleeve mould block


1 set
04 Forming Machine SBCJ-63  1 set
05 Winding Machine  1 set
06 Control System SBG63  1 set

Advantages of our plastic DWC double wall corrugated pipe machine

1. The main engine adopts a high-efficiency screw specially designed for polyolefin, with stable performance and high efficiency. The machine has two independent extruders, which can realize inner and outer layers of different materials and colors.

2. The composite extrusion die has a special spiral structure, which makes the wall thickness uniform and stable production.

3. The molding machine has an automatic power-off protection device. The molding machine is automatically withdrawn from the die to avoid equipment failure due to sudden power failure. It is also equipped with a new type high transmission ratio reducer, which is simple and convenient to operate. maintain.

4. The corrugated forming system combines water cooling and air cooling,
Continue to ensure high production speed. The advanced programmable lubrication system minimizes the wear of the mold, thereby prolonging the service life, ensuring high-precision work, and ensuring product quality stability.

5. The mold is made of special aluminum alloy material and high-precision die-casting molding method. It has the advantages of high precision, high strength, good wear resistance, and good heat dissipation performance.

6. Wave structure introduced a comprehensive new optimized design to achieve the best combination of high rigidity and light weight.
