Place of Origin: | Shandong, China |
Brand Name: | HUASU |
Certification: | CE, ISO9001 |
Model Number: | SRQG-500 |
Minimum Order Quantity: | 1 sets |
---|---|
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 20 sets / month |
Extruder: | SJ120/30 | Motor: | AC Motor 200kw |
---|---|---|---|
Max Output: | 450-600kg/h | Operation Direction: | From Right To Left |
L:D: | 30︰1 | Dryer: | Auto |
Die Head: | Spiral Split- Flow | ||
High Light: | 600kg/H PE Pipe Production Line,400mm PE Pipe Production Line,200kw PE Pipe Production Line |
200mm - 500mm Water Supply And Gas Distribution PE Pipe Production Line
PE series plastic pipe production line is mainly used in the production of agricultural, construction and sewage drainage, etc.The unit consists of single screw extruder, vacuum calibration tank,hauling machine, cutting machine, stacker and other components.Single-screw extruder and hauling machine adopts imported AC frequency control devices, vacuum pump and traction motors are made of high-quality products.You can choose no dust cutting, saw cutting or planetary cutting machine reliable performance, high production efficiency.
Our company can according to users’ requirements,equipped with special devices and produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe. This PE pipe production line also can produce other pipe materials PP, PE, PPR, HDPE and so on. Planetary cutting machine is fully automatic computer digital control, easy to operate, reliable performance, etc., reached the international advanced level.
We use low-temperature low-pressure extrusion system efficiency, improve products and plasticizing effect extrusion capacity, yield an increase of 10-15%.

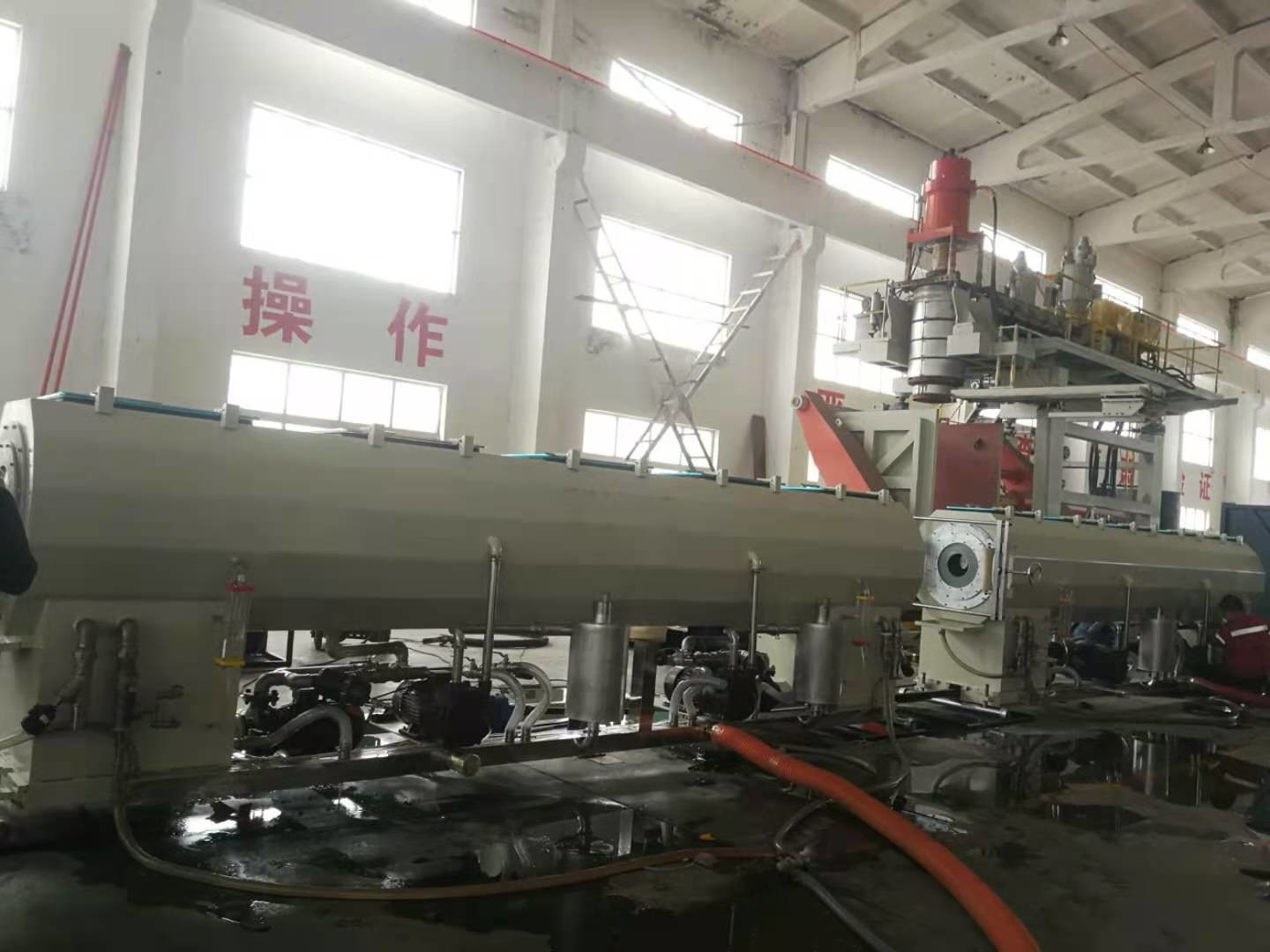

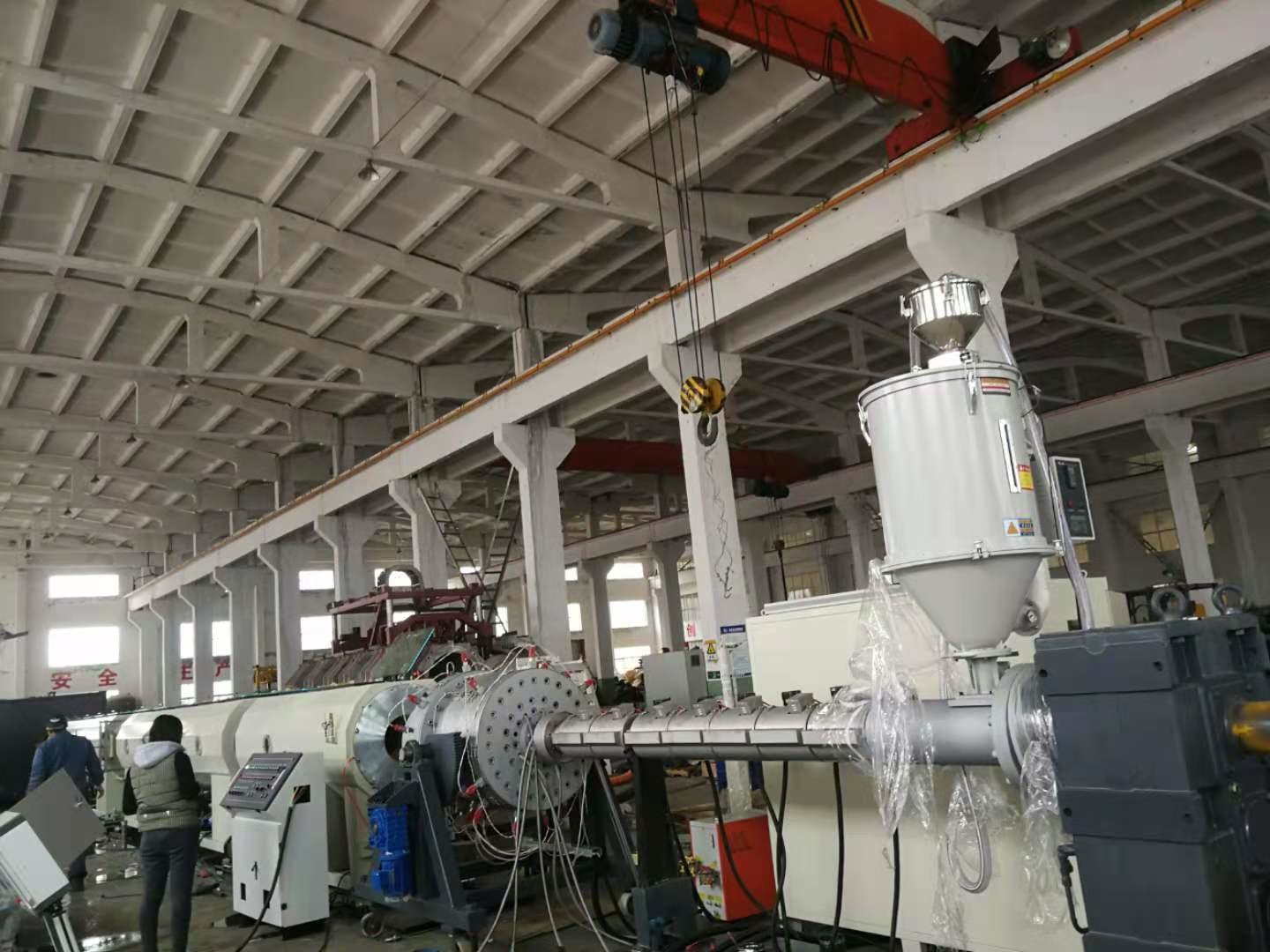

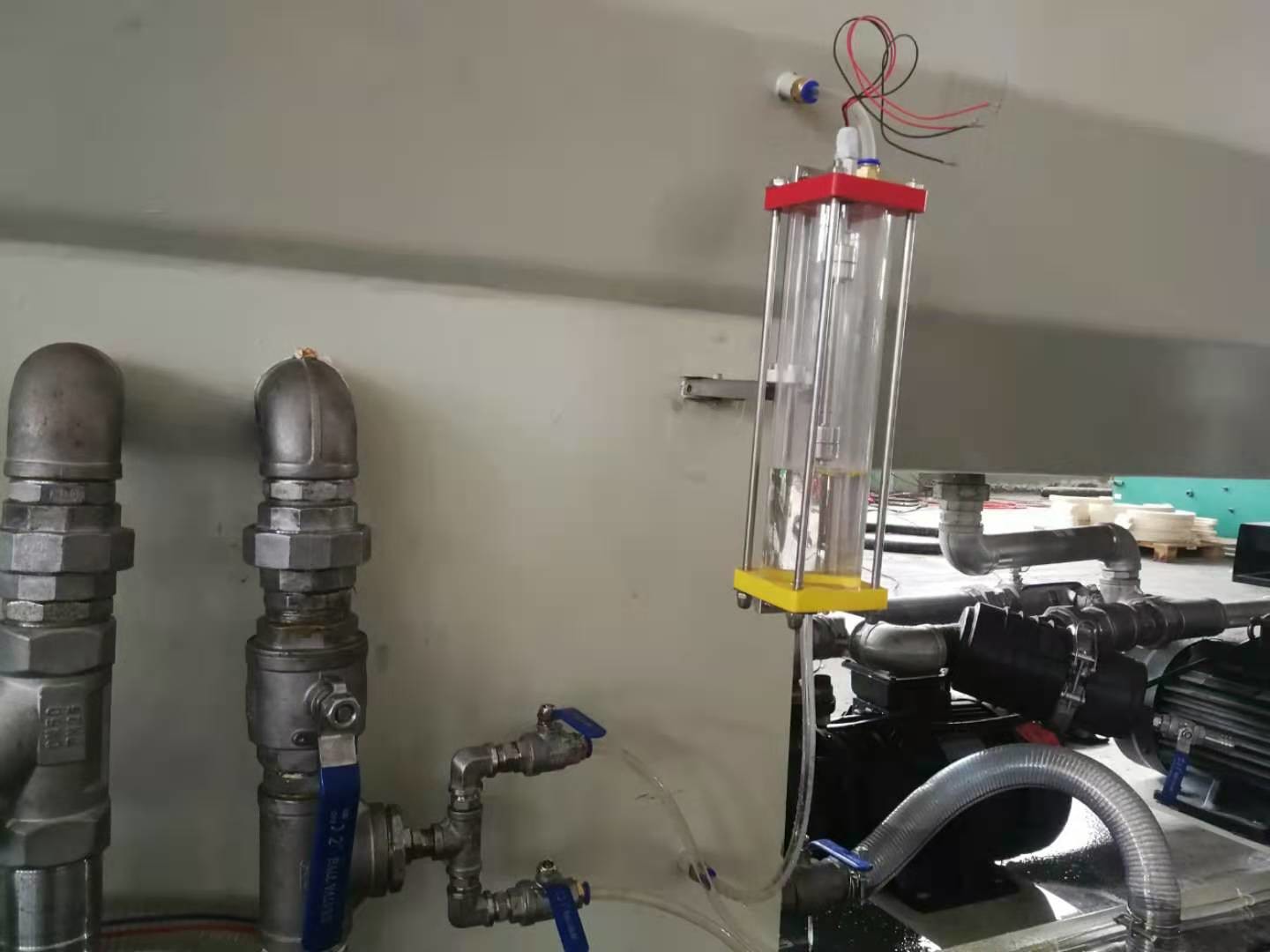

Single Screw Extruder MachineThe pipe extruder machine, the most important part of any production line; it heats, mixes, and extrudes fesh pipe.Vacuum & Cooling TankThe vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.Haul Off (Puller) MachineA pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.Cutter MachineThe pipe cutter machine cuts PE pipe to the desired length programed into the HMI.Coiler Machine/WinderThe pipe coiler machine allows you to coil pipe for sale and distribution.
No.
|
Name&Model
|
Quantity
|
1.0 | Single Screw Extruder SJ 120/30 | 1set |
2.0 | Single Screw Extruder SJ 30/25 | 1set |
3.0 | Die head | 1set |
4.0 | Vacuum Calibrating Cooling Tank | 1set |
5.0 | Vacuum Calibrating Cooling Tank | 1set |
6.0 | Water Spraying Cooling Tank | 2set |
7.0 | Hauling—Off Machine | 1set |
8.0 | YYJ Serial Metering Printer | 1set |
9.0 | Planetary Cutting Machine | 1set |
10.0 | Overturning Bracket | 1set |
11.0 | PLC Control System PLC | 1set/ |
Extruder
|
Motor
|
Max Output
|
Note
|
SJ120/30 | 200kw | 450-600kg/h | |
SJ30/25 | 1.5kw | 5-10kg/h |
Huasu offers complete production lines for PE/PVC/PP pipe. We offer a wide range of single/double screw extruders in various sizes and capacities. Our screw design is chosen based on our clients material combination (for all PE/PVC/PP materials: LLDPE, LDPE, MDPE, HDPE, PVC, PP, MPP etc…) ensuring homogeneous mixture, better plastification and efficiency. Our production lines come in a wide range of configurations capable of producing PE pipes from 16mm all the way up to 1200mm. We offer complete sets of tooling for various pipe classes (PN/SDR) required in the industry.
