260kg/H 75kw 250mm PE Conduit Pipe Extrusion Line
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | HUASU |
| Certification | CE, ISO9001 |
| Model Number | SBG 315 |
| Minimum Order Quantity | 1 sets |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 20 sets / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Extruder | SJ90/30 | Motor | AC Motor 75kw |
|---|---|---|---|
| Max Output | 260 Kg/h | Operation Direction | From Right To Left |
| LD | 30︰1 | Dryer | Auto |
| Barrel Heating Zone | 4 Zones X 3kw | ||
| Highlight | 250mm Conduit Pipe Extrusion Line,260kg/H Conduit Pipe Extrusion Line,75kw Conduit Pipe Extrusion Line |
||
Product Description
90-250mm PE electric conduit pipe productio/extrusion line
PE Pipe Extrusion/Production line is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc. The pipe has some excellent features such as low temperature impact resistance, reliable connection, good stress crack resistance, good chemical resistance, good wear resistance, long using life, etc.
Features of SBG 250/315 plastic extrusion line:
Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 6.24m/min.
Low energy consumption help to cut production cost.
Efficient vacuum system for forming perfect pipes.

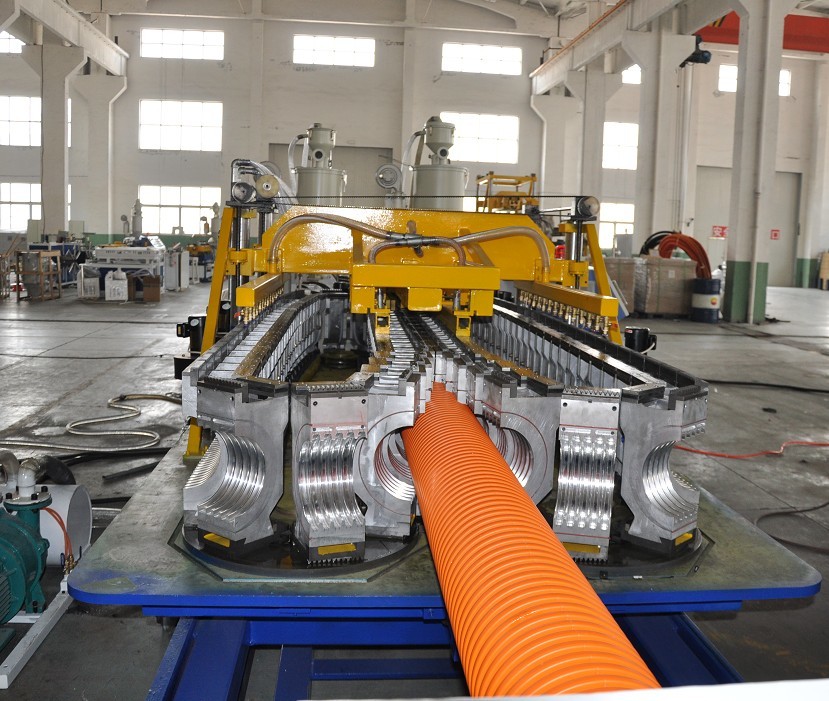

Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
Easy and quick changeover between different sizes of moulds.
The complete extrusion line runs full-automatically.
Corrugator and extruders are synchronously controlled.
Harden treated screw and barrels for longer life span and durability.
Remote Service is available.
Toolings (moulds) compatible to ZC-600H line and ZC-1000H line.
|
No. |
Name & Model
|
Quantity
|
|
| 01 | Single Screw Extruder SJ90X30 | 1 set | |
| 02 | Single Screw Extruder SJ65X30 | 1 set | |
| 03 | Molds |
90mm die head water sleeve mould block 90mm |
5 sets |
|
110mm die head water sleeve mould block 110mm |
|||
|
160mm die head water sleeve mould block 160mm |
|||
|
200mm die head water sleeve mould block 200mm |
|||
|
250mm die head water sleeve mould block 250mm |
|||

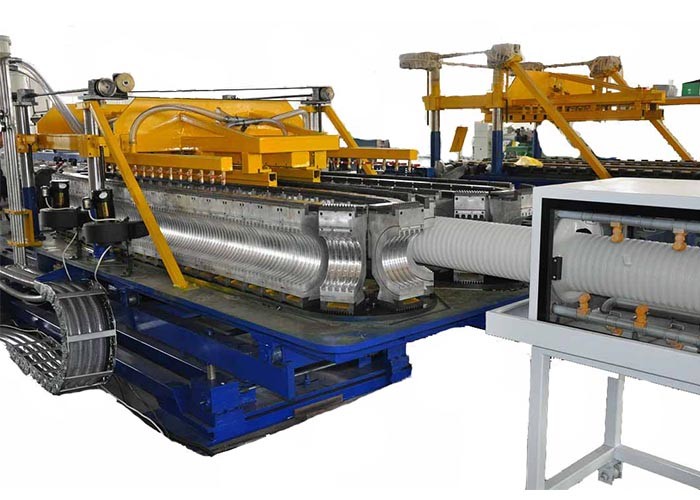

| 04 | Forming Machine SBCJ-315 | 1 set | |
| 05 | Cutting Machine STG-315 | 1 set | |
| 06 | Unloading Bracket | 1 set | |
| 07 | PLC Control System SBG 315 PLC | 1 set | |
|
Extruder |
Motor |
Max. Output |
Note |
| SJ90/30 | 75kw | 150-260kg/h | |
| SJ65/30 | 37kw | 60-120kg/h |

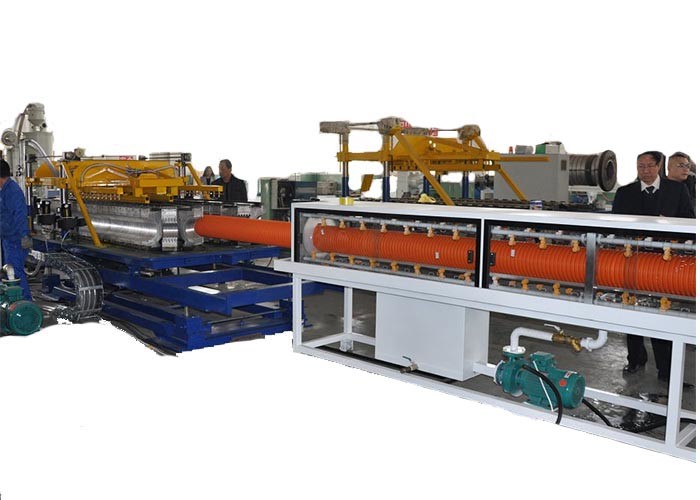

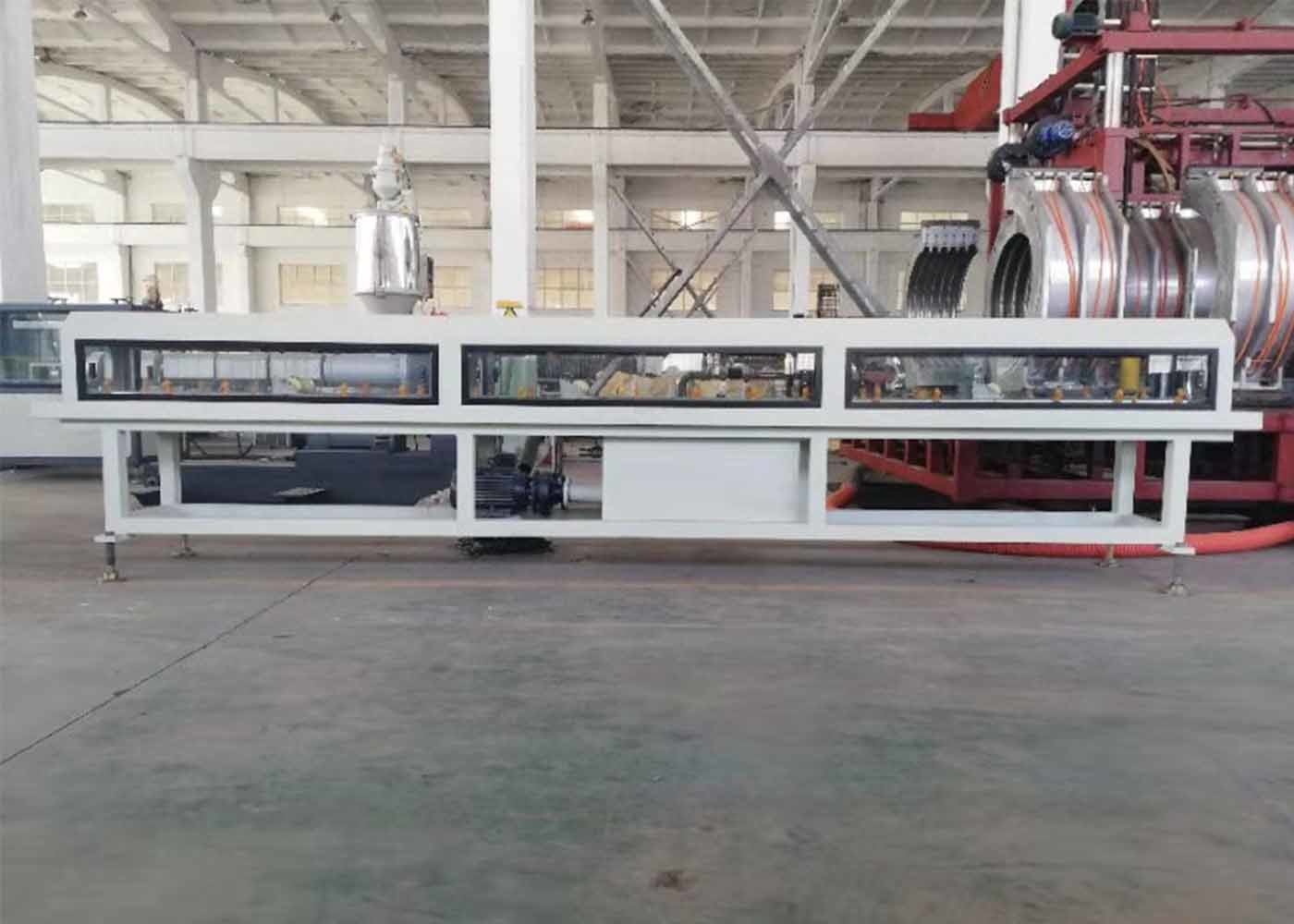

Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single Screw Extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter →Stacker → Final Product Inspecting &Packing
You just tell me what machine you want,let us do the rest work:
1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers; (3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
