80kg/H Single Wall PP material Corrugated Pipe Machine
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | HUASU |
| Certification | CE, ISO9001 |
| Model Number | SBG 63 |
| Minimum Order Quantity | 1 sets |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 20 sets / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Extruder | SJ 65/30 | Motor | AC Motor 18.5 Kw |
|---|---|---|---|
| Max Output | 80 Kg/h | Operation Direction | From Right To Left |
| LD | 30︰1 | Dryer | Auto |
| Barrel Heating Zone | 4 Zones X 6kw | Barrel Cooling Zone | 4 Zones×0.25kw |
| Highlight | 80kg/H Corrugated Pipe Machine,PP PA Corrugated Pipe Machine,18.5kw Corrugated Pipe Machine |
||
Product Description

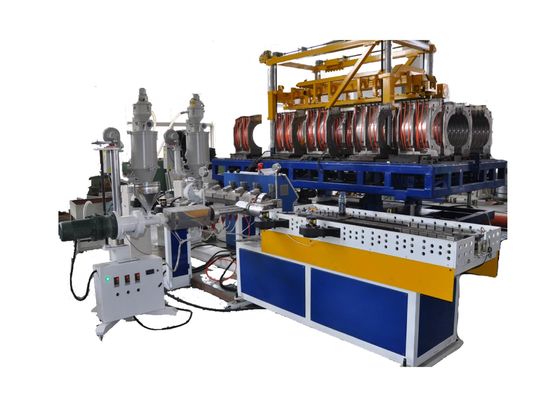

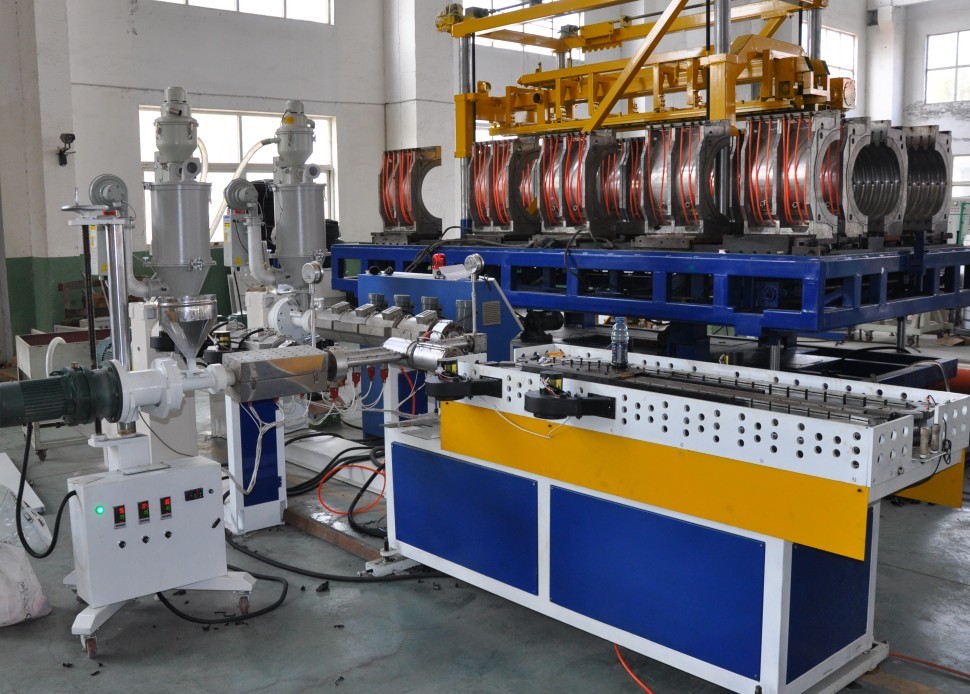

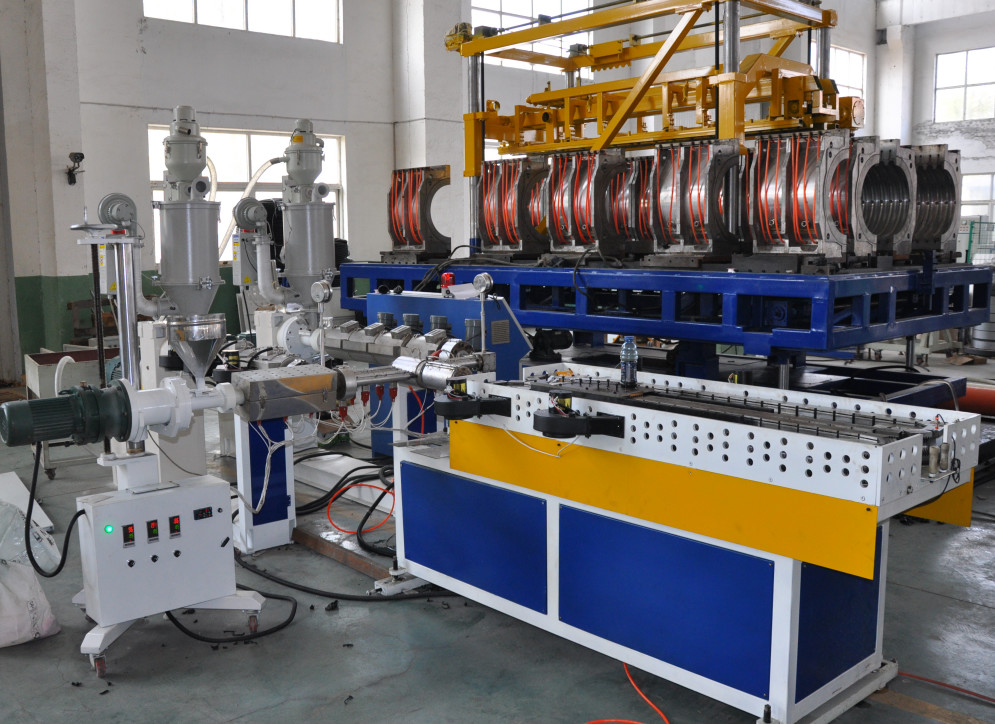

80kg/H PP/PE/PVC Single Wall Corrugated Pipe Production Line Corrugated Machine Manufacturer
Introduction of Single/Double Wall Corrugated Pipe Production Line Corrugated Machine
1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;
4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its flexibility,so that it can be laid on the uneven ground continuously.
6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.
- Equipment Configuration
|
No.
|
Name & Model
|
Quantity
|
|
| 1.0 | Single—Screw Extruder SJ-65/30 | 1 set | |
| 2.0 | Molds |
16mm die head mould block 16mm |
2 sets |
|
63mm die head mould block 63mm |
|||
| 3.0 | Forming Machine | 1 set | |

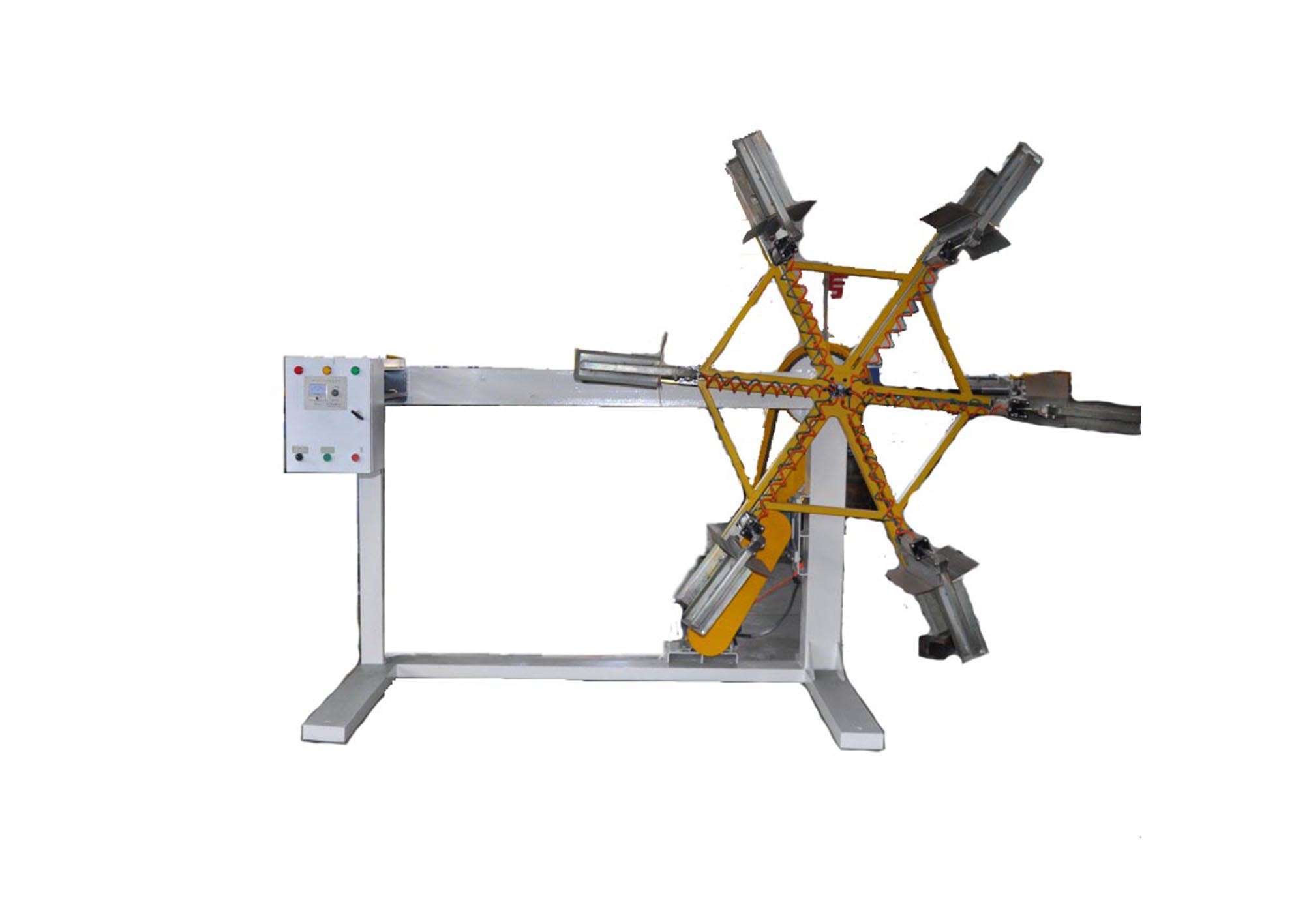

| 4.0 | Winding Machine | 1 set | |
| 5.0 | Control System | 1 set | |
|

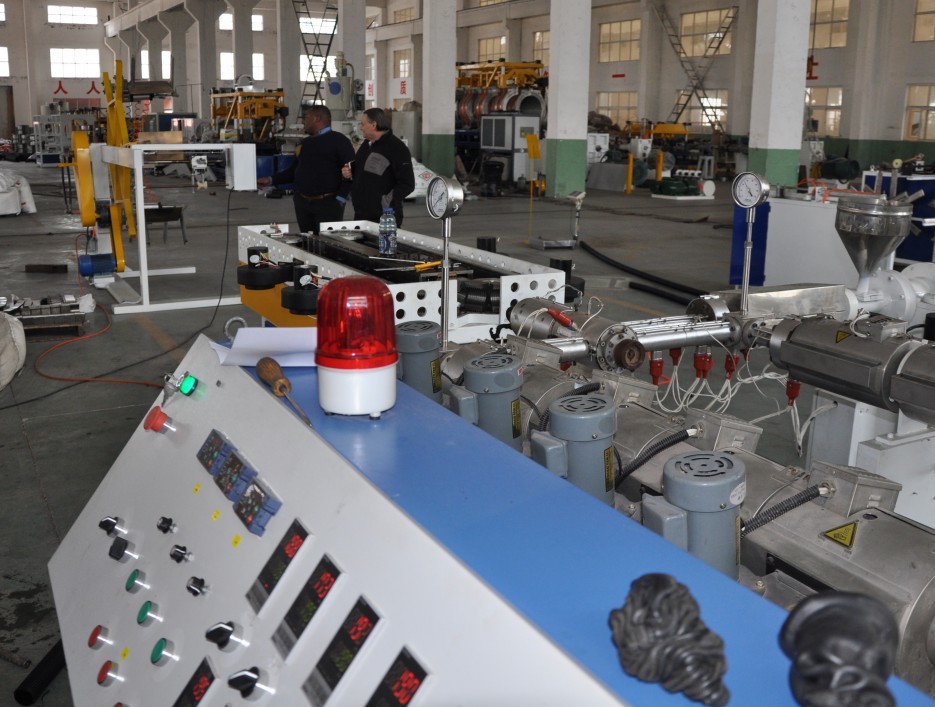

Extruder
|
Motor
|
Max Output
|
Note
|
| SJ-65/30 | 18.5kw | 40-80kg/h |
High effectioncy single/double screw extruder guarantees the high efficiency extrusion, flexible hauling-off and cutting unit make the running more reliable. It adopts SIEMENS PLC controling system which garrantees high automaticity.
1. The output capacity varies with the materials and the operation conditions.
2. Line speed: According to the thickness, pipe stander and operation condition.
3. Operation direction: From Right to Left or as required
4. The color of the line: HUASU standard color.
Molds :
Die Head
--Specification φ16-φ63m
--Material 40Cr
--Heating loop Stainless steel

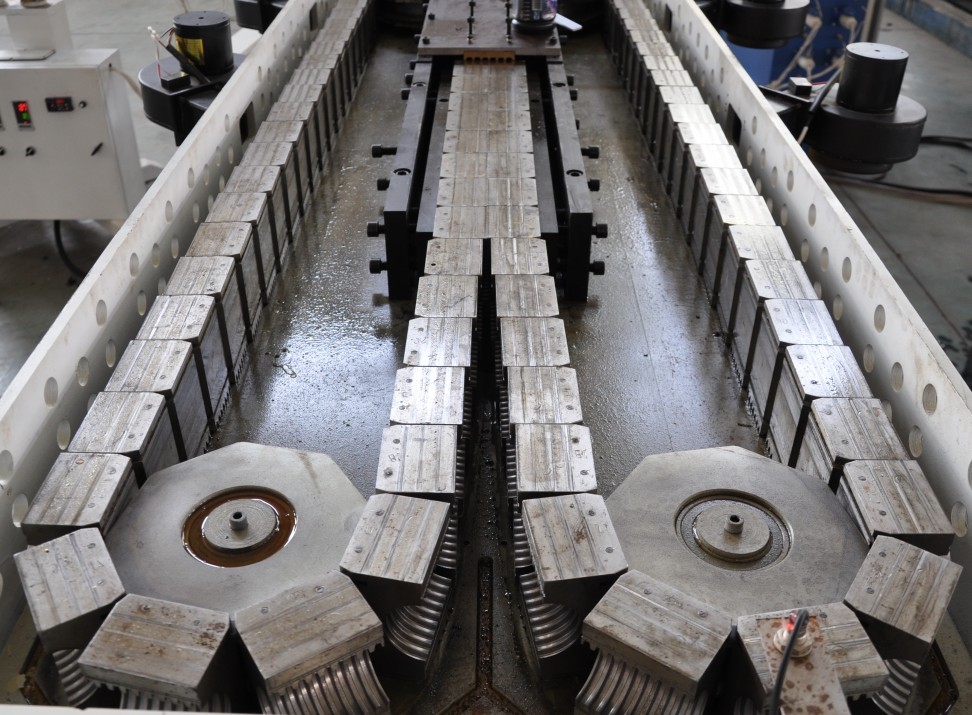

Mould Blocks
--Specification φ16-φ63mm
--Amount 44 pairs
--Mold Block Total Length 44×56.55 = 2488.2mm
--Mold block Specification 56.55(length)* 56(width)* 70(thickness)
--Cooling type Air cooling by fan
Packing&Shipping
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Warranty
Machinery warranty time is 12 months from the date of Bill of Lading. Electric and electronic parts excluded. Are furthermore excluded damages due to wrong use, not correct handling or inattentive operations and bad working system of the machine.
