| Place of Origin: | Shandong, China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | WW-50-800 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | US $ 37,000 - 400,000 |
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets / month |
| Screw Channel Structure: | Single Screw | Engagement System: | Full Intermeshing |
|---|---|---|---|
| Extruder: | SJ65/33 | Place Of Origin: | Shandong |
| Structure Form: | Horizontal | Applicable Raw Materials: | PE/PP/PVC |
| High Light: | 800mm Irrigation Pipe Extrusion Line,Horizontal HDPE Pipe Extrusion Line,Full Intermeshing Pipe Molding Machine |
||

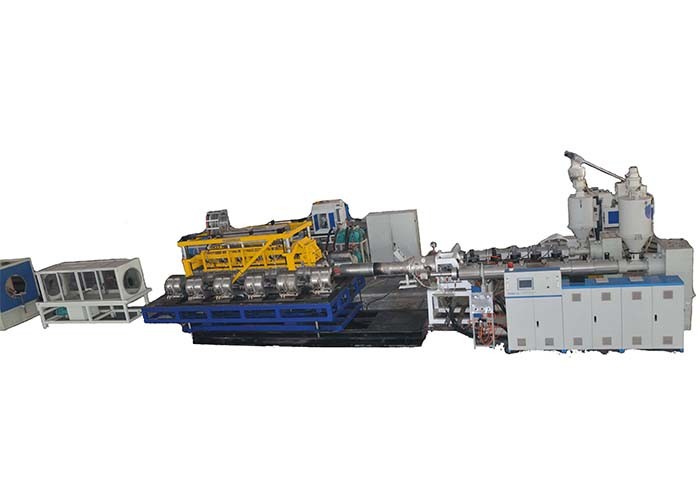

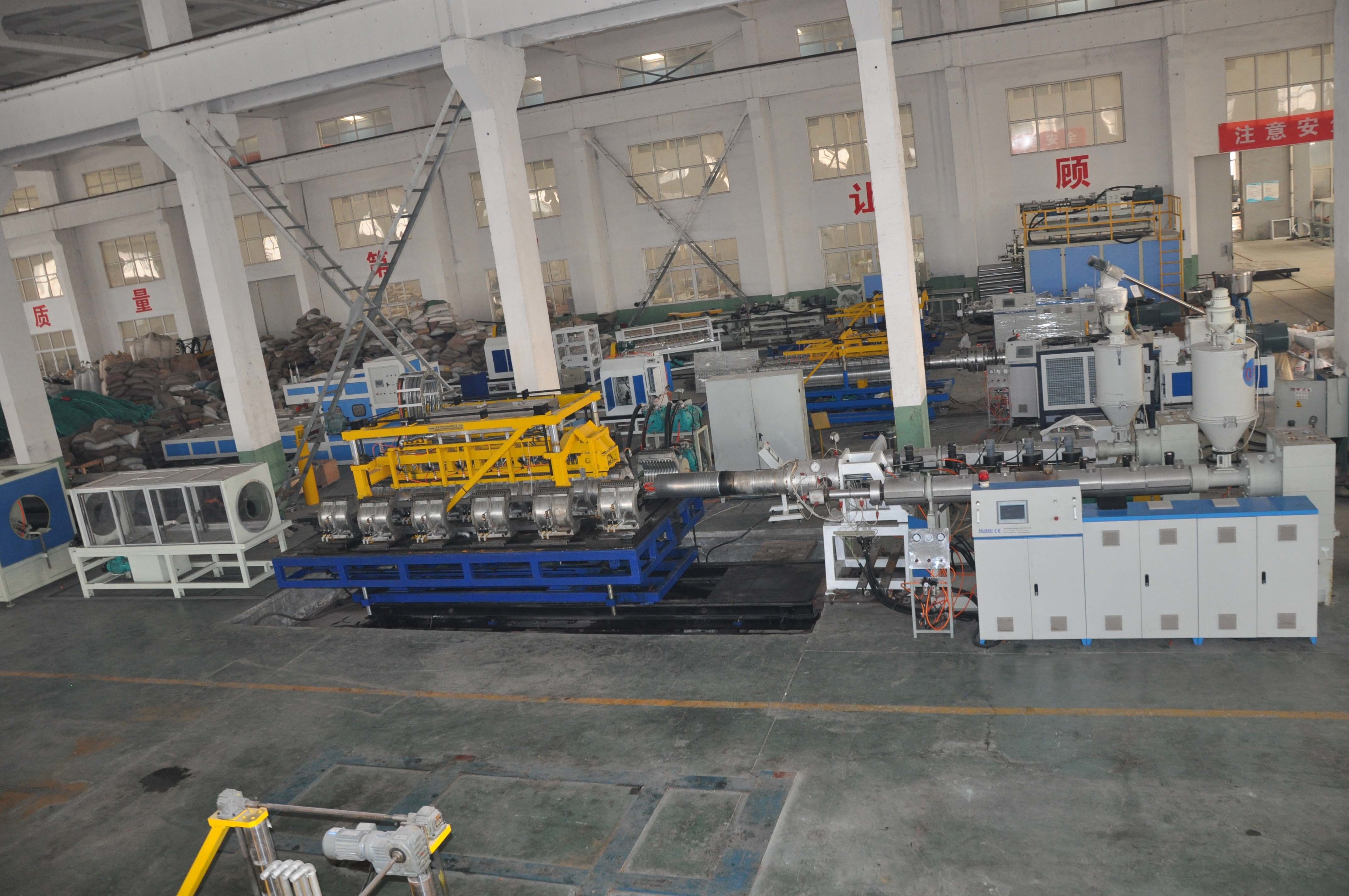

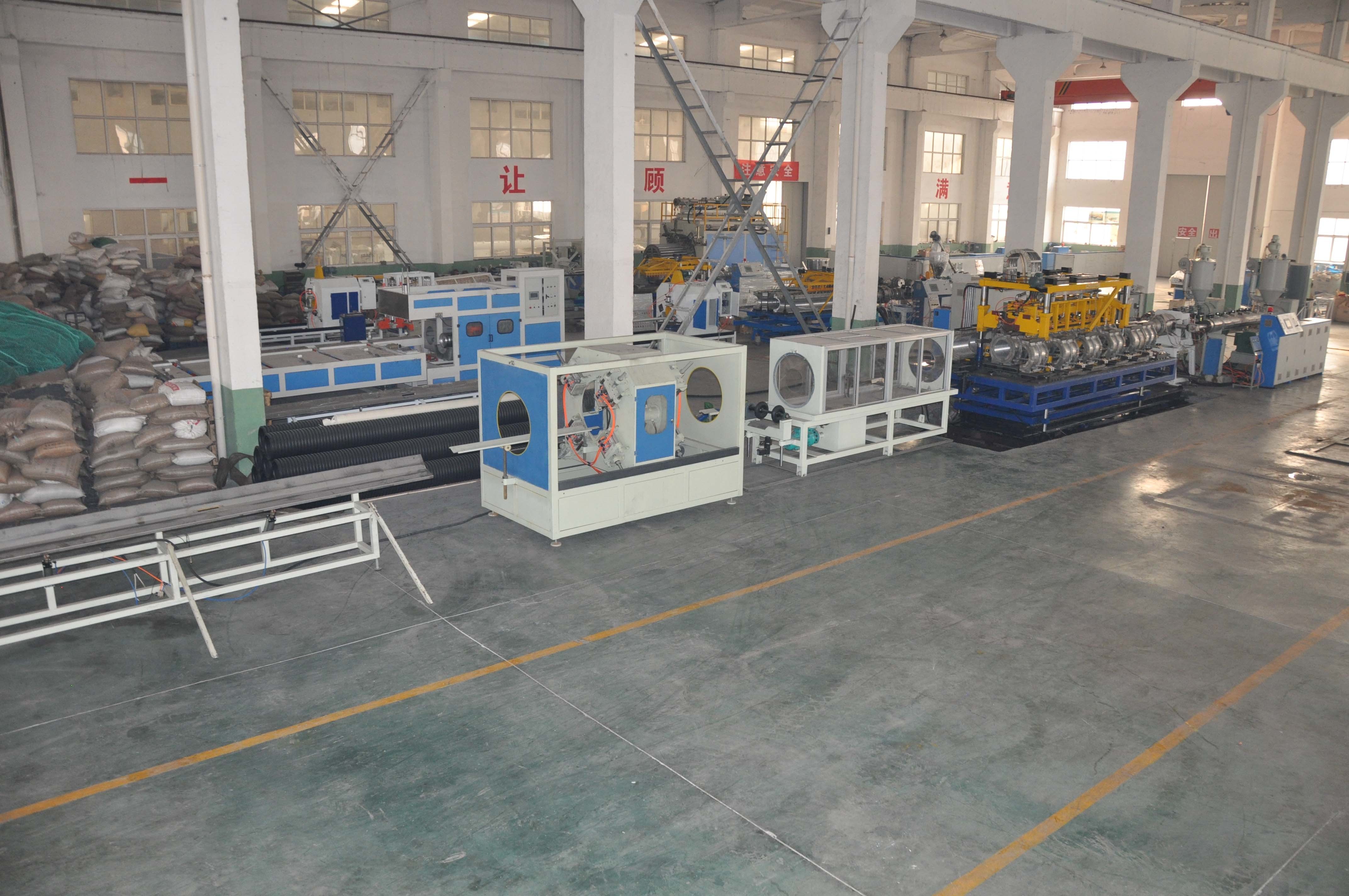

Full Intermeshing HDPE 800mm Irrigation Pipe Extrusion Line Plastic Pipe Molding Machine
Introduction of Full Intermeshing HDPE 800mm Irrigation Pipe Extrusion Line Plastic Pipe Molding Machine:
| Double-layer spiral co-extrusion die head |
| Complete inner cooling system |
| Unique separated dies and moulds for each specification |

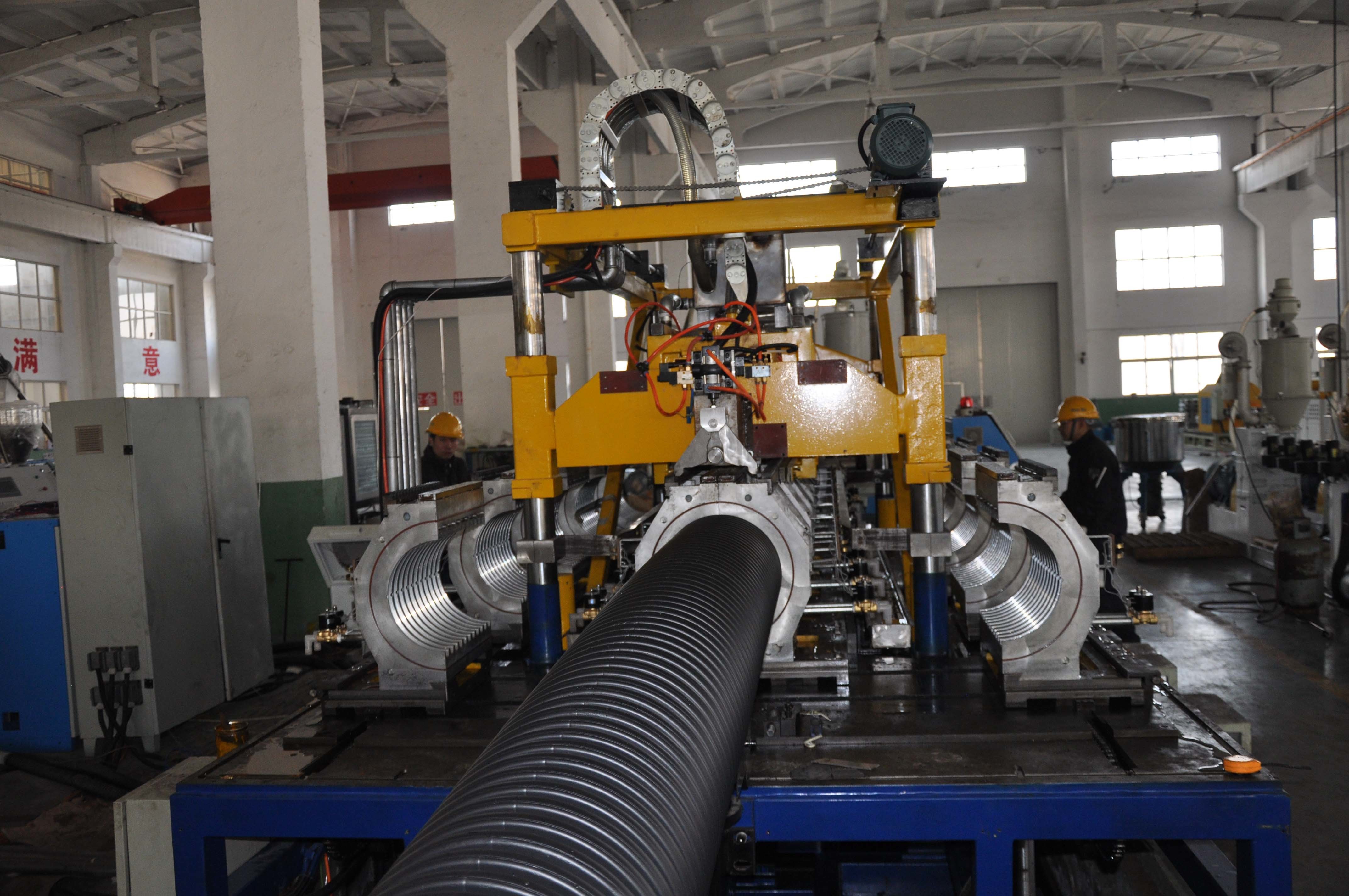

| Horizontal structure corrugator, easy change production size (forming dies) |
| Vacuum forming, making pipe with higher quality |
| can be on-line belling |
| High speed design, high output with lower power consumption |
Configuration of Full Intermeshing HDPE 800mm Irrigation Pipe Extrusion Line Plastic Pipe Molding Machine:
|
No.
|
Name & Model
|
Quantity
|
|
| 1.0 | Single Screw Extruder SJ120/30 | 1 set | |
| 2.0 | Single Screw Extruder SJ90/30 | 1 set | |
| 3.0 | Molds |
500mm die head water sleeve mould block 500mm |
1 set |
|
600mm die head water sleeve mould block 600mm |
1 set | ||
|
800mm die head water sleeve mould block 800mm |
1 set | ||
| 4.0 | Corrugator SBCJ800 | 1set | |
| 5.0 | Water Cooling Tank SBSC-800 | 1set | |
| 6.0 | Cutting Machine SBQG-800 | 1set | |
| 7.0 | Unloading Bracket SBXL-800 | 1set | |
| 8.0 | PLC Control System SBG800 | 1set | |
All the spare parts can be equipped with or whithout according to out customers's requirements.
Please kindly let us know if you have any special requirements.
Application for the single wall and double wall corrugated pipe extrusion line:
municipal engineering, urban and residential underground drainage and sewage engineering, highway engineering, farmland irrigation engineering,chemical mine fluid transportation engineering
Plastic PVC| PE| PP| HDPE Water Gas Supply Irrigation Single Tube Extrusion Line Flow chart
Single wall corrugated pipe extrusion line
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder for PE/PP material/double screw extruder for PVC material→ pipe extrusion die + corrugated pipe forming die→ forming machine→ haul off machine → winder/coil machine
Double wall corrugated pipe
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder for PE/PP material/double screw extruder for PVC material→ pipe extrusion die + corrugated pipe forming die→ forming machine→ haul off machine → cutting machine
