| Place of Origin: | Shandong, China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | PE63 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets / month |
| Extruder: | SJ 65/30 | Extruder For Marking: | SJ 30/25 |
|---|---|---|---|
| Die Head: | 1 Set For Each Size | Vacuum Tank: | 1 Set Or As Required |
| Hauling—Off Machine: | Haul Off Function | YYJ Serial Metering Printer: | 1 Set |
| Planetary Cutting Machine: | Non-dust Cutting Advantage | PLC Control System: | Low Voltage Electrician |
| High Light: | OD 63mm HDPE Pipe Extrusion Line,Haul Off Pipe Extrusion Line,Low Voltage HDPE Pipe Extrusion Line |
||

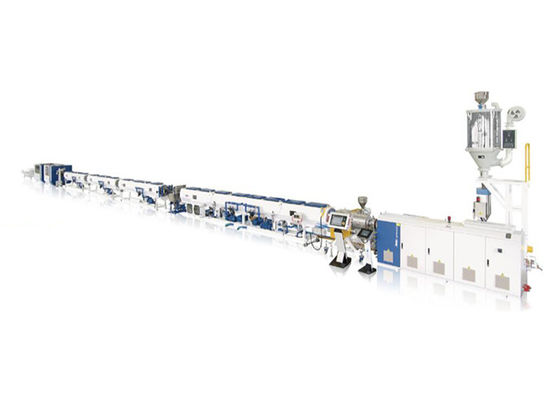

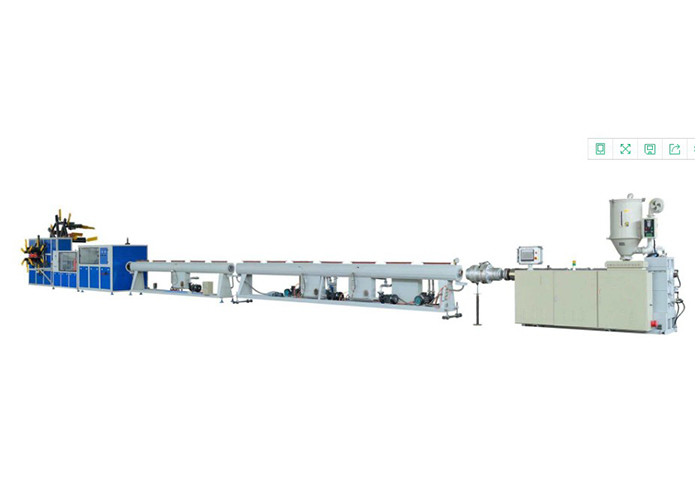

OD 63mm Water supply and gas distribution plastic PE pipe extrusion/production line
Introduction of OD 63mm Water supply and gas distribution plastic PE pipe extrusion/production line
This line is suitable for raw material PE/PP/PPR.

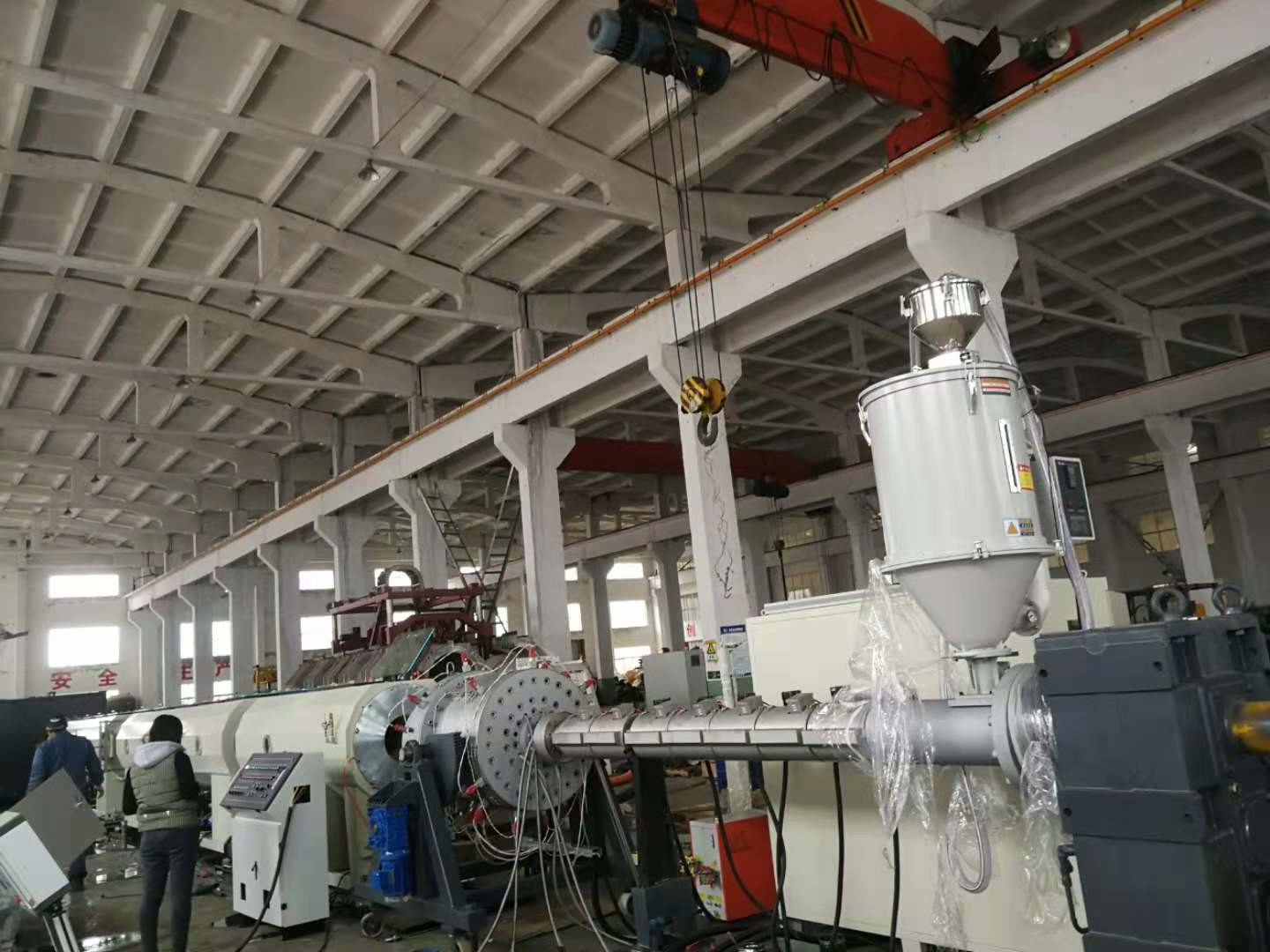

The whole production line adopts high speed high efficiency single screw extruder and is equipped with low noise fan and high speed hard tooth faced speed reducer to assure high speed high efficiency extrusion.
Die head adopts 40Cr raw material, produced by imported machining center to assure the production accuracy and material evenly extrusion.

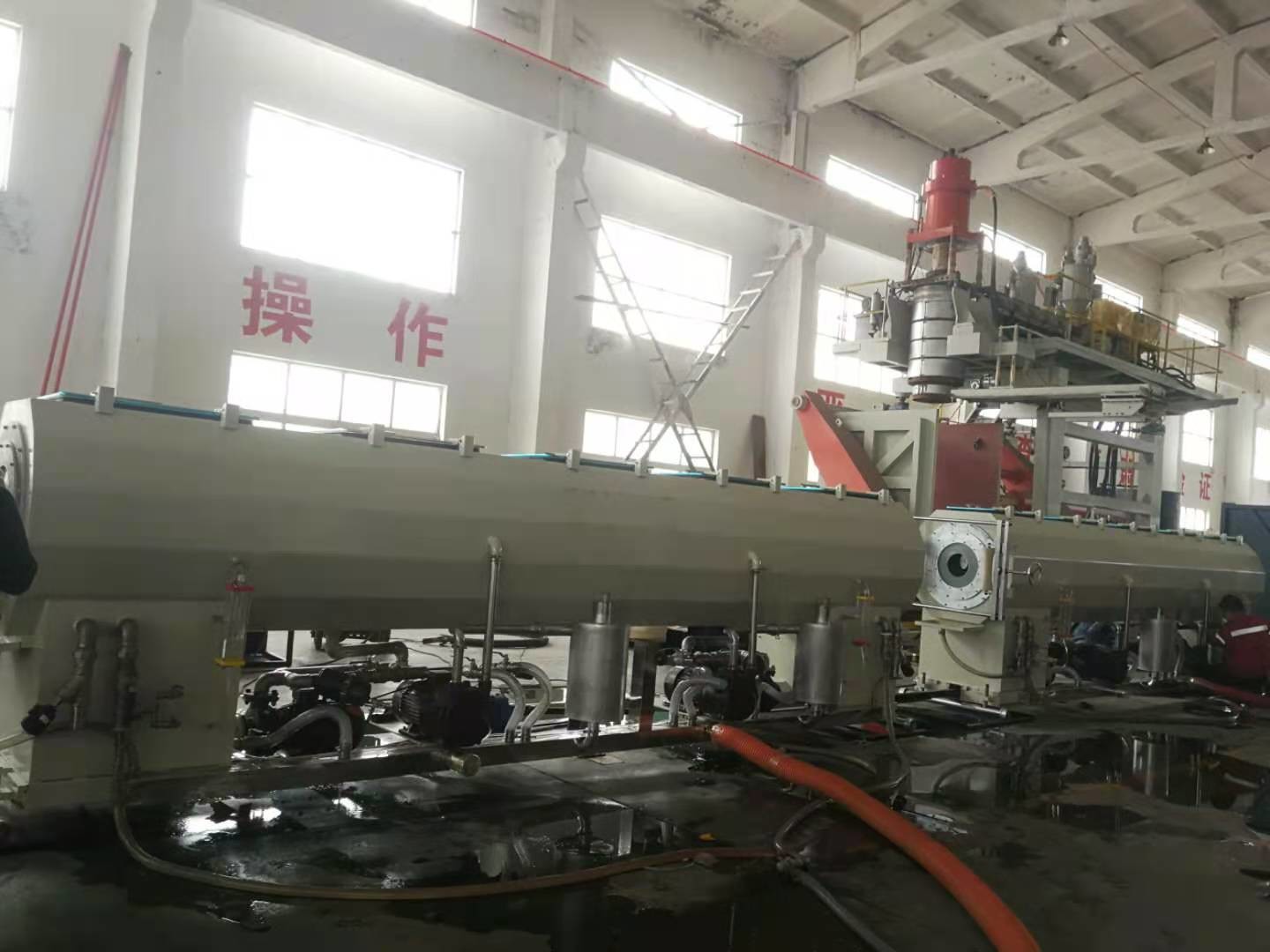

Vacuum calibrating water tank adopts high hardnedd high quality stainless steel sheet and is equipped wth advanced water cycling, high pressure cooling system, vacuum adjusting equipment and accurate water temperature and water level automatic controlling system.
Configuration of OD63mm Water supply and gas distribution plastic PE pipe extrusion/production line
|
No.
|
Name&Model
|
Quantity
|
| 1.0 | Single Screw Extruder SJ 65/30 | 1 set |
| 2.0 | Single Screw Extruder SJ 30/25 | 1 set |
| 3.0 | Die head | 1 set |
| 4.0 | Vacuum Tank | 1 set |
| 5.0 | Water Spraying Cooling Tank | 1 set |
| 6.0 | Hauling—Off Machine | 1 set |
| 7.0 | YYJ Serial Metering Printer | 1 set |
| 8.0 | Cutting Machine | 1 set |
| 9.0 | Overturning Bracket | 1 set |
| 10.0 | Control System | 1 set |
All the spare parts can be equipped with or whithout according to out customers's requirements.
Please kindly let us know if you have any special requirements.
|
NO. |
Inner Diameter( mm) |
Outside Diameter ( mm) |
| 1 | 20 | |
| 2 | 25 | |
| 3 | 32 | |
| 4 | 40 | |
| 5 | 50 | |
| 6 | 63 |
Application for the OD63mm Water supply and gas distribution plastic PE pipe extrusion/production line
Hdpe/pp pipes produced by this line have excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heating linkage and so on. It has become the first choice for the city gas pipe and outdoor water pipe.
This PP PE PPR Pipe Production Line Plastic Pipe Extrusion Line/ Plastic Pipe Extrusion Line is one stage plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelletized.
Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.
