15Kg/H Single Layer Corrugated Pipe Extrusion Line

15Kg/H Single Layer Corrugated Pipe Extrusion Line

15Kg/H Corrugated Pipe Extrusion Line

12m/min Corrugated Pipe Extrusion Line

Horizontal Corrugated Pipe Extrusion Line

Place of Origin:

CHINA

Brand Name:

SD HUASU

Certification:

ISO

Model Number:

SJ 45/30

Contact Us
Request A Quote
Product Details
Pipe Diameter:
4.5-9mm
Extruder:
SJ45/30
Capacity:
8-15Kg/h
Production Line Speed:
5-12m/min
Quantity Of Forming Mould:
38 Pairs
Motor Power:
11 Kw
Highlight:

15Kg/H Corrugated Pipe Extrusion Line

,

12m/min Corrugated Pipe Extrusion Line

,

Horizontal Corrugated Pipe Extrusion Line

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Packaging Details
STANDARD PACKAGE
Delivery Time
30 WORKING DAYS
Supply Ability
50 SETS/MONTH
Product Description

SJ 45/30 Single Layer Corrugated Pipe Extrusion Line Output 8-15Kg/h Horizontal Single wall Pipe making machine



1. Single wall corrugated pipe production machine is used to produce corrugated pipes of PE/PP/PVC, ETC. The specification we can do is from 4mm-160mm.

2. The Single wall corrugated pipe owns the features of high temperature resistance , anti-erosion, anti-abrasion and high strength. The pipe can be used as oil pipe in automobile braking system, and applied to high temperature gas, chemical liquid transferring. They are also widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

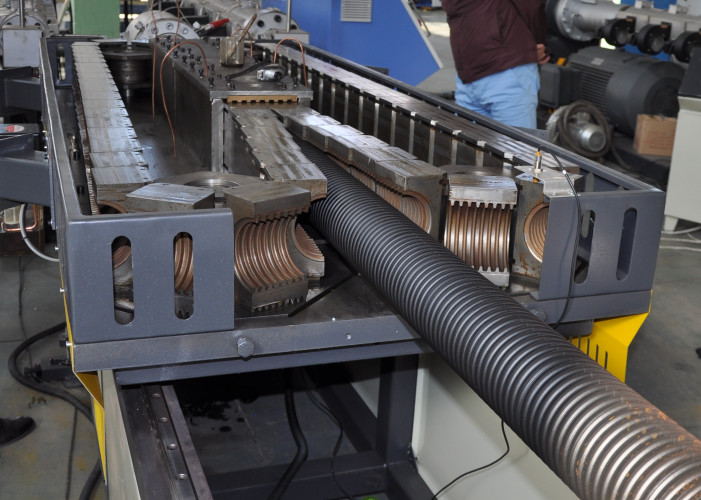

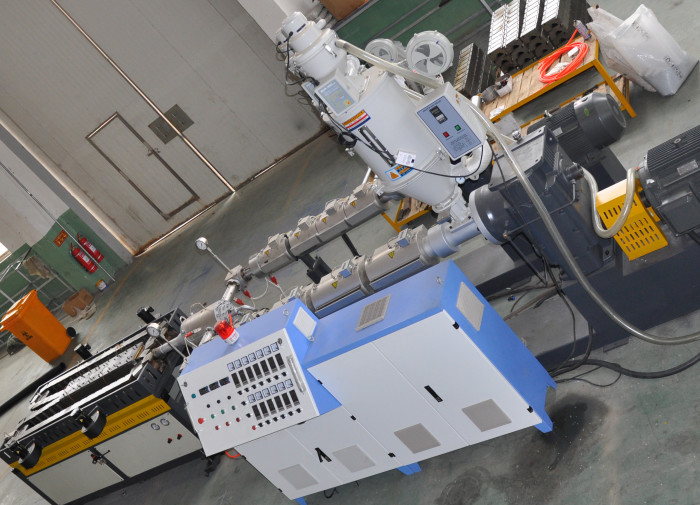

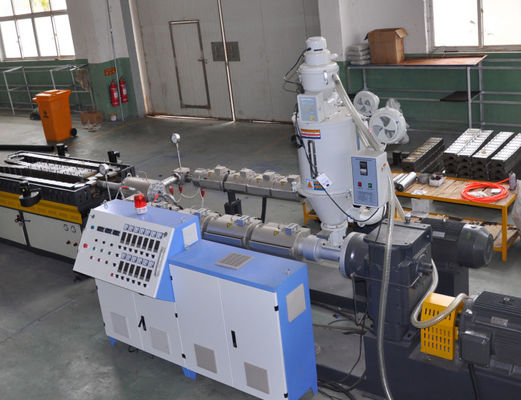

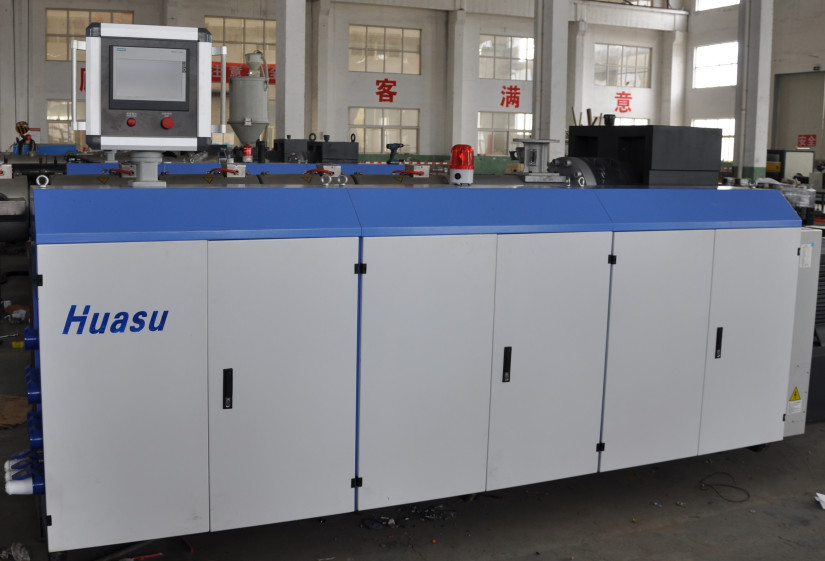

3. The single wall corrugated pipe production line consists extruder, corrugated forming machine, mold blocks, cooling equipment, counting machine and winding machine. It can continuously produce many kinds of diameter single wall corrugated pipe continueously.

Application:

1. Building industry: electrical conduit & sanitary duct, PP-PE-PVC-PA.

2. Automotive industry: Fuel line & wiring harness, PP-PA6-PA11-PA12.

3. Medical industry: breathing tubes, LLDPE, EVA.

4. Civil works industry: double wall cable conduit, HDPE.

5. Agriculture: single and double wall drainage pipe, HDPE, PVC.

Configuration:

No.


Name & Model


Quantity


1.0 Single Screw Extruder SJ30/30 1set
2.0 Molds

4mm die head mould block
4mm

4sets

6mm die head mould block
6mm

8mm die head mould block
8mm

12mm die head mould block
12mm

3.0 Forming Machine 1set
4.0 Winding Machine  1set
5.0 Control System  1set



Extruder


Motor



Max Output



Note


SJ45/30 11 kw 8-15 kg/h


FYI: Each machine can be customized as your requirements. For more info, you could contact Ellen
1. Shandong Huasu Plastic Technology Co., LTD. is a leading single layer corrugated pipe extrusion line manufacturer and supplier.
2. Single layer corrugated pipe extrusion line(also known as PVC PP PE single wall corrugated Pipe extruder, PVC PP PE single sheet corrugated pipe production line, PVC PP PE corrugated pipe making machine).
3. We also supply PVC pipe extrusion line, PE HDPE water gas supply pipe extrusion line, PP PPR pipe extrusion line, double layer corrugated pipe,PE Steel strip reinforced composite pipe,PE Steel wire reinforced composite pipe, PE steel mesh reinforced composite pipe,PE lay-flat hose extrusion line.
15Kg/H Single Layer Corrugated Pipe Extrusion Line 0
15Kg/H Single Layer Corrugated Pipe Extrusion Line 1

Finished pipes:

15Kg/H Single Layer Corrugated Pipe Extrusion Line 2
