| Place of Origin: | CHINA |
| Brand Name: | SD HUASU |
| Certification: | ISO |
| Model Number: | SJ 75/30 & SJ 55/30 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | STANDARD PACKAGE |
| Delivery Time: | 30 WORKING DAYS |
| Supply Ability: | 50 SETS/MONTH |
| Pipe Diameter: | 40-110mm | Extruder: | SJ 75/30 & SJ 55/30 |
|---|---|---|---|
| Capacity: | 120-160kg/h | AC Motor: | 150—1500 R.p.m 55kw |
| Inverter: | ABB | Feeding System: | Auto |
| Gear Type: | Helical Gear | ||
| High Light: | OD110mm Corrugated Pipe Extrusion Line,120kg/H Corrugated Pipe Extrusion Line,PLC Corrugated Pipe Extrusion Line |
||
· Horizontal structure, closed loop water cooling system
· Aluminum alloy moulds, easier and faster moulds replacement, no need to disassemble water tubes
· Electric adjustment for corrugator
· PLC control system
· Multi-point uniform vacuum technology
· Synchronous operation with other downstream equipment such as extruders, cutter etc.
Bridge prestressed and cable protection corrugated pipe extrusion line
Telephone, TV, computer, construction etc. Construction industry used as ventilation pipe
used as cable protection pipe
Washing machine telescopic pipe, machine Raining water collection etc.
and other threading pipe
Configuration:
|
No.
|
Name & Model
|
Quantity
|
|
| 01 | Single Screw Extruder SJ75/30 | 1 set | |
| 02 | Single Screw Extruder SJ55X30 | 1 set | |
| 03 | Molds |
40mm die head water sleeve mould block 40mm |
6 sets |
|
50mm die head water sleeve mould block 50mm |
|||
|
63mm die head water sleeve mould block 63mm |
|||
|
75mm die head water sleeve mould block 75mm |
|||
|
90mm die head water sleeve mould block 90mm |
|||
|
110mm die head water sleeve mould block 110mm |
|||
| 04 | Forming-Machine SBCJ-110 | 1 set | |
| 05 | Cutting Machine STG-110 | 1 set | |
| 06 | Winding Machine | 1 set | |
| 07 | PLC Control System | 1 set | |
FYI: Each machine can be customized as your requirements. For more info, you could contact Ellen
Die head
Huasu die head short flow channel design (reduced by 25%) achieves low temperature and low pressure extrusion.
Optimized design of Suba double layer die head, inner and outer wall thickness and wall deviation adjustment is very stable and convenient.
Extruder
The extruders use buffer forced feeding section, the power consumption of the main drive motors is reduced by about 30%;
The flow channel section of the extruder is optimized to ensure the production of pipe at low temperature and low pressure

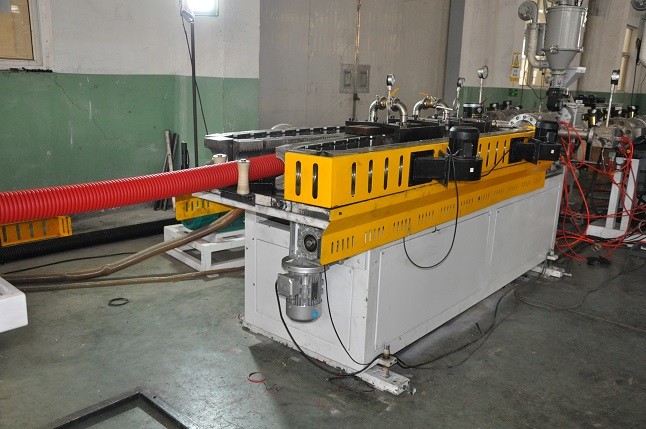

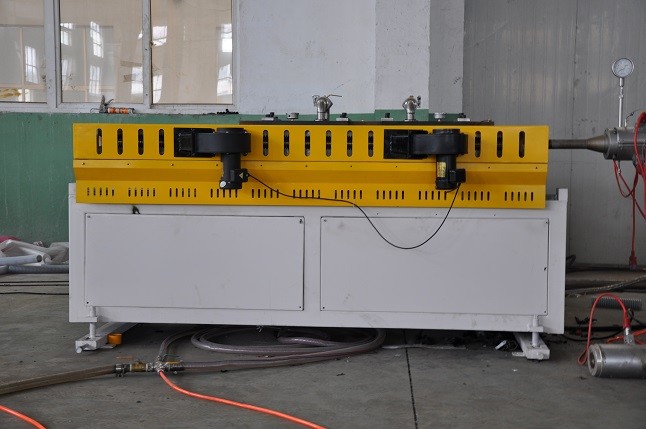

Corrugator
The patented closed loop direct water recycled cooling system, changing moulds no need to disassemble water tubes;
No platform design, different specifications of the moulds have same center height;
Patented drag chain design reduces equipment impact and improves service life of equipment
Mould
The optimized cooling cavity wall ensures the maximum cooling cross-sectional area, so that the cooling water has enough contact surface with the moulds, and the cooling efficiency is high.
Hot Tags: double wall corrugated pipe extrusion line produces OD40mm – OD110mm double layer corrugated pipes, extrusion line achieves high production speed with horizontal structure, water cooling and extrusion technology.
