200mm Closed Loop Double Wall Corrugated Pipe Machine
Product Details:
Place of Origin: CHINA
Brand Name: SD HUASU
Certification: ISO
Model Number: SJ 75/30 & SJ 55/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: STANDARD PACKAGE
Delivery Time: 30 WORKING DAYS
Supply Ability: 50 SETS/MONTH
Contact Now
Detailed Product Description
Pipe Diameter: 50-200mm Extruder: SJ 75/30 & SJ 55/30
Output: 120-160 Kg/h AC Motor: 150—1500 R.p.m 55kw
Inverter: ABB Feeding System: Auto
Gear Type: Helical Gear Gear Material: 20CrMnTi
Water Sleeve Material: High Quality Steel
High Light:

200mm Corrugated Pipe Machine

,

160kg/H Corrugated Pipe Machine

,

ISO Corrugated Pipe Machine

Horizontal Structure Closed Loop Water Cooling System Installed Double Wall Corrugated Pipe Extrusion Machine

Product Description:

Double wall corrugated pipe extrusion line produces OD50mm – OD200mm double layer corrugated pipes, extrusion line achieves high production speed with horizontal structure, water cooling and extrusion technology. The dwc corrugated pipe machine use 4th generation water cooling technology, all the moulds have cooling water inside for recycling, cooling efficiency is good, production speed is high.



Advantage

200mm Closed Loop Double Wall Corrugated Pipe Machine 0

200mm Closed Loop Double Wall Corrugated Pipe Machine 1



Application:

Bridge prestressed and cable protection corrugated pipe extrusion line

200mm Closed Loop Double Wall Corrugated Pipe Machine 2

Telephone, TV, computer, construction etc.       Construction industry used as ventilation pipe

used as cable protection pipe

200mm Closed Loop Double Wall Corrugated Pipe Machine 3

Washing machine telescopic pipe, machine     Raining water collection etc.

and other threading pipe

Configuration:



No.



Name & Model



Quantity



01 Single Screw Extruder SJ75/30  1 set
02 Single Screw Extruder SJ55X30  1 set

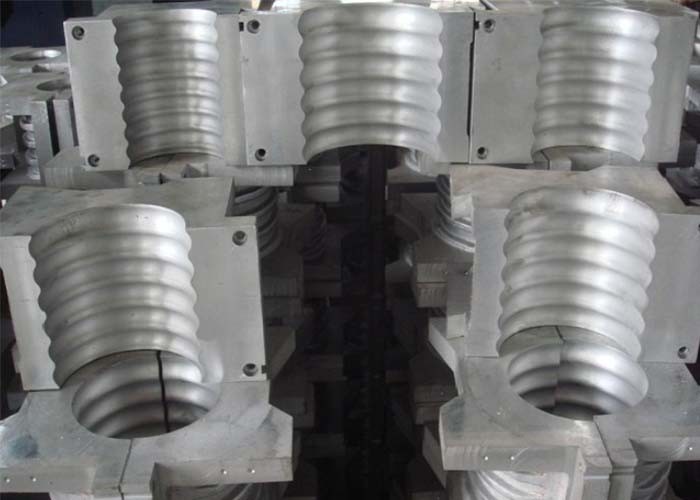

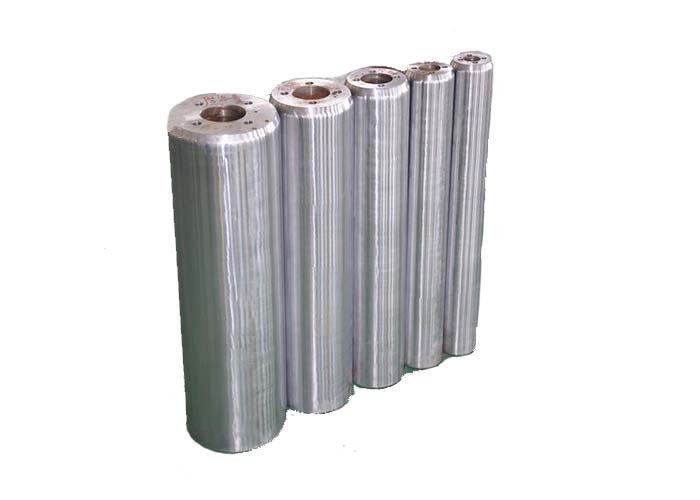

03 Molds

50mm die head water sleeve mould block

50mm

1 set


63mm die head water sleeve mould block

63mm

1 set


75mm die head water sleeve mould block

75mm

1 set


90mm die head water sleeve mould block

90mm

1 set


110mm die head water sleeve mould block

110mm

1 set


160mm die head water sleeve mould block

160mm

1 set


200mm die head water sleeve mould block

200mm 机头

1 set

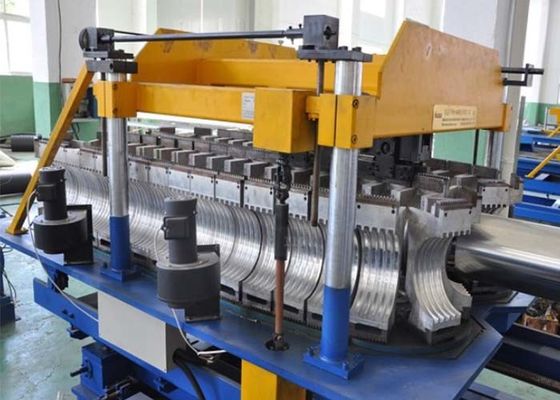

04 Forming-Machine SBCJ-200  1 set
05 Cutting Machine STG-200  1 set
06 Overturning Bracket  1 set
07 PLC Control System  1 set



NO.



Internal Diameter( mm)



Marks



1 50 all the size or shape can be customized
2 63 all the size or shape can be customized
3 75 all the size or shape can be customized
4 90 all the size or shape can be customized
5 110 all the size or shape can be customized
6 160 all the size or shape can be customized
7 200 all the size or shape can be customized



We have a high quality enterprise team. Providing technical guarantee for our product updates and upgrades, our employees have worked in the field of plastic extrusion for many years with rich experience. The new and recycled materials are applicable for our extrusion line, pipe diameters range can are OD40mm – ID1500mm. We use patented horizontal closed loop water cooling system and imported controllers; the extrusion lines are widely used and high praised by many well-known enterprises at China and abroad. Our extrusion line are exported to United Kingdom, Poland, Russia, Turkey, Syria, Azerbaijan, Uzbekistan, Tajikistan, Kyrgyzstan, Uruguay, Argentina, Peru, India, Kenya and many other Asian, European, African and South American countries. Huasu will continue to integrate the advanced technology and management experience of excellence, to provide all customers “high speed, efficient, stable, energy saving” products and quality services, we look forward to working with you to create a better tomorrow.

Hot Tags: double wall corrugated pipe extrusion line produces OD40mm – OD110mm double layer corrugated pipes, extrusion line achieves high production speed with horizontal structure, water cooling and extrusion technology.
