HDPE PVC Single Wall Corrugated Pipe Extrusion Line

HDPE PVC Single Wall Corrugated Pipe Extrusion Line

250kg/h Corrugated Pipe Extrusion Line

75kw Corrugated Pipe Extrusion Line

50mm Corrugated Pipe Extrusion Line

Place of Origin:

CHINA

Brand Name:

SD HUASU

Certification:

ISO

Model Number:

SJ 90/30 & SJ 65/30

Contact Us
Request A Quote
Product Details
Pipe Diameter:
50-200mm
Extruder:
SJ 75/30
Output:
90-250 Kg/h
AC Motor:
75kw
Inverter:
ABB
Feeding System:
Auto
Water Sleeve Material:
High Quality Steel
Die Head Structure:
Spiral
Mould Block Material:
High Quality Aluminum Alloy
Highlight:

250kg/h Corrugated Pipe Extrusion Line

,

75kw Corrugated Pipe Extrusion Line

,

50mm Corrugated Pipe Extrusion Line

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Packaging Details
STANDARD PACKAGE
Delivery Time
30 WORKING DAYS
Supply Ability
50 SETS/MONTH
Product Description

Plastic PE HDPE PVC Single Wall Corrugated Pipe Making Extrusion Production Line Machine

Product Description:

Plastic PE HDPE PVC Double Wall Corrugated Pipe Making Extrusion Production Line Machine of Shandong Huasu Plastic Technology Co., Ltd. The tube production adopts the direct extrusion technology, which has high production efficiency and reliable quality. The products are made of PE, PP, PVC and other raw materials are produced.



Due to its excellent pipe wall structure design, Plastic PE HDPE PVC Double Wall Corrugated Pipe Making Extrusion Production Line Machine has the characteristics of high ring rigidity, light weight, high pressure resistance, good toughness, corrosion resistance, good wear resistance, convenient construction, low installation cost, long service life, etc., which greatly reduces the cost of pipe, improves the market competitiveness of pipe, and makes the connection convenient and reliable without special complex pipe fittings It has been widely used in China and has been widely replaced by traditional concrete pipe and cast iron pipe.



In China, with the increase of urban and rural infrastructure, the construction of sewage pipe network, the use of wire casing, farmland irrigation, underground filtration irrigation, double wall corrugated pipe has a huge market space and development prospects.





Advantage

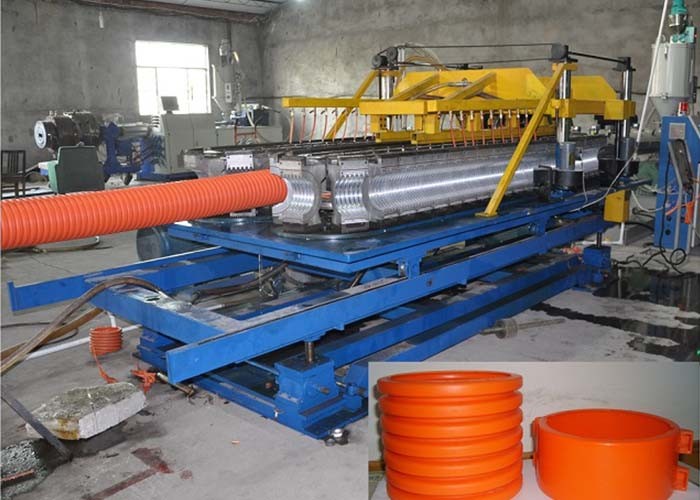

HDPE PVC Single Wall Corrugated Pipe Extrusion Line 0

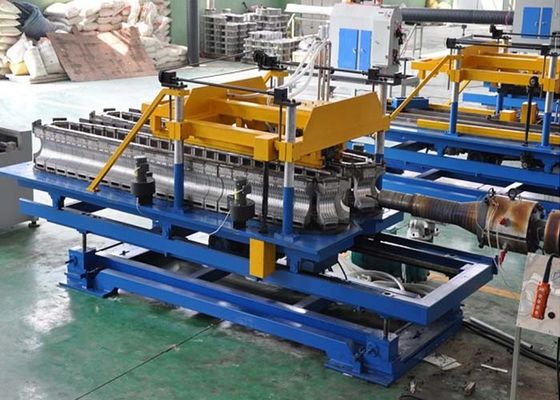

HDPE PVC Single Wall Corrugated Pipe Extrusion Line 1



Application:

Bridge prestressed and cable protection corrugated pipe extrusion line

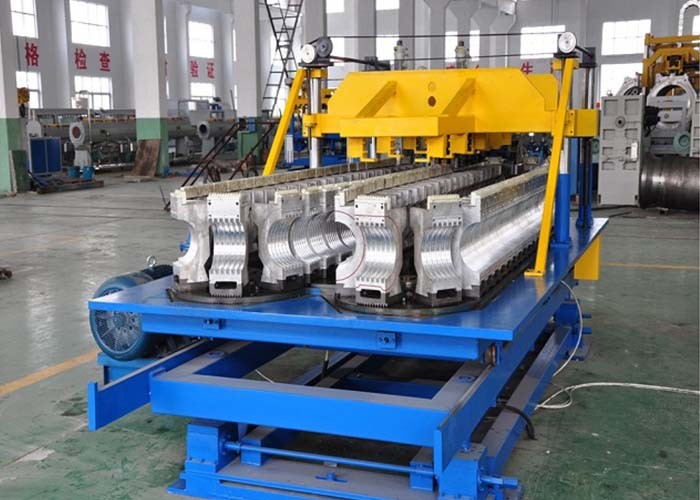

HDPE PVC Single Wall Corrugated Pipe Extrusion Line 2

Telephone, TV, computer, construction etc.       Construction industry used as ventilation pipe

used as cable protection pipe

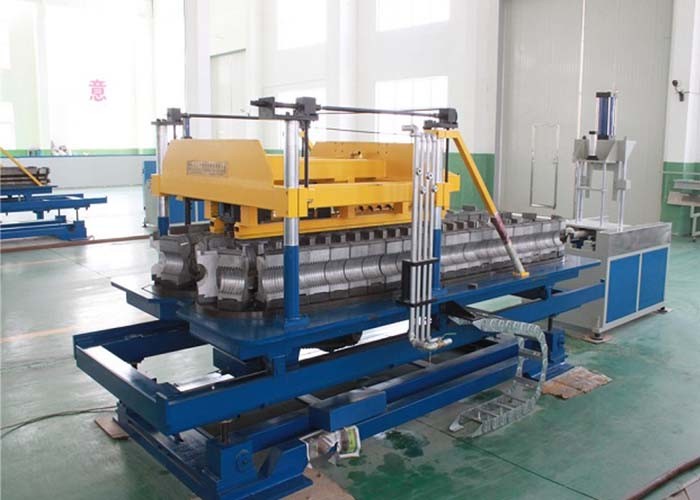

HDPE PVC Single Wall Corrugated Pipe Extrusion Line 3

Washing machine telescopic pipe, machine     Raining water collection etc.

and other threading pipe

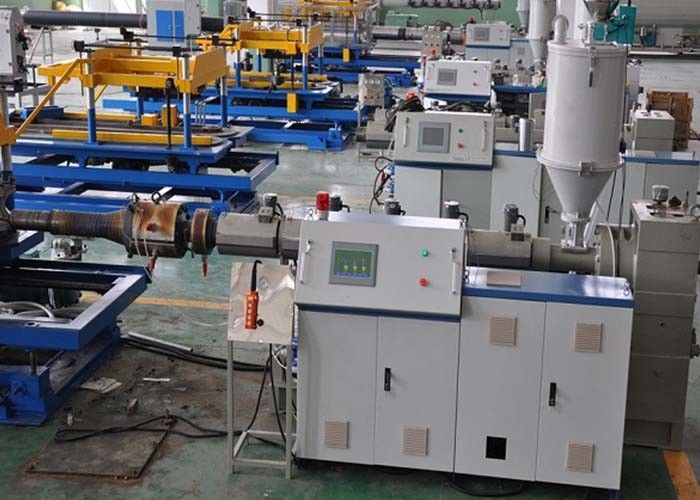

HDPE PVC Single Wall Corrugated Pipe Extrusion Line 4

Drainage, sewage                                            Civil engineering etc

Configuration:



No.



Name & Model



Quantity



01 Single Screw Extruder SJ90X30 1 set
02 Single Screw Extruder SJ65X30 (double wall) 1 set
03 Molds

90mm die head water sleeve mould block

90mm

1 set


110mm die head water sleeve mould block

110mm

1 set


160mm die head water sleeve mould block

160mm

1 set


200mm die head water sleeve mould block

200mm

1 set


250mm die head water sleeve mould block

250mm

1 set
04 Forming Machine SBCJ-315  1 set
05 Cutting Machine STG-315  1 set
06 Unloading Bracket  1 set
07 PLC Control System SBG 315  1 set



Our After-sales Service include

Installation and commissioning of the Huasu corrugated pipe machines worldwide

Training of customers’ technicians on how to use and maintain the corrugated pipe machines.

Trouble-shooting by phone, by Internet or on the site.

General overhaul of corrugated pipe extrusion line

Relocation of the machines

Upgrade the machines at customer factory

Regular Inspection to the corrugated pipe machines

Hot Tags: double wall corrugated pipe extrusion line produces OD40mm – OD1200mm double layer corrugated pipes, extrusion line achieves high production speed with horizontal structure, water cooling and extrusion technology
