Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line

Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line

  • Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line
  • Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line
  • Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line
  • Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line
  • Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line
Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line
Product Details:
Place of Origin: Shandong, China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: PE water supply pipe
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 30 sets / month
Contact Now
Detailed Product Description
Extruder: SJ 120/30 Extruder For Marking: SJ 30/25
Line Speed: High Production Speed Max Output: 450-600kg/h
Die Head Heating Type: Stainless Steel Heating Ring Calibrating Sleeve Material: Nickel Alloy
High Light:

600kg/H HDPE Pipe Extrusion Line

,

OD 200mm HDPE Pipe Extrusion Line

,

CE HDPE Pipe Extrusion Line

Water Supply And Gas Distribution Plastic PE Pipe Extrusion/Production Line

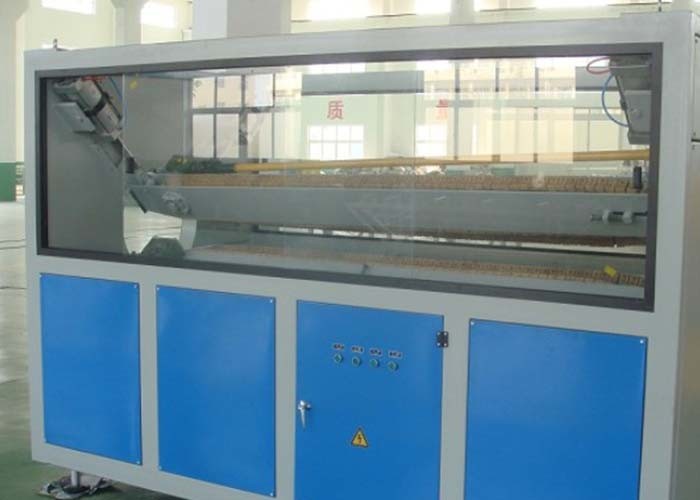

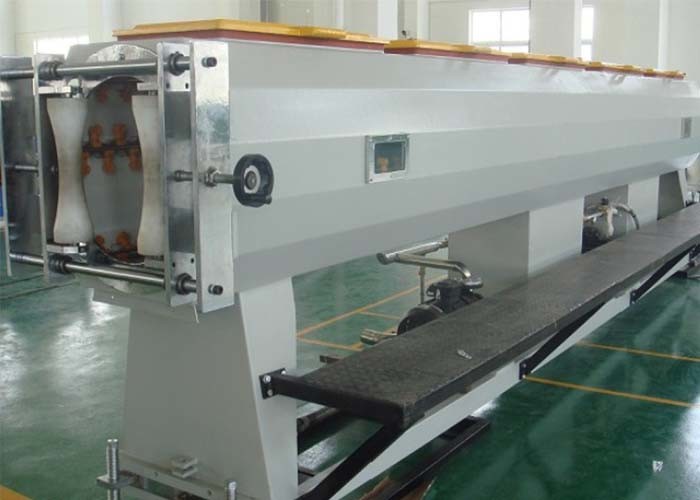

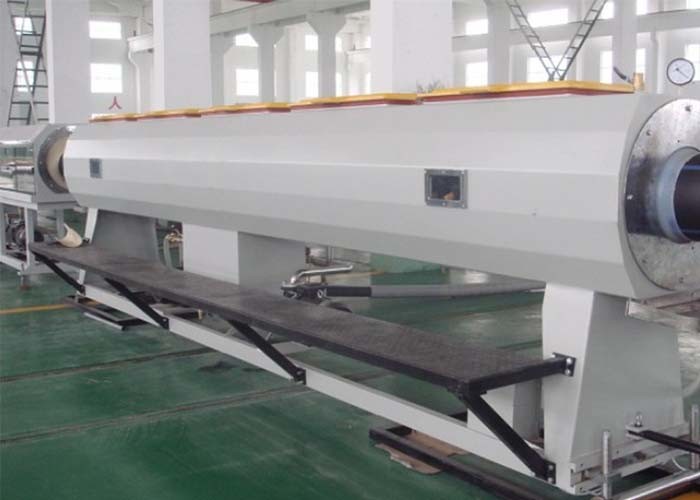

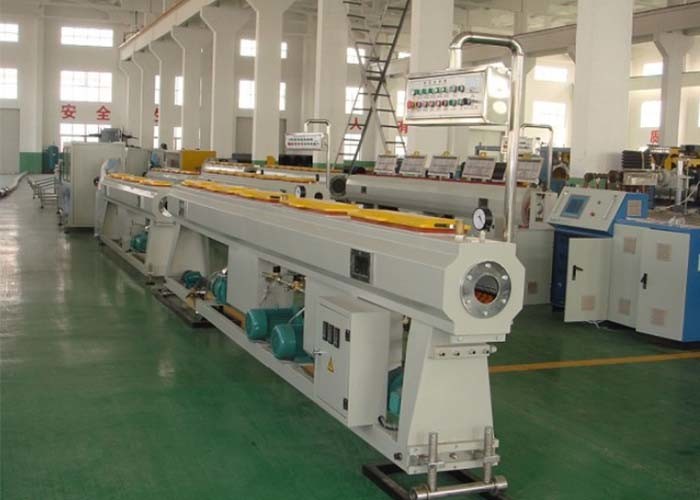

The production line use high-speed single-screw extruder, equipped with low noise fan and high speed and hard tooth gear box, thus ensuring the high-speed and high-performance extrusion. Machining head made of high quality materials, using advanced machining center, thus ensuring the processing accuracy and the extrusion uniformity of raw material. The vacuum sizing water tank is made of high hardness and high quality stainless steel plate, and equipped with advanced water circulation and high pressure cooling system, vacuum degree adjustment device and accurate water temperature and level control system. The cutting machine adopt automatic chipless cutting to ensure the smooth cut surface. In short, the whole production line is a intelligent control system.

Main Advantages of HDPE pipe:

1. Production line rational layout
2. High automation
3. Simple operation, good handling performance
4. Stable and reliable continuous production capacity







Model Pipe rang Extruder model Main motor power /kw Max.capacity kg
HS-63 φ16-63 SJ-60/38 110 350-400
HS-110 φ20-110 SJ-60/38 110 350-400
HS-160 φ40-160 SJ-60/38 110 350-400
HS-250 φ50-250 SJ-75/38 160 500-550
HS-400 φ160-450 SJ-90/38 220 700-800
HS-630 φ250-630 SJ-120/38 2355 1100-1200
HS-800 φ315-800 SJ-120/38 355 1100-1200
HS-1200 φ500-1200 SJ-150/38 450 1400-1500
HS-1600 φ710-1600 SJ-150/38 450 1400-1500









  • Pipe size list



NO.



Inner Diameter( mm)



Outside Diameter ( mm)



Remark



1   200
2   225
3   250
4   280
5   315
6   355
7   400
8   450
9   500

Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line 0

Water Supply 600kg/H OD 200mm HDPE Pipe Extrusion Line 1

Service

1. Product electrical components to implement quality assurance for six months (from date of shipment)



2. Equipment Quality Assurance warranty period of one year (from date of shipment)



3. Quality guarantee period, should the damage appears artificial parts, the company will be provided free of charge to the purchaser Manufacturers



4. Quality guarantee period, the company will provide the most preferential prices paid to the purchaser Manufacturers



5. "Supply-side free of charge to provide the main electrical appliances, spare parts manual and maintenance of books, equipment manuals, and machine maintenance information, provision of equipment, water, electricity, gas and equipment installation plans.



6. For the party responsible for assisting in installation, commissioning and training services, equipment, three bags of one year after leaving the factory, three bags of equipment, one year after the supply of spare parts according to price. "
