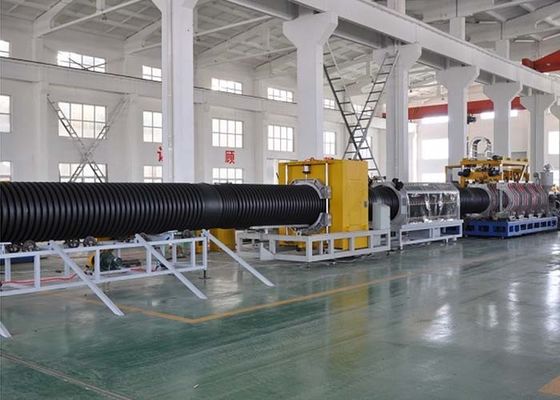

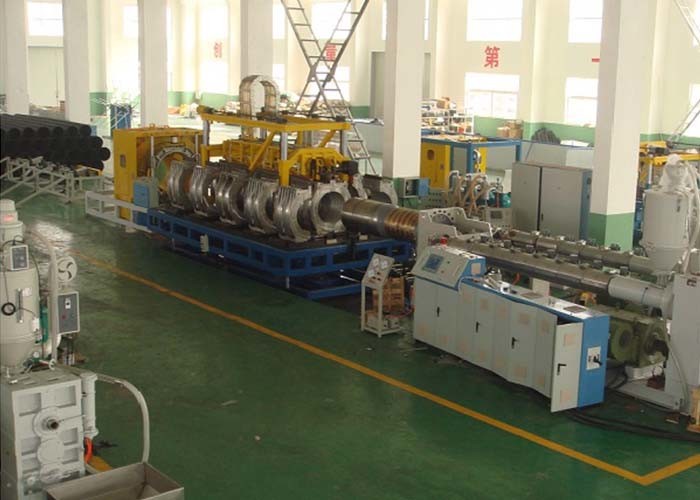

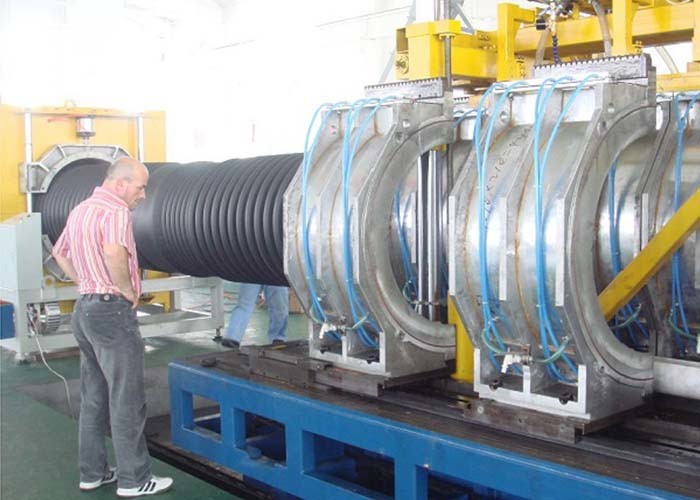

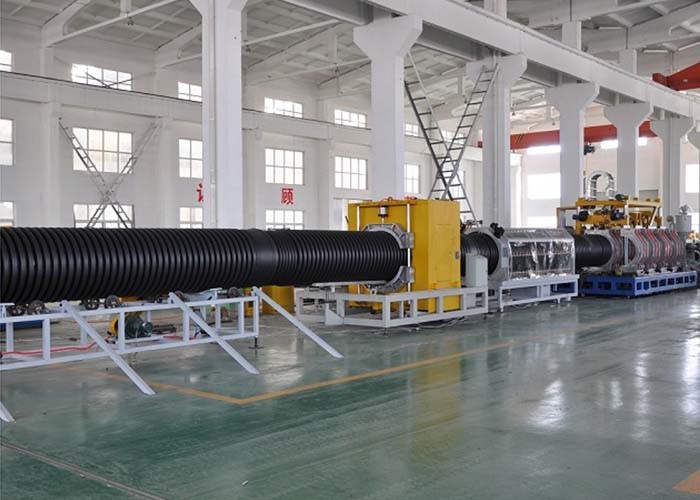

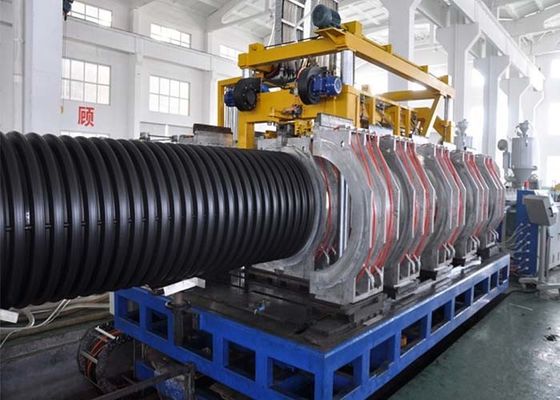

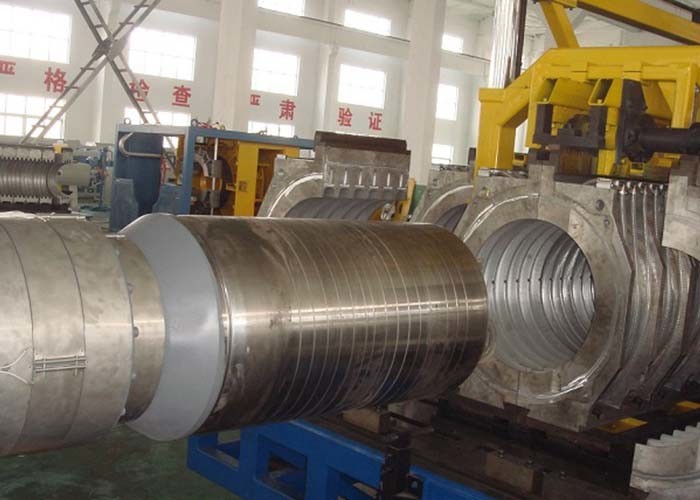

Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine

Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine

  • Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine
  • Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine
  • Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine
  • Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine
  • Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine
Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine
Product Details:
Place of Origin: CHINA
Brand Name: SD HUASU
Certification: ISO9000-2008
Model Number: SJ 120/30 & SJ 9030
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: STANDARD PACKAGE
Delivery Time: 30 WORKING DAYS
Supply Ability: 50 SETS/MONTH
Contact Now
Detailed Product Description
Pipe Diameter: 500-800mm Extruder: SJ 120/30 & SJ 90/30
Capacity: 600 Kg/h AC Motor: 75kw
Inverter: ABB Feeding System: Auto
Gear Type: Helical Gear Water Sleeve Material: High Quality Alloy Steel, Polishing Chrome Plated
High Light:

800mm DWC Pipe Machine

,

600kg/H DWC Pipe Machine

,

HDPE DWC Pipe Machine

DWC Corrugated Machine HDPE Double Wall Corrugated Pipe Line SBG 800 Making Drainage Pipes Electrical Ducts

Technical Data

Model MIN. I. D.(mm) MAX O.D. (mm) Chian Length(mm) No. Of Mould Process Material Supply Drive
HS-63/92 30 63 6062 92 HD.P.P. 3.5 KW
HS-75/92 38 75 6062 92 HD.P.P. 5.0 KW
HS-120/54 38 120 6102 54 HD.P.P. 5.5 KW
HS-180/60 65 180 6000 60 HD.P.P. 7.5 KW
HS-200/56 90 200 6320 56 HD.P.P. 7.5 KW
HS-314/45 110 315 6210 45 HD.P.P. 5.2 KW

The Double wall corrugated pipe extrusion line by Huasu is provided with the vast range of size and configurations. The high-end Corrugated pipe Machines India are provided with economic range and fabricated with deftly designed components. It is equipped with the high performance electric motor and gearbox, which are used to give the extrusion process continuity and efficiency.

It is fabricated with considering the high productivity of Corrugator Machine to facilitate investors achieve maximum return with low investment. We believe in providing the qualitative range of machinery, hence, we invest in time and resources.

The research and development department of our organization is comprising by an experienced team of professionals. Our researchers are engaged in the innovation of more lucrative mechanized progression without hampering the quality and efficiency of machine range.

Apart from this, our production department is equipped with all obligatory facilities. Due to the advanced workshop, we can accelerate the production of Corrugator Machines. DWC Corrugator Machines in Ahmadabad by Primeflexitech is highly demanding range in market. We always keep a track of the existing market trend and develop our facilities accordingly.

Application for DWC Corrugator Machines

Drainage pipes

Drainage requirements vary widely. Many types of drainage pipes are available in market such as Drainage pipes for the storm water management, agricultural and turf drainage, municipal drainage, and highway drainage. Drainage pipes are available with pipe variations like perforations, smooth interior and different geotextile socks.
The smooth interior of plastic pipe makes it easier to clean. It is provided with the access ports if needed and can be designed into plastic pipe at regular intervals to facilitate the inspection to be easily conducted.

Electrical ducts

As prime flexitech is the foremost manufacturer and supplier of efficient range of the DWC Corrugator Machines India, it supplies machines for the production of Electrical ducts. We know the plastic piping system is environmentally dependable choice. Long service life and recyclability of the Electrical Ducts have created high demand of the double wall corrugated pipe plant in market.
In order to offer the good efficiency of the machine, it is provided with the ideal cooling system with inbuilt cooling channel. The additional cooling is also acquired with air chiller for the enhanced output and superior finish of the Electrical ducts.

Agriculture & irrigation work

DWC pipe machine is a highly efficient machine producing with varied outer diameter for the Agriculture & irrigation work. These pipelines are produced by DWC Corrugator Machine in Shandong Province, China.
The double wall corrugated pipe is a favored pipeline for the irrigation in Agriculture sector. Among its many advantages, these double wall corrugated pipes are strong and light in weight
These pipe machine for the pipelines for the Agriculture & irrigation work is available with the centralized lubrication system for the smooth operation. This ideal lubrication system bestows the specific pulse to the system and this pipe machine function with low friction.

Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine 0

Helical Gear 600kg/H 800mm HDPE DWC Pipe Machine 1

Hot Tags: double wall corrugated pipe extrusion line produces/ double layer corrugated pipes/extrusion line achieves high production speed with horizontal structure, water cooling and extrusion technology
