8m/Min plastic Single Wall Corrugated Pipe Extrusion Line

Product Details:

Place of Origin:	CHINA
Brand Name:	SD HUASU
Certification:	ISO
Model Number:	SJ 45-75

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	STANDARD PACKAGE
Delivery Time:	30 WORKING DAYS
Supply Ability:	50 SETS/MONTH

Contact Now

Detailed Product Description

Pipe Diameter:	5-160 Mm	Extruder:	SJ 75/30
Output:	2-8m/min	AC Motor:	60kw
Inverter:	ABB	Feeding System:	Auto
Water Sleeve Material:	High Quality Steel	Mould Block Material:	High Quality Aluminum Alloy
High Light:	8m/Min Corrugated Pipe Extrusion Line , 8m/Min Corrugated Pipe Extrusion Line , 60kw Corrugated Pipe Extrusion Line

PE, PP, PVC single wall corrugated pipe extrusion line machine

This production line can be used to produce corrugated pipes of PE, PP,EVA, PVC, PA continuously.

Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resistance, high intensity and good flexibility,etc. They are widely used in fields of auto wire harness, electric thread-passing pipes, circuit of machine tool, protective of lamps and lantern wires, tubes of air conditioner and washing machine etc.

Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resiatance,high intensity and good flexibility,etc.they are widely used in fields of auto wire harness, electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lantern wires,tubes of air conditioner and washing machine,etc.

SDHS series plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are specially used as wires of the up-market cars.

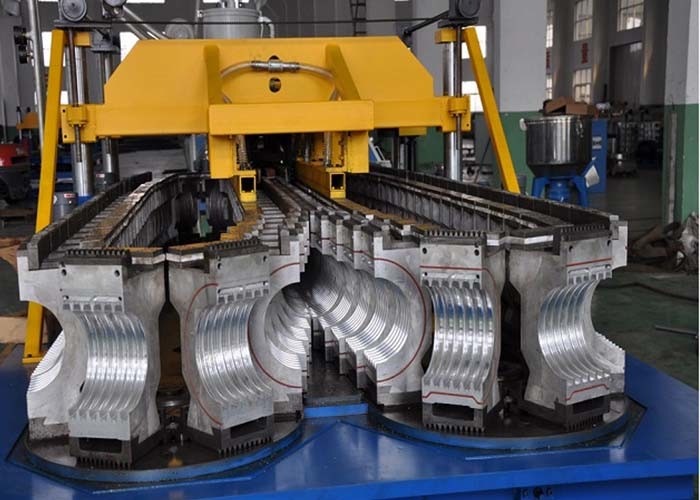

SDHS high speed single wall corrugated pipe machine is developed on the basis of our original single wall pipe machine.The moulds are moved by gear on the runway.It is equipped with specially designed water cooling sealing system,and the lubrication oil can be injected automatically.In the forming machine, for small sizes mould,it can be set with two mould chambers which can make two different sizes of pipes only by adjsuting the height of forming machine automatically.All these features improve the production speed of single wall corrugatede pipes to a great exrent,which can reach 20-25m/min.

We also have normal speed single wall corrugated pipe production line, the line speed can upto 8-12m/min.

Applications:PP/PE/PVC/EVA/PA high speed single wall corrugated pipe making machine can produce electrical thread-passing pipes,circuit of machine tool,protective pipe of lamps,water pipes in conditioner,washing machine, bathroom, etc.

CONFIGURATION

No.	Name & Model		Quantity
1.0	Single Screw Extruder SJ30/30		1 set
2.0	Molds	4mm die head mould block 4mm	1 set
		6mm die head mould block 6mm	1 set
		8mm die head mould block 8mm	1 set
		12mm die head mould block 12mm	1 set

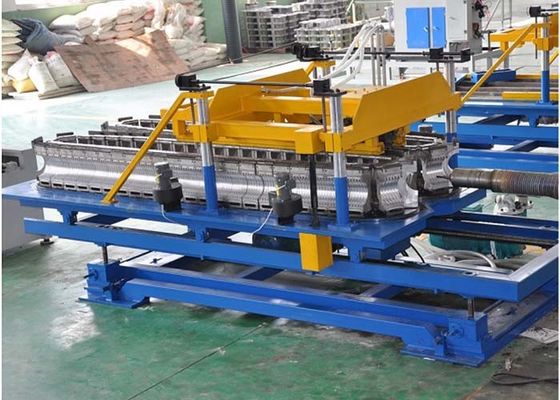

3.0	Forming Machine		1 set
4.0	Winding Machine		1 set
5.0	Control System		1 set

8m/Min plastic Single Wall Corrugated Pipe Extrusion Line 0

Qingdao Huasu Plastic Technology Co., LTD is a professional plastic extrusion machines manufacturer which stands by the Jiaozhou Bay. Converged with the national first-class scientific talests, our company is engaged in the study of new- type plastic machines and the conversion of international high-and –new technology. Cooperating with scientific research instifutions and institutions of higher education , we are converting the newest scientific payoffs at top speed. We will supply you the high-performance and high-tech plastic machines, Hollow sheet machine, Corrugated pipe machine, PVC and WPC foam board making machine
