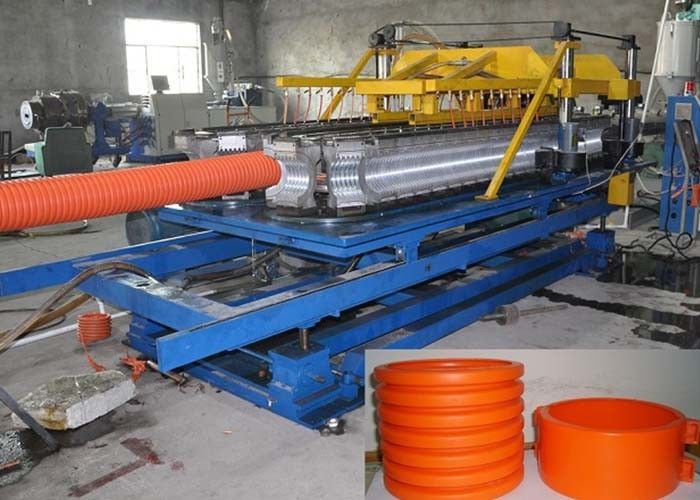

9mm 20kg/H Single Wall Corrugated Pipe Production Line
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD HUASU |
| Certification | ISO |
| Model Number | SBG 9-32 |
| Minimum Order Quantity | 1 SET |
| Packaging Details | STANDARD PACKAGE |
| Delivery Time | 30 WORKING DAYS |
| Payment Terms | T/T |
| Supply Ability | 50 SETS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe Diameter | 9-32 Mm | Extruder | SJ 45/30 |
|---|---|---|---|
| Output | 20-40kg/h | AC Motor | 60kw |
| Inverter | ABB | Feeding System | Auto |
| Water Sleeve Material | High Quality Steel | Mould Block Material | High Quality Aluminum Alloy |
| Highlight | 9mm Corrugated Pipe Production Line,20kg/H Corrugated Pipe Production Line,12kw Corrugated Pipe Production Line |
||
Product Description
20-40kg/h Single Wall Corrugated Pipe Production Line SBG-32 Making 9mm-32mm Single Wall Corrugated Pipe
Product Detail
The high speed corrugated pipe machinery features:
1. High speed high efficiency extruder, 20% less power than normal type but 20kg/h higher output. Our 45/33 high speed high efficiency extruder could meet 70-80kg/h, it is enough to support 20m/min for 10-50mm diameter corrugated pipe.
2. Good design and good quality forming machine. Gear driven and 100% covered water cooling system for forming machine to support high speed running.
3. Automatic winder, it could meets 20m/min speed coiling.
Equipment Configuration
|
No.
|
Name & Model
|
Quantity
|
|
| 1.0 | Single Screw Extruder SJ-45/30 | 1 set | |
| 2.0 | Molds |
9mm die head mould block 9mm |
1 set |
|
32mm die head mould block 32mm |
1 set | ||

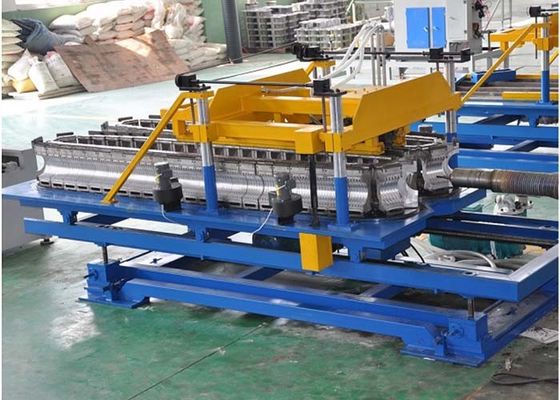

| 3.0 | Forming Machine | 1 set | |
| 4.0 | Winding Machine | 1 set | |
| 5.0 | Control System | 1 set | |
|
Extruder
|
Motor
|
Max Output
|
Note
|
| SJ45/30 | 11kw | 20-40kg/h |
Single-Screw Extruder SJ-45/30
--Screw hardness of screw HV>740
--Barrel hardness of barrel HV>940
--Material 38CrMoAlA nitriding handling
--Depth of barrel nitriding 0.4--0.7mm
--Depth of screw nitriding 0.3-0.6mm
--Diameter of screw 45mm
--L:D 30︰1
Heating& Cooling
--Barrel heating zone 3 zones×4kw
--Barrel cooling zone 3 zones×0.06kw
--Heating power 12kw
Driving
--Drive motor 11kw
--Frequency Conversion
--Wheel Box hard gear surface
Die Head
--Specification φ9-φ32mm
--Material 40Cr
--Heating loop Stainless steel

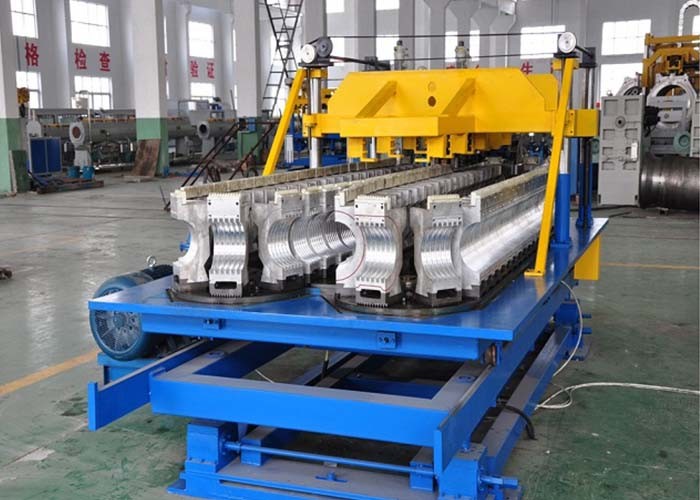

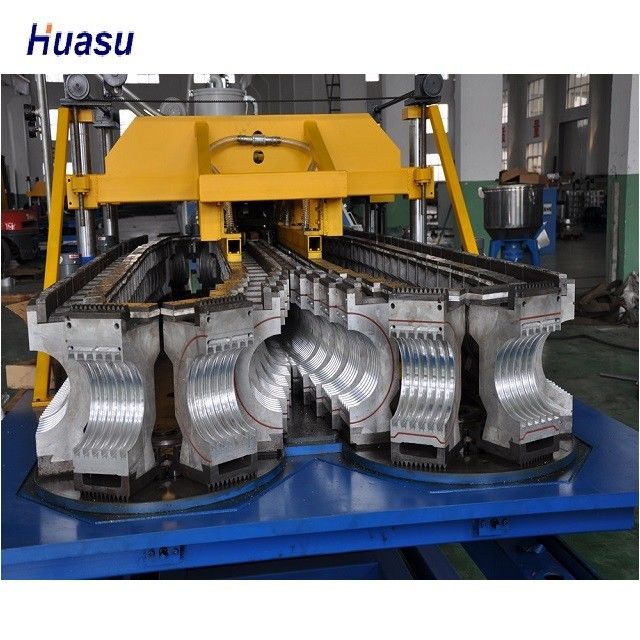

Mould Blocks
--Specification φ9-φ32mm
--Amount 44 pairs
--Mold Block Total Length 44×56.55 = 2488.2mm
For more info, please contact Ellen: huasu1@qdhuasu.com
