| Place of Origin: | Shandong, China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | PE water supply pipe extrusion line |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets / month |
| Line Model: | SJ 75 | Screw Diameter: | 75 Mm |
|---|---|---|---|
| L/D: | 36:1 | Production Speed: | 50m/min |
| Nominal Power: | 155 KW | ||
| High Light: | 50m/Min HDPE Pipe Extrusion Line,155KW HDPE Pipe Extrusion Line,75mm Screw HDPE Pipe Extrusion Line |
||
High Speed HDPE Pipe Production Line Adopts Specially Designed High Efficient Five-Section Type Screw And Barrel
| Type | Pipe ID (mm) | Max production capacity (kw/h) | Energy Consumption (kw) |
| SJ-55/30 | Φ10-Φ32 | 80 | 40 |
| SJ-65/30 | Φ20-Φ63 | 120 | 55 |
| SJ-75/33 | Φ50-Φ160 | 250 | 85 |
| SJ-90/33 | Φ75-Φ250 | 300 | 110 |
| SJ-90/33 | Φ110-Φ315 | 400 | 130 |
| SJ-120/33 | Φ250-Φ630 | 800 | 300 |
| SJ-150/33 | Φ315-Φ800 | 1100 | 380 |
| SJ-120/38 | Φ710-Φ1200 | 1300 | 480 |

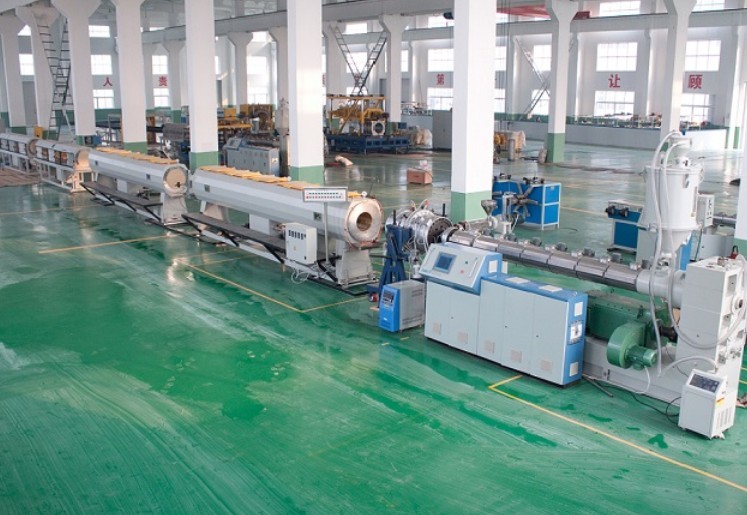

HDPE Gas/Water Supply Pipe Extrusion Line adopts unique structure, high degree of automation, convenient operation, stable and reliable continuous production.a..
This line is mainly used to produce HDPE pipe for water/gas supply, and sewage and drain pipe, also undergroud pipes. It adopts the PE efficient screw, notched barrel and forced cooling mandrel. The conveying capacity is improved greatly to ensure efficient extruding. A professional PLC control system is adopted in the extrusion line for high automation, reliable running and easy operation.

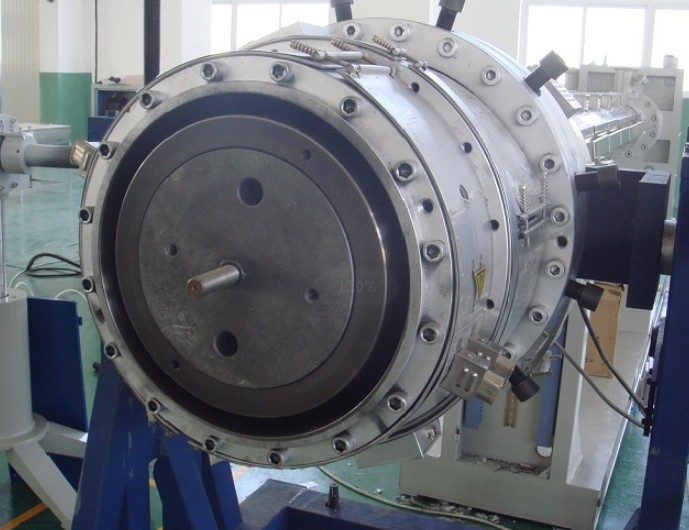

● Die Head
◎ The specially designed spiral pressure-storage die head ofthis HDPE pipe making
machine effectively overcomes the instantaneous fluctuation of extrusion pressure,
◎ Realizing high speed and constant pressure extrusion of materials.
● Automatic Coiler
◎ The automatic double working station pipe coiler of this HDPE pipe machinery can
realize automatic reel changing according to set length,automatic cutting and coiling.
(single working station is available)
◎Using servo controlled high precise traversing device and tension control device.
◎ SIEMENS PLC independent control.
● Siemens PLC Control System
◎ The production line tomake HDPE pipe adopts original new generation PLC control system.
◎ Adopting Multi-point closed loop control system, ensuring high speed synchronous control and reliable operating.
OTHER PRODUCTS
| Type | Model | pipe ID (mm) |
| standard PE/PP double wall corrugated pipe extrusion line | SBG63 | 32-63 |
| SBG200 | 50-200 | |
| SBG315 | 200-250 | |
| SBG500 | 200-500 | |
| SBG800 | 500-800 | |
| SBG1000 | 800-1000 | |
| SBG1200 | 1000-1200 | |
| high speed PE/PP double wall corrugated pipe extrusion line | SBG300H | 90-300 |
| SBG600H | 200-600 | |
| SBG800H | 500-800 | |
| SBG1000H | 500-1000 | |
| SBG1200H | 800-1200 | |
| pvc pipe extrusion line | SBGPVC | 63-1200 |
CE Certification and ISO9001 Certification;
The Vice President Unit of Qingdao Plastic Machinery Association,
The Civilized and Honest Private Enterprise of Jiaozhou City.
In 2014 we lanuched the Φ200-Φ600mm HIGH SPEED double wall corrugated pipe line successively which adopted horizontal structure, shuttle type.
· In 2009 it manufactured eco-friendly energy-efficient foam insulated corrugated pipe line for water and heat transfer.
· In 2008 we introduced the Φ3000mm dual-flat large-diameter steel belt winding pipe production line.
· In 2007 we developed the Φ800-Φ1200mm model with shuttle transmission and Siemens PLC control, adopting servo motor with belling online system and sealed water cooling. As one of our most popular models, it is widely distributed all over the world.
· In 2006 we unveiled China’s first Φ38-Φ63mm model with chain transmission.
· In 2005 we lanuched the Φ500-Φ800mm model with horizontal structure and shuttle type transmission.
· In 2004 we introduced the Φ200-Φ500mm model.
· In 2001 Qingdao HUASU Machinery Fabricate Co., Ltd. was established.
