| Place of Origin: | Shandong, China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | HUGE CALIBER HOLLOWNESS WALL SPIRAL PIPE LINE |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets / month |
| HUGE CALIBER HOLLOWNESS WALL SPIRAL PIPE: | Water Drainage | Pipe Length: | According The Customer’s Inquiry |
|---|---|---|---|
| Recommended Raw Material: | New Material For PE Pipe | Diameter ( Mm ): | Φ400,Φ500,Φ600，Φ800，Φ1000，Φ1200 |
| Power: | 380 V X 50 Hz X 3 Phase (according To Client’s Demand) | SJ-90/30: | 75kw |
| SJ-65/30: | 37kw | ||
| High Light: | Caliber 1200mm Pipe Extrusion Line,ISO9001 HDPE Pipe Extrusion Line,260kg/H HDPE Pipe Extrusion Line |
||

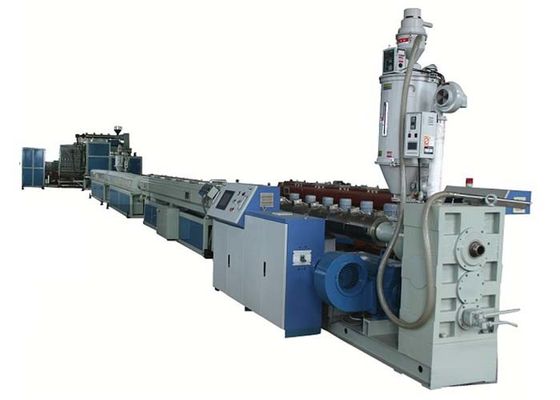

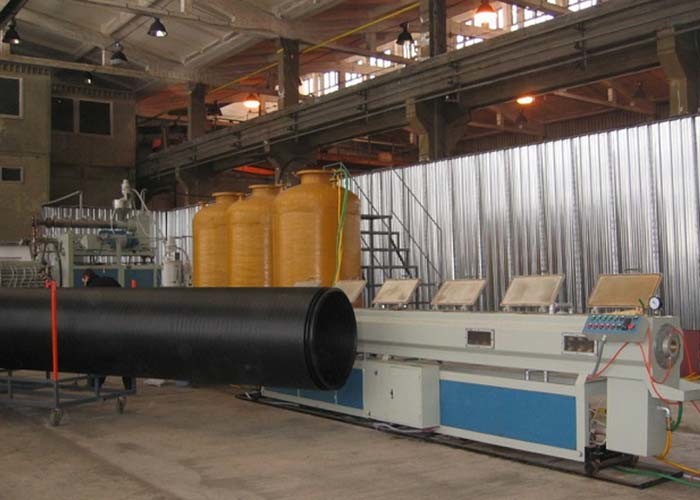

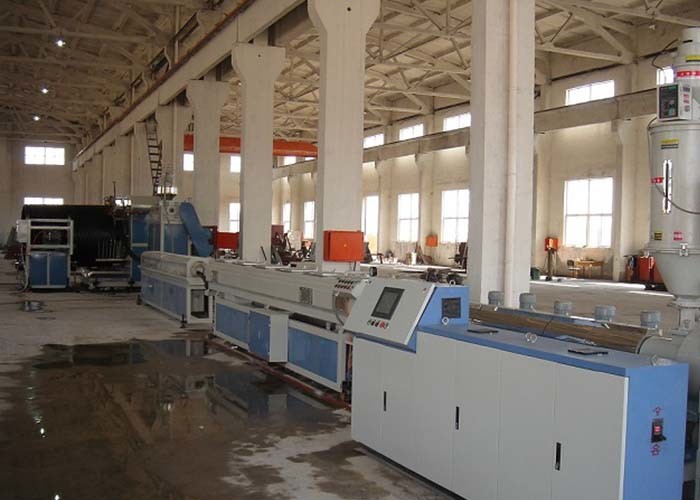

PE Huge Caliber 400mm-1200mm Hollowness Wall Spiral Pipe Production Making Double Wall Pipe
| Location | Workshop |
| Power Supply | No dangerous area, No power stop area |
| Humidity degree | ≤95% |
| Temperature | 0-36℃ |
| Power | 380 V x 50 Hz x 3 Phase (according to client’s demand) |
| Total Power | 180kw |
|
Cooling Water
|
Recycling water. ≤20℃, ≥0.3Mpa, ～2m3/h |
|
Compressed air
|
0.3m3/min, ＞0.5Mpa |
|
Line Dimension
|
25m*18m*2.5m |
|
Extruder
|
Motor
|
Max Output
|
Note
|
| SJ-90/30 | 75kw | 260kg/h | |
| SJ-65/30 | 37kw | 120kg/h |
1. The output capacity varies with the materials and the operation conditions.
2. Line speed: according to the thickness, pipe stander and operation condition.
3. Operation direction: From Right to Left.
4. The color of the line: HUASU standard color.
5. Remains the right to improve the specification of the line, if there is any modification in the future customer will not be informed.
|
No. |
Name & Model |
Quantity |
| 1.0 | Single screw Extruder SJ-90x30 | 1set |
| 2.0 | Die & mould | 6sets |
| 3.0 | Calibrating Vacuum Tank SGZL-160 | 1set |
| 4.0 | Calibrating sleeve | 6sets |
| 5.0 | Spraying Water Tank SGZL—160 | 1set |

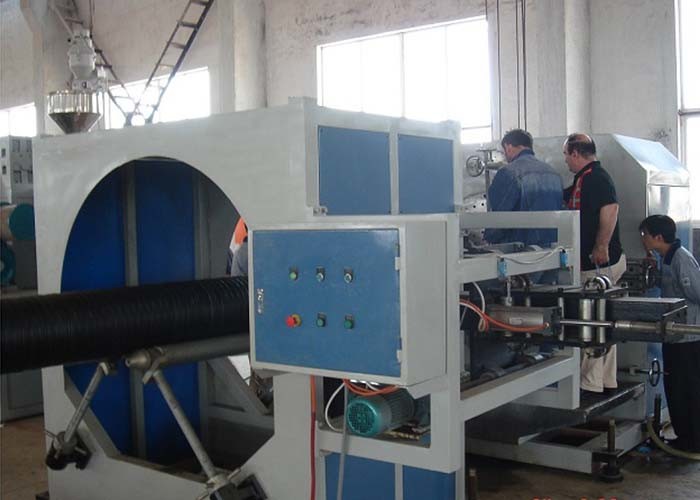

| 6.0 | Winding Forming machine SCRJ-1200 | 1set |
| 7.0 | Winding mould | 6sets |
| 8.0 | Glue Extruder SJ-65/30 | 1set |
| 9.0 | Cutting Machine SCJ-1200 | 1set |
| 10.0 | Overturn Bracket SXT-1200 | 1set |
| 11.0 | PLC Control System PLC | 1set |
