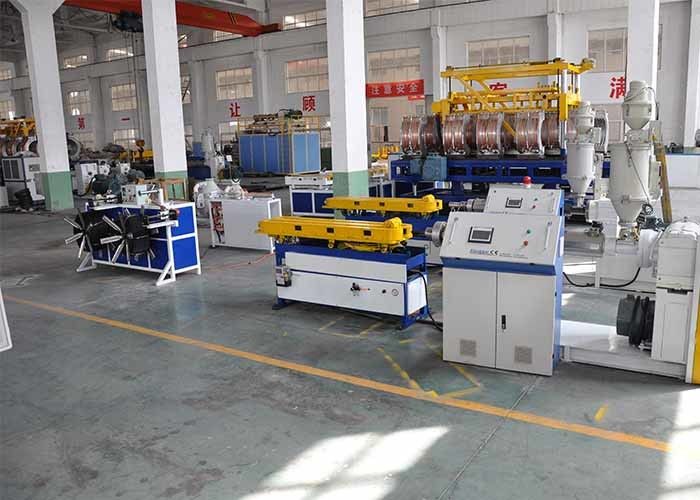

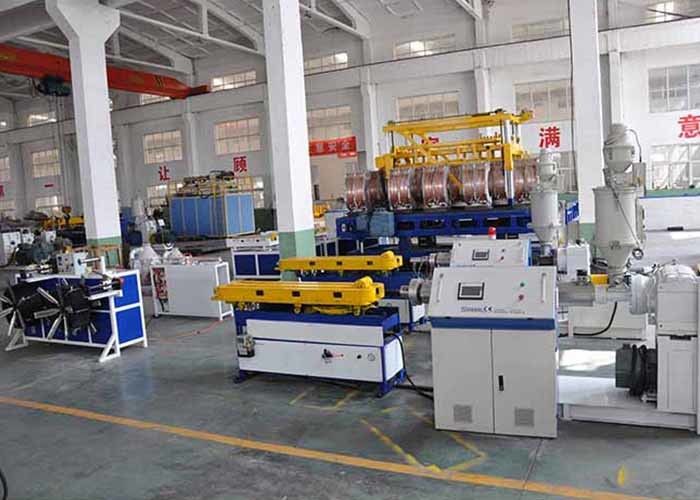

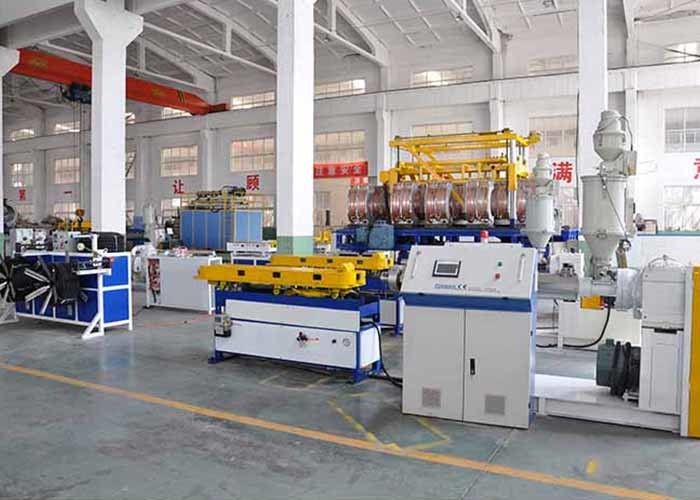

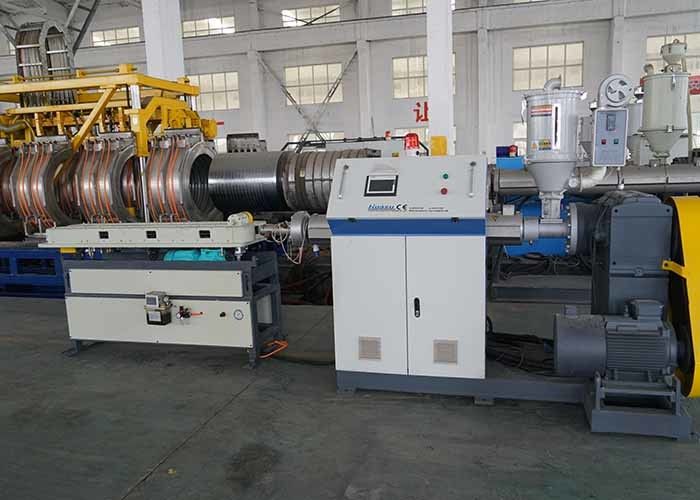

Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H

Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H

  • Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H
  • Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H
  • Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H
  • Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H
Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H
Product Details:
Place of Origin: CHINA
Brand Name: SD HUASU
Certification: CE, ISO9001:2008, UL, QS, GMP
Model Number: SBG 250
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: STANDARD PACKAGE
Delivery Time: 30 WORKING DAYS
Payment Terms: T/T
Supply Ability: 50 SETS/MONTH
Contact Now
Detailed Product Description
Pipe Diameter: ID 16-63 Mm Extruder: SJ 65/30
Output: 40-80kg/h AC Motor: 18.5kw
Inverter: ABB Feeding System: Auto
Total Power: 30kw
High Light:

80kg/H PE Pipe Production Line

,

ID 63mm Pipe Production Line

,

EVA Corrugated Pipe Production Line

Single Wall Corrugated PP PVC PE Pipe Production Line

  • single wall corrugated pp pvc pe pipe production line

    1. raw material: PVC/PE/PP
    2. diameter: 12-63mm
    3. With CE&ISO

    Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic have features of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.
    Feature of Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic
    This series Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.

    Use of Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic
    The Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

    Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic developed by Shandong Huasu adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.
    Standard Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic: can produce two diameters
    or three diameters single wall corrugated pipe in the same mould blocks, which reduce the cost of the
    moulds and reduce the time for changing the mould blocks, increase the efficiency.

    High speed corrugated pipe forming machine: forming blocks running without chain, blocks installed
    directly in the gear groove, rely on 9Mn2V material forming blocks with machining accuracy of 0.01 mm,
    realize high speed stable running.


  • Main Technical Performance
Extruder Motor Max Output Note
SJ-65/30 18.5kw 40-80kg/h



1. The output capacity varies with the materials and the operation conditions.

2. Line speed: According to the thickness, pipe stander and operation condition.

3. Operation direction: From Right to Left.

4. The color of the line: HUASU standard color.

5. Remains the right to improve the specification of the line, if there is any modification in the future customer will not be informed.

  • Pipe list and pressure grade:
NO. Inner Diameter( mm) Outside Diameter ( mm) Remark
1 16
2 63



  • Environment Condition
  • Equipment Configuration
No. Name & Model Quantity
1.0 Single—Screw Extruder SJ-65/30 1set
2.0 Molds 16mm die head mould block 2sets
63mm die head mould block
3.0 Forming Machine 1set
4.0 Winding Machine 1set
5.0 Control System 1set

Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H 0Single Wall Corrugated PP PVC PE Pipe Production Line 80kg/H 1
